Hydraulic / Electric System JAGUAR 8550C TIC
1-22 10/04

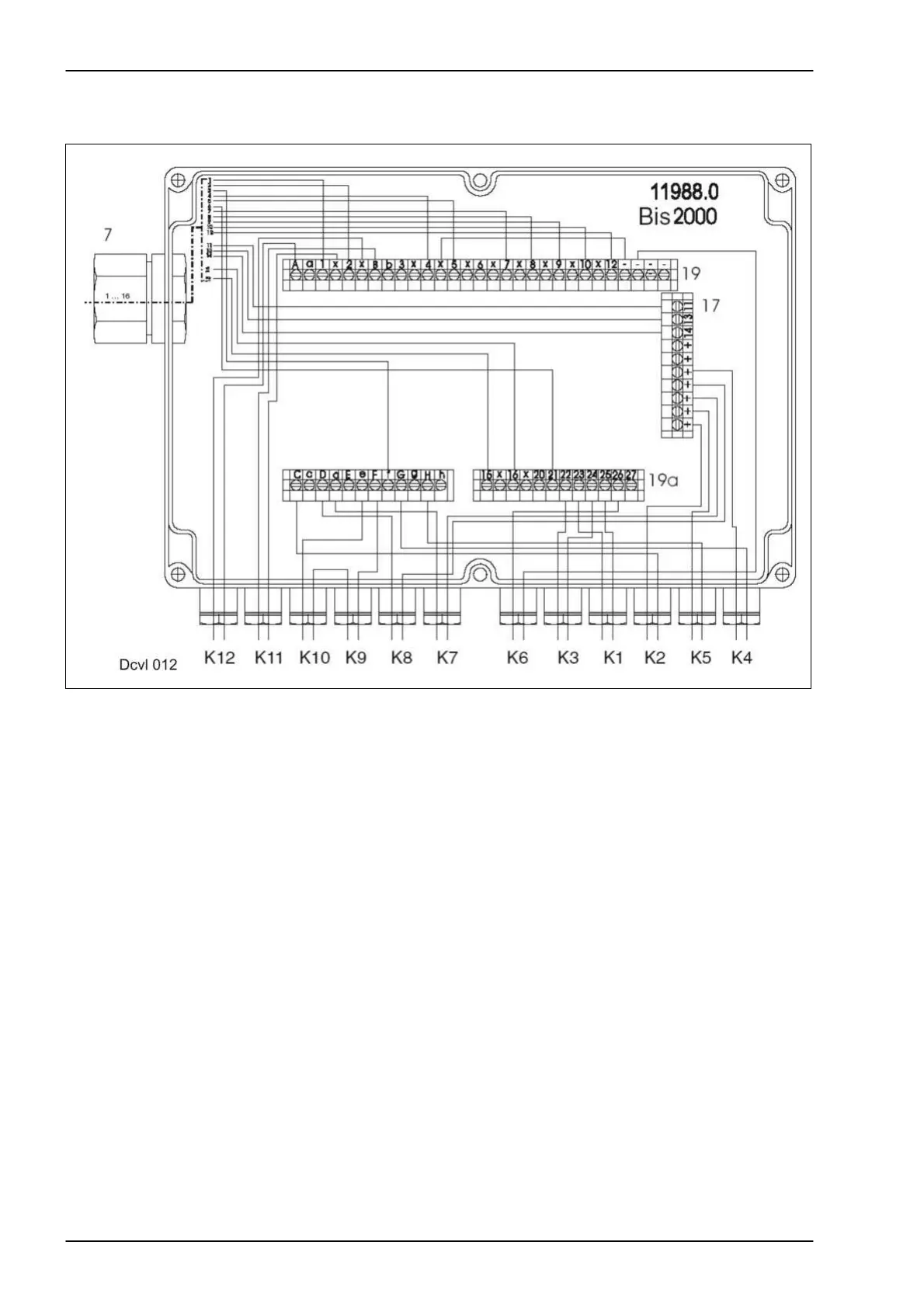

Central terminal
compartment, up to 2000
Differences as compared with central terminal compartment
“from 2000”:
The assignment of inputs 1 to K5 is different.
The connecting terminals on the board have not been changed.
7 Central terminal compartment connector
12 Lock-up valve unit 89 and 99 relay
13 Relay for 4/3 way solenoid valve (item 50A)
14 Relay for 4/3 way solenoid valve (item 50B)
15 Relay for lock-up valve unit 109
17 Terminal strip, plus in central terminal compartment (located above the
relays)
19 Left terminal strip
19a Right terminal strip
K1 Raise/lower right side-mounted mower unit, solenoid valve 74
K2 Raise/lower left side-mounted mower unit, solenoid valve 73
K3 Front mower unit, solenoid valve 72
K4 Right mower unit lock-up valve unit, solenoid valve 89
K5 Left mower unit lock-up valve unit, solenoid valve 99
K6 Front mower unit lock-up valve unit, solenoid valve 109
K7 Fold out side-mounted mower unit, solenoid valve 70
K8 Fold in side-mounted mower unit, solenoid valve 71
K9 140 bar pressure switch, item 96
K10 140 bar pressure switch, item 96
K11 150 bar pressure switch (fold in side-mounted mower units), item 93
K12 150 bar pressure switch (fold out side-mounted mower units), item 95
