Clarion NX404E Quick Start Guide

30 NX404E
English
Quick start guide

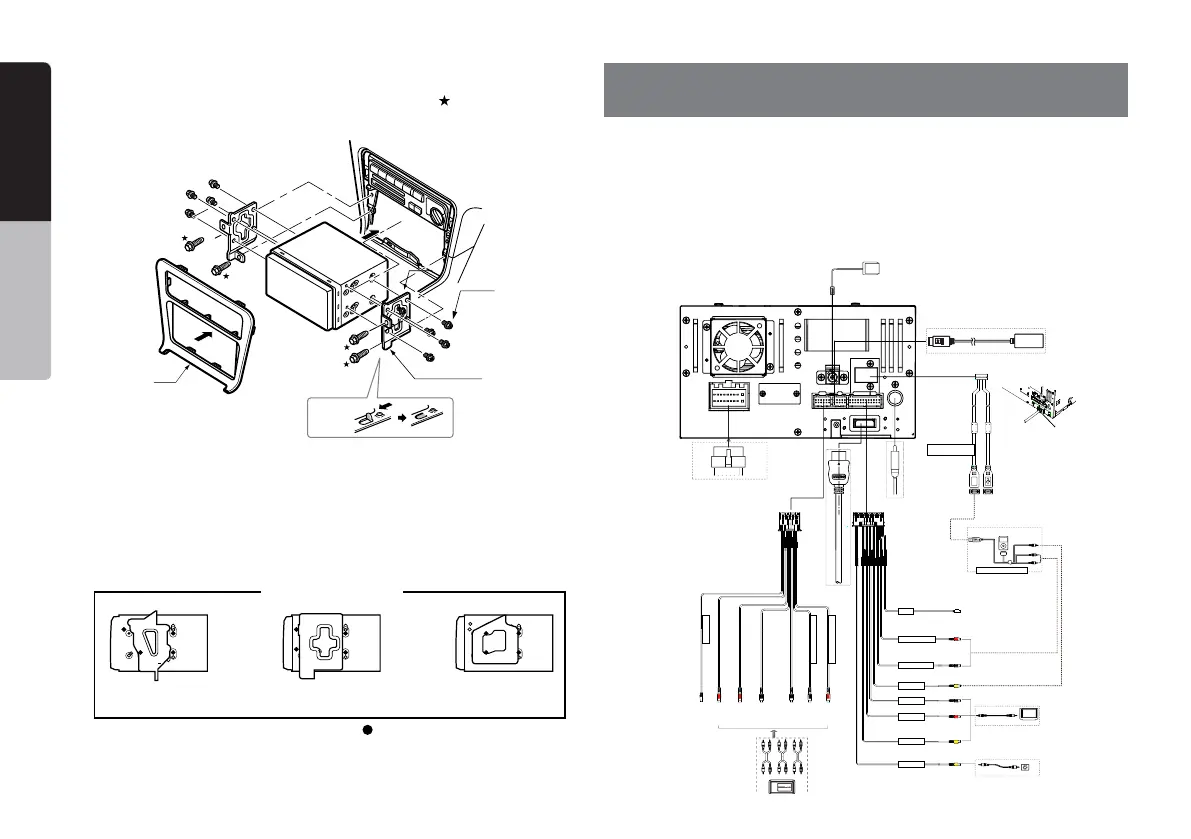

Installing the Main Unit in TOYOTA Vehicle
Install by using parts attached to the vehicle. (Screws marked are attached to the
vehicle.)
8- Hexagonal
screws
(M5x8)
Mounting bracket
(1 pair for the left
and right sides)
Center Panel
(*1)
(*2)
*1. Some panel openings are too small for the unit depending on the vehicle type and
model. In such a case, trim the upper and lower sides of the panel frame by about
0.5 to 1.5 mm so the unit can be inserted smoothly.
*2. If a hook on the installation bracket interferes with the unit, bend and atten it with
a nipper or similar tool.
Typical Mounting Brackets
Example 1
Example 2
Ax the screws to the
marks.
Example 3
Main Unit
WIRE CONNECTION GUIDE
Note:
• Before installing, be sure to disconnect the negative cable of the car
battery.
• In the optional devices, the RCA cables and the Connector cables are
separately-sold items.
• When connect the HDMI cable, be sure to x with the HDMI cable holder
and Machine screw (M2 x 4).
Refer to
page 32
DTX502E or DAB404E
NX404E
GPS
Antenna
iPod/iPhone
Radio Antenna
HDMI CABLE
iPod/iPhone
CCA-750(sold separately)
MIC
AUX2 AUDIO IN RCH
AUX2 AUDIO IN LCH
AUX2
VIDEO IN
REAR LCH
REAR RCH
VIDEO OUT
Red Red White WhiteWhite Red
SWI
SUBWOOFER1
SUBWOOFER2
CAMERA
For Rear zone
Video Out
Rear Vision Camera
Monitor
4-Channel Amplier
Red
White
Yellow
White
Red
Yellow
Yellow
HDMI cable holder
Gray Black Gray Black
Front
Right
Front
Left
Rear
Right
Rear
Left
Figure 6
NX404E_QSG 20131205_EN.indd 30 2014-2-14 16:49:04
