Clarion NX404E

28 NX404E
English
1. Before Starting
1. This set is exclusively for use in cars with a negative ground 12 V power supply.
2. Read these instructions carefully.
3. Besuretodisconnectthebattery“-”terminal
before starting. This is to prevent short circuits
during installation. (Figure 1)
2. Package Contents
Mainunit ........................................................................................................................1
Wiringharness ...............................................................................................................1
GPSantenna .................................................................................................................1
ClampforGPSantenna'scable .....................................................................................3
DoublefacetapeforGPSAntenna ................................................................................1
Owner’smanual(CD-R) .................................................................................................1
CONTENTS
1. BeforeStarting ........................................................................................................26
2. PackageContents ...................................................................................................26
3. GeneralCautions ....................................................................................................26
4. CautionsOnInstallation ..........................................................................................26
5. InstallingTheMainUnit ...........................................................................................27

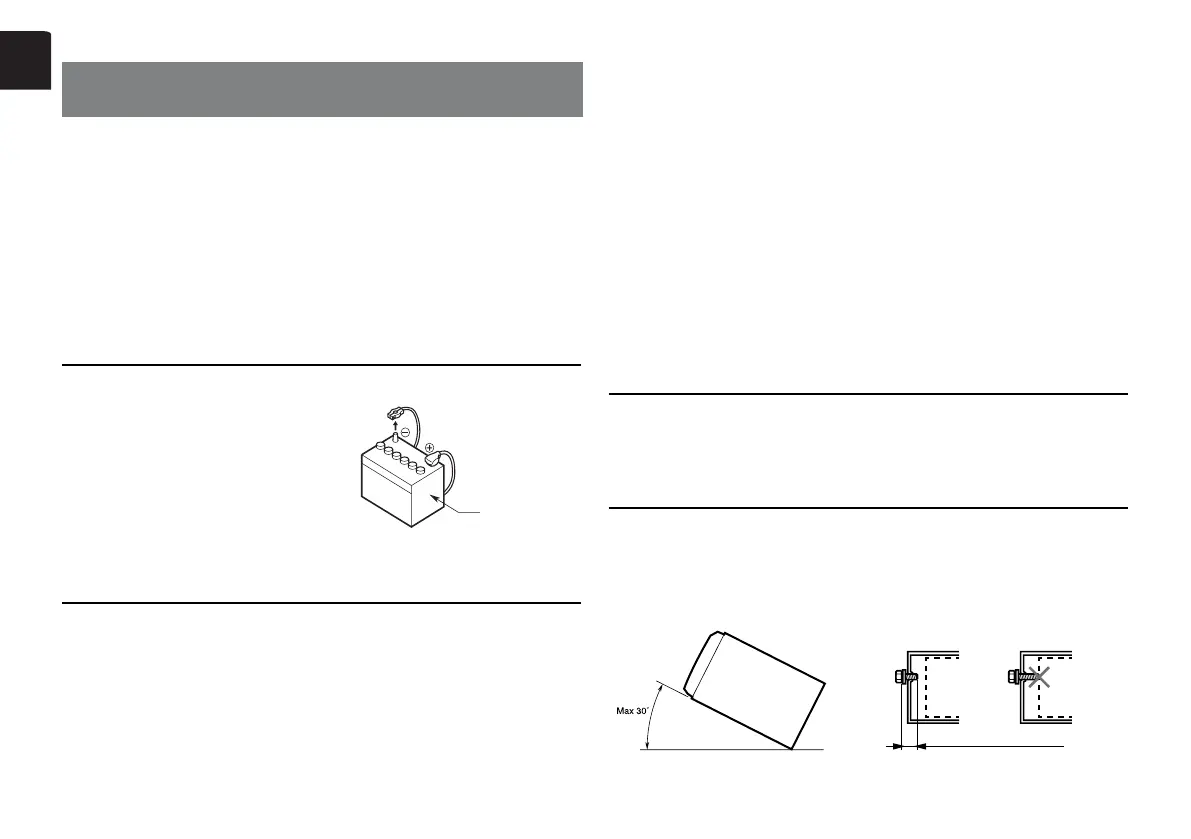

Figure 1
Car battery
QuickStartGuideand
Installationmanual .........................................................................................................1
Warranty card............................................................ .....................................................1
HDMIcableholder................................................................ .........................................1
Machinescrew(M2x4)................................................................................ .................2
RCAoutputcable....................................................................................... ....................1
Electrotap ......................................................................................................................2
Flushmountbolts ..........................................................................................................8
HexagonHeadScrew ....................................................................................................8
AVcable .........................................................................................................................1
SWIcable ......................................................................................................................1
3. General Cautions
1. Donotopenthecase.Therearenouser-serviceablepartsinside.Ifyoudropanythingintothe
unit during installation, consult your dealer or an authorized Clarion service center.
2. Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol etc.
Fortoughdirt,applyalittlecoldorwarmwatertoasoftclothandwipeothedirtgently.
4. Cautions on Installation
1. Prepare all articles necessary for installing the source unit before starting.
2. Install the unit within 30° of the horizontal plane. (Figure 2)
3. If you have to do any work on the car body, such as drilling holes, consult your car dealer
beforehand.
4. Use the enclosed screws for installation. Using other screws can cause damage. (Figure 3)
NX404E
Figure 2
Figure 3
Chassis
Chassis
Damage
Max. 8 mm (M5 screw)
INSTALLATION
