Clarion NX502E User Manual

21
English
NX502E
()
0

1

2
♪①
♪②

5
♪⑧
♪⑦

6

7
♪⑨
♪③

3

4
♪④
♪⑤
♪⑥

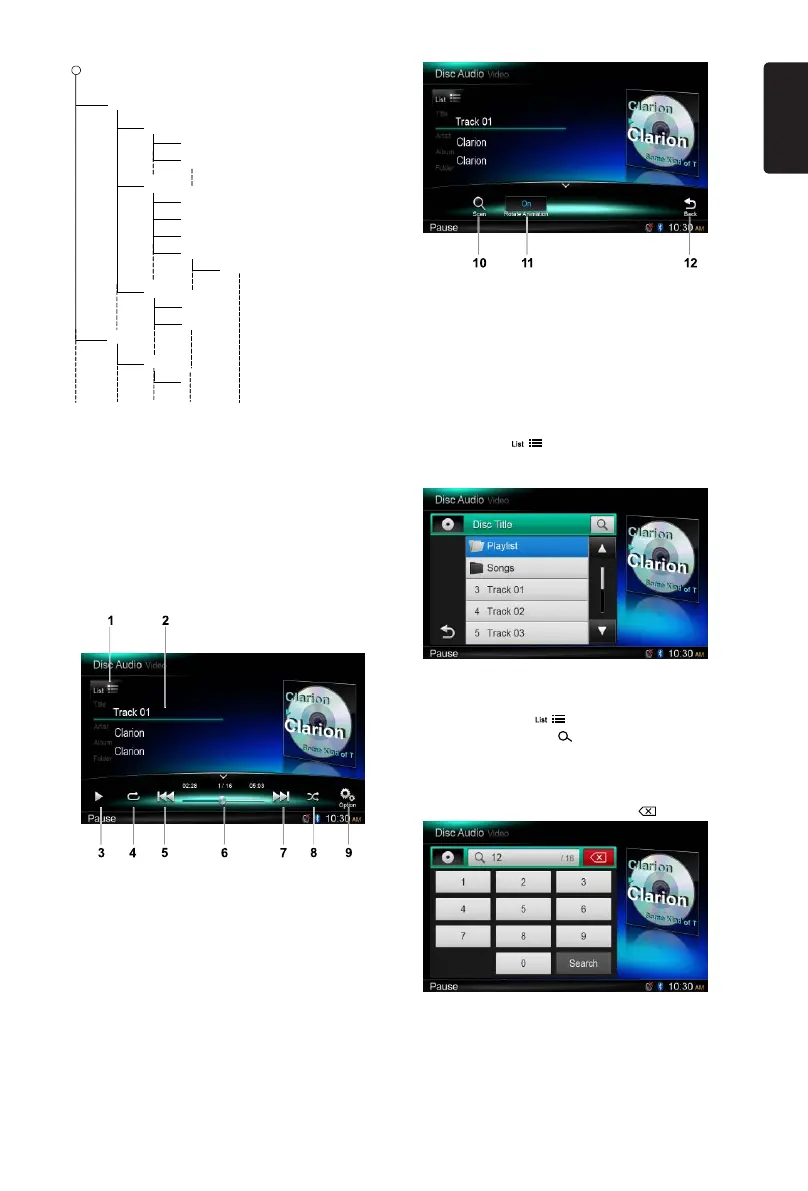

Layer1 Layer 2 L ayer 3 Layer 4 Layer5
○ Root Folder
 Folder
♪ File
The player will only recognize three folder
levels and does not display folders containing
other folders. In the example above, the unit
will display folders 2, 3, 5 and 7, but 1 and 6
since they do not contain others.
Playback menu
Touch the bottom half of screen to show
operation bar.
1. Show folder/le list (Browse)
2. Folder/Title/Artist/Album information
3. Play/Pause
4. Repeat play
5. Previous track
Fast reverse (long press)
6. Progress bar
7. Next track
Fast forward (long press)
8. Random play
9. Show other options
10. Scan play
11. Rotate the album image
12. Back to main operation bar
Folder Select
This function allows you to select a folder
containing MP3/WMA les and start playing
from the rst track in the folder.
Touch the [
] button on the upper left of
the screen to show folder/file list. You can
select a folder or le by touching it.
Search Function
1. Touch the [ ] button to show folder/
le list. Touch [ ] button to enter search
menu.
2 Input numbers by touching digit buttons,
then touch [Search] to begin searching.
To delete numbers, touch [ ] button.
Other operations about playing MP3/WMA
are same as CD Player mode.

Clarion NX502E Specifications

General

MP3 playback	Yes
CD-R playback	-
Audio formats supported	MP3, WMA
Video formats supported	MPEG4
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, DUN, HFP, HSP, OPP, PBAP
USB ports quantity	1
Headphone connectivity	3.5mm
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	4.0 channels
Maximum power per channel	50 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, MW
Preset stations quantity	22
Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
Compatible memory cards	SD
Menu languages	CZE, DEU, DUT, ENG, ESP, FRE, GRE, ITA, POL, SWE
Key illumination color	Multi
