2.2 Map screen
2.2.1 Navigating on the map

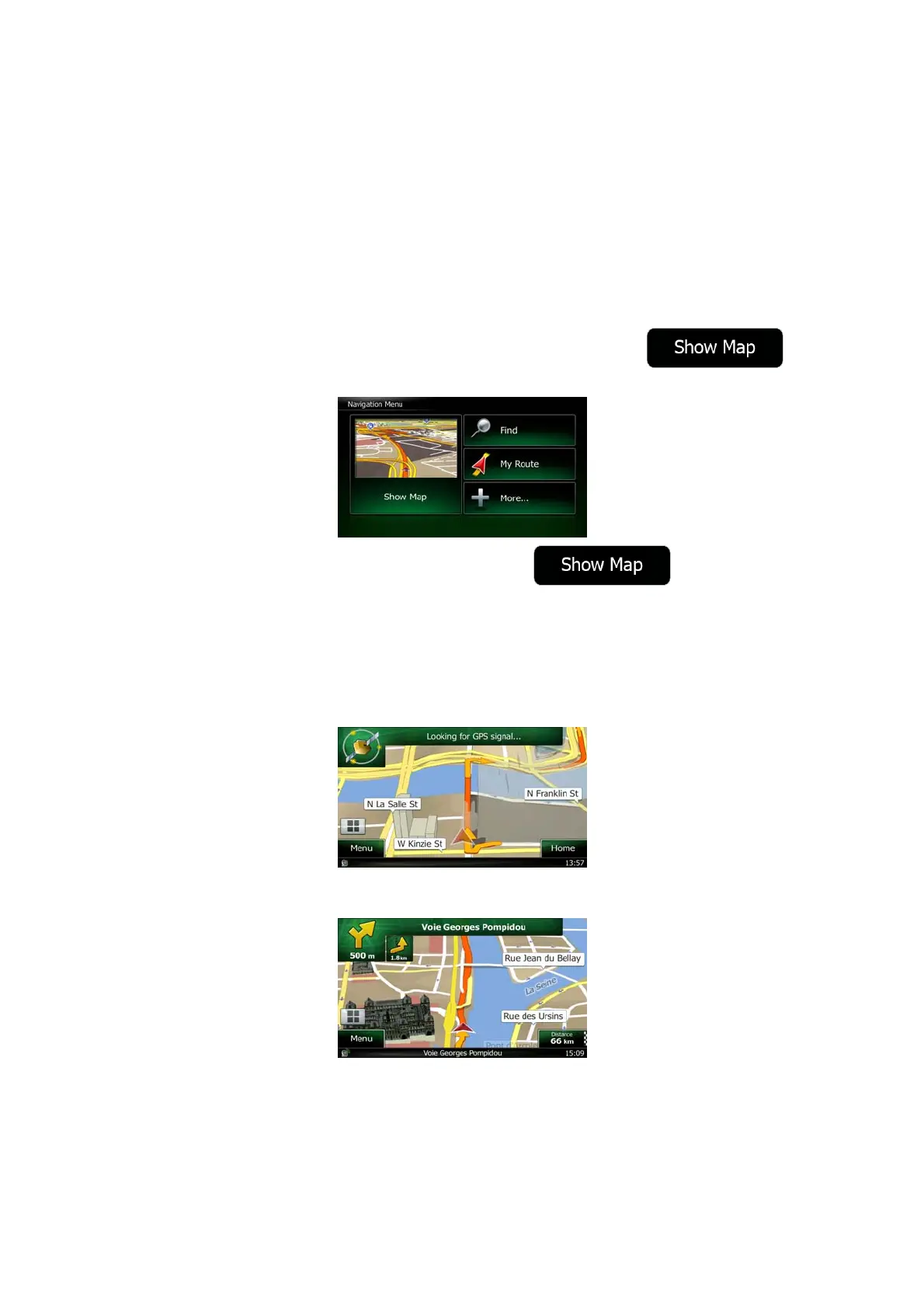

A small live map is displayed on the Navigation Menu, as a part of the
button.
To enlarge this small map and open the Map screen, tap
.
This map shows the current position (the Vehimarker, a red arrow by default), the
recommended route (an orange line), and the surrounding map area.
When there is no GPS position, the Vehimarker is transparent. It shows your last known
position.
You see coloured dots circling around a satellite symbol in the top left corner. The more green
dots you see, the closer you are to get the valid GPS position.
When GPS position is available, the Vehimarker is displayed in full colour, now showing your
current position.
There are screen buttons and data fields on the screen to help you navigate. During
navigation, the screen shows route information.

Clarion NX502E Specifications

General

MP3 playback	Yes
CD-R playback	-
Audio formats supported	MP3, WMA
Video formats supported	MPEG4
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, DUN, HFP, HSP, OPP, PBAP
USB ports quantity	1
Headphone connectivity	3.5mm
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	4.0 channels
Maximum power per channel	50 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, MW
Preset stations quantity	22
Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
Compatible memory cards	SD
Menu languages	CZE, DEU, DUT, ENG, ESP, FRE, GRE, ITA, POL, SWE
Key illumination color	Multi
