Clarion NX502E User Manual

35
English
NX502E
Access navigation mode
1. Slide the cover of the card slot located on
the bottom left of the panel to the right.
Insert a map card into the mini card slot.
2. To remove the card, you should rst select
another source or turn off the power, in
order to avoid damaging the card. Press to
pop it out, then take off the card. Close the
cover to the left.
3. Press [ ] button on panel to visit
Navigation mode.
* The navigation operations depend on your
map, it may be different from the following
content.

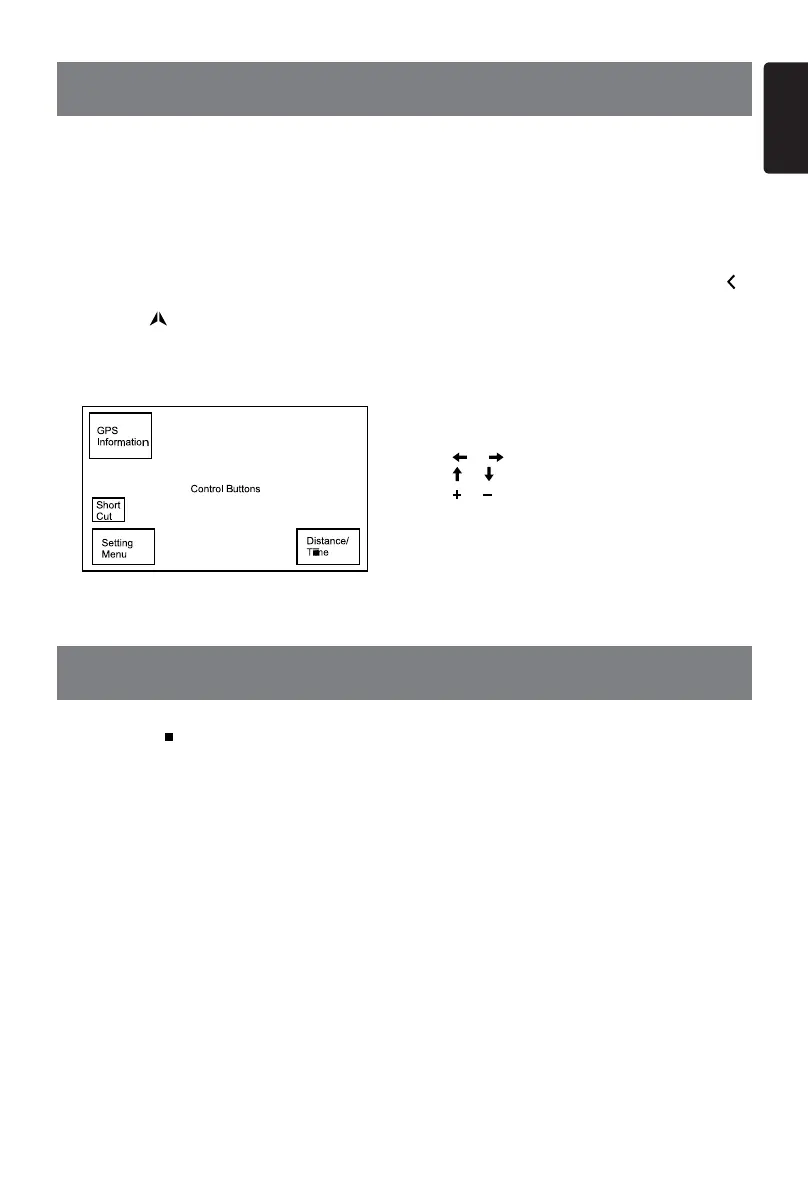

Control buttons
1. Touch top left corner of the screen to show
GPS informations. Touch [Back] to return.
2. Touch bottom left corner of the screen
to enter Navigation menu. Touch [Show
Map] to return.
3. Touch middle left of the screen to show
shortcuts of general functions. Touch [ ]
button to hide.
4. Touch bottom right corner of the screen
to show Distance/Time Left/Arrival Time.
Touch it again to hide.
5. Touch the blank area to show control
buttons.
Top left corner: Plane/three-dimensional
Top right corner: Cursor location.
[ ]/[ ]: Move left/right
[ ]/[ ]: Move up/down
[
]/[ ]: Enlarge/reduce the map
[Back]: Hide the buttons.
[More]: Show more informations.
[Select]: Select the route.
Long press [
ALL ] button to enter main
source menu, then select [AUX 1] to visit
front auxiliary device, and touch [AUX 2] to
enter rear auxiliary device.
If [AUX 1] or [AUX 2] is not on the current
source menu, touch [-] on the bottom of the
screen, then hold the center of screen and
drag left/right to show more icons.
13. NAVIGATION OPERATION
14. AUX OPERATION

Clarion NX502E Specifications

General

MP3 playback	Yes
CD-R playback	-
Audio formats supported	MP3, WMA
Video formats supported	MPEG4
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, DUN, HFP, HSP, OPP, PBAP
USB ports quantity	1
Headphone connectivity	3.5mm
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	4.0 channels
Maximum power per channel	50 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, MW
Preset stations quantity	22
Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
Compatible memory cards	SD
Menu languages	CZE, DEU, DUT, ENG, ESP, FRE, GRE, ITA, POL, SWE
Key illumination color	Multi
