5. MAIN MENU OPERATION
Long press [ ALL ] button on the PANEL to
show main source menu.
Short press [
ALL ] button to show Short
cut menu.

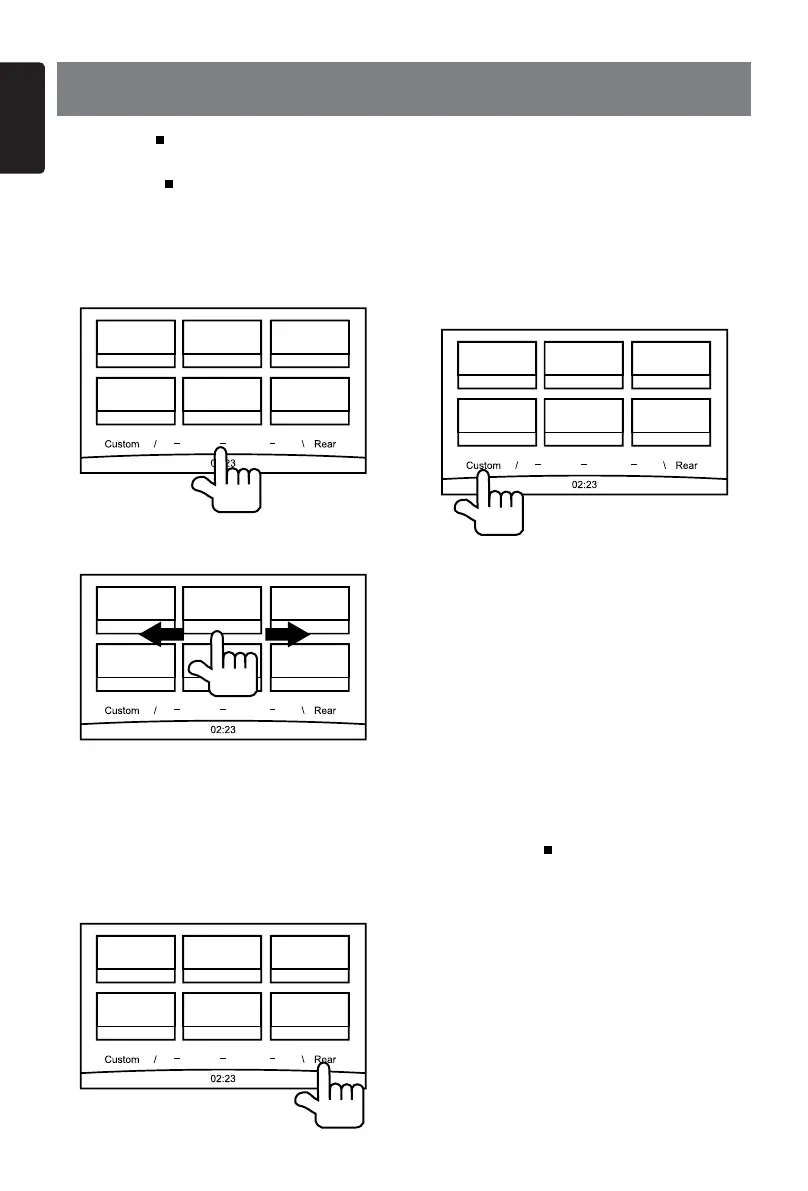

Front Zone Source
Touch [-] on the bottom of screen to show
front zone sources.
Change page by dragging left or right or
touching other two [-] buttons.
Touch the icons on the screen to enter
corresponding work mode, such as Disc
mode, Tuner mode, Telephone mode, etc.
Touch [AudioOff] to mute the volume.
Rear Zone Source
Touch [Rear] on the bottom of screen to
show rear zone sources.
Touch the icons on the screen to enter
corresponding work mode, such as Disc
mode, USB mode, iPod mode, etc.
Touch [2ZoneOff] to turn off the rear zone
monitor.
Custom Setting
Touch [Custom] on the bottom of screen to
show custom setting menu.
[Settings]: Touch the icon to enter system
setting menu. (see “System Setup”)
[BeatEQ]: Touch the icon to enter equalizer
setting menu. (see “System Setup”)
[ShortCut]: Touch the icon to enter Shortcut
setting menu. Hold the desired icon for more
than 2 seconds until it’s activated, then drag
it to the bottom. The name will appear on the
bottom.
• Hold the center of the screen and drag left
or right to show more icons.
• You can make total 5 shortcuts.
• You can access the shortcut list by
pressing the [ ALL ] button.
[Illumi Color]: Touch the icon to enter
Illumination color setting menu. (see “System
Setup”)
[Wall p aper]: Touch the icon to enter
Wallpaper setting menu. (see “System
Setup”)
[Monitor Off]: Touch the icon to turn off the
monitor.
To turn on the monitor, touch the monitor
again.

Clarion NX502E Specifications

General

MP3 playback	Yes
CD-R playback	-
Audio formats supported	MP3, WMA
Video formats supported	MPEG4
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, DUN, HFP, HSP, OPP, PBAP
USB ports quantity	1
Headphone connectivity	3.5mm
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	4.0 channels
Maximum power per channel	50 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, MW
Preset stations quantity	22
Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
Compatible memory cards	SD
Menu languages	CZE, DEU, DUT, ENG, ESP, FRE, GRE, ITA, POL, SWE
Key illumination color	Multi
