Clarion NX505E User Manual

48 NX505E
English
MP3 files
●
ID3-Tag: Display of Ver1.x, 2.x album
(displayed as Disc Title), track (displayed
as Track Title) and artist (displayed as
Track Artist) are supported.
●
Emphasis: Supported only when playing
44.1 kHz files
●
Playable sampling frequencies
MPEG1: 44.1 kHz/48 kHz/32 kHz
MPEG2: 22.05 kHz/24 kHz/16 kHz
MPEG2.5: 11.025 kHz/12 kHz/8 kHz
✽
In terms of audio quality, 44.1 kHz or
higher is recommended.
●
Playable bitrates
MPEG1: 32 kbps to 320 kbps/VBR
MPEG2: 8 kbps to 160 kbps/VBR
MPEG2.5: 8 kbps to 160 kbps/VBR
✽
In terms of audio quality, 128 kbps or
higher is recommended.
●
Jumping sometimes occurs with files
recorded at the following sampling
frequencies and bitrates:
Sampling frequency: 16 kHz or less
Bitrate: 8 kbps or less
●
MP3i (MP3 interactive) and mp3 PRO
format are not supported.
●
Skipping sometimes occurs depending
the data content of the MP3 file.
●
Files with a short recording time
sometimes cannot be played.
●
When discs/microSD cards/USB memory
contain large data other than music data,
tunes sometimes cannot be played.
●
Display of the play time sometimes
deviates when low bitrate files are
played, or fast-forwarded or rewound.
●
When TAG information is changed in TAG
editing software other than Windows
Media Player or iTunes
®
, TAGs are
sometimes not displayed properly.
WMA files
●
Characters in album names sometimes
are corrupted depending on the software
on the PC where the names were made.
●
WMA9 Professional, WMA9 Voice and
WMA9 lossless format are not supported.
●
When discs/microSD cards/USB memory
contain large data other than music data,
tunes sometimes cannot be played.
●
Display of the play time sometimes
deviates depending on the data content
of the WMA file. Also, skipping or
jumping sometimes occurs partially or
noise sometimes occurs depending on
the bitrate.
●
The sampling frequency and bitrates
that can be played differ according to
the recording version. Refer to the table
below.
Bitrate
(kbps)
Discs
microSD cards/
USB memory
Sampling frequency (kHz)
320 44.1 -
256 44.1 -
192 48/44.1 44.1
160 48/44.1 44.1
128 48/44.1 44.1
96 48/44.1 44.1
80 44.1 44.1
64 48/44.1 44.1/32
48 44.1/32 44.1/32
44 - 32
Bitrate
(kbps)
Discs
microSD cards/
USB memory
Sampling frequency (kHz)
40 32 32
36 - 32
32 44.1/
32/22.05
48/44.1/
32/22.05
22 22.05 32/22.05
20 44.1/32/
22.05/16
44.1/32/
22.05/16
16 22.05/16 22.05/16
12 16/8 16/8
10 16/11.025 16/11.025
8 11.025/8 11.025
✽
/8
✽
6 8 8
✽
5 8 8
✽
VBR 44.1 48/44.1
✽
Jumping sometimes occurs.
Folder structure of discs
The maximum number of folders, files and
tracks on discs are as follows:
Folders: 255 (including root)
Files: 512
Tracks: 255 per folder

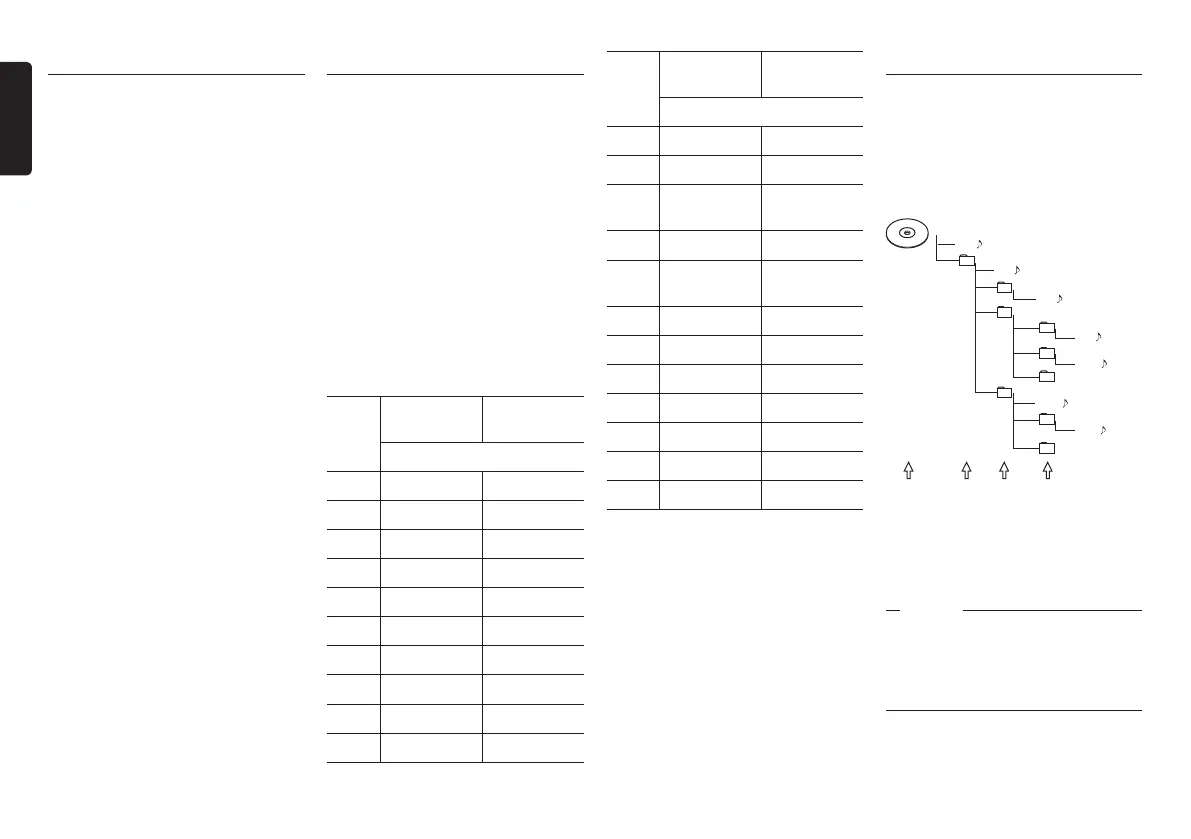

The following is an illustration of a disc
recorded with MP3 and WMA files (example,
layers 1 to 4 of the folder hierarchy).
(1)-- Song A
(2)
(3)--
Song B
(4)
(5)--
Song C
(6)
(7)
(8)--
Song D
(9)
(10)--
Song E
(11)
(12)
(13)--
Song F
(14)
(15)--
Song G
(16)
Level 1
(Root)
Level 2 Level 3 Level 4
Folders without tunes are skipped to
determine the play order.
The play order in the case of the above
figure becomes (1)

(3)

(5)

(8)

(10)

(13)

(15).
Notice
•Inthecaseofdiscs,playingfilesdownto
eightlayers(includingtherootdirectory)
issupported,thoughitmaytaketime
untilplaystartswhenthedischaslotsof
folders.

Clarion NX505E Specifications

General

Widescreen	-
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, FM
Built-in camera	No
Lifetime map updates	Roads change, but with Lifetime Map Updates your map will always be up to date. Start fresh every few months by downloading a new edition of the industry's most accurate map. New editions are issued four times per year.
Storage media type	Memory card
Compatible memory cards	MicroSD (TransFlash)
Product color	Black

Weight and Dimensions

Depth	157 mm
Width	178 mm
Height	100 mm
Weight	- g
