Clarion NX505E User Manual

2.3.3.2 Turn preview and Next street

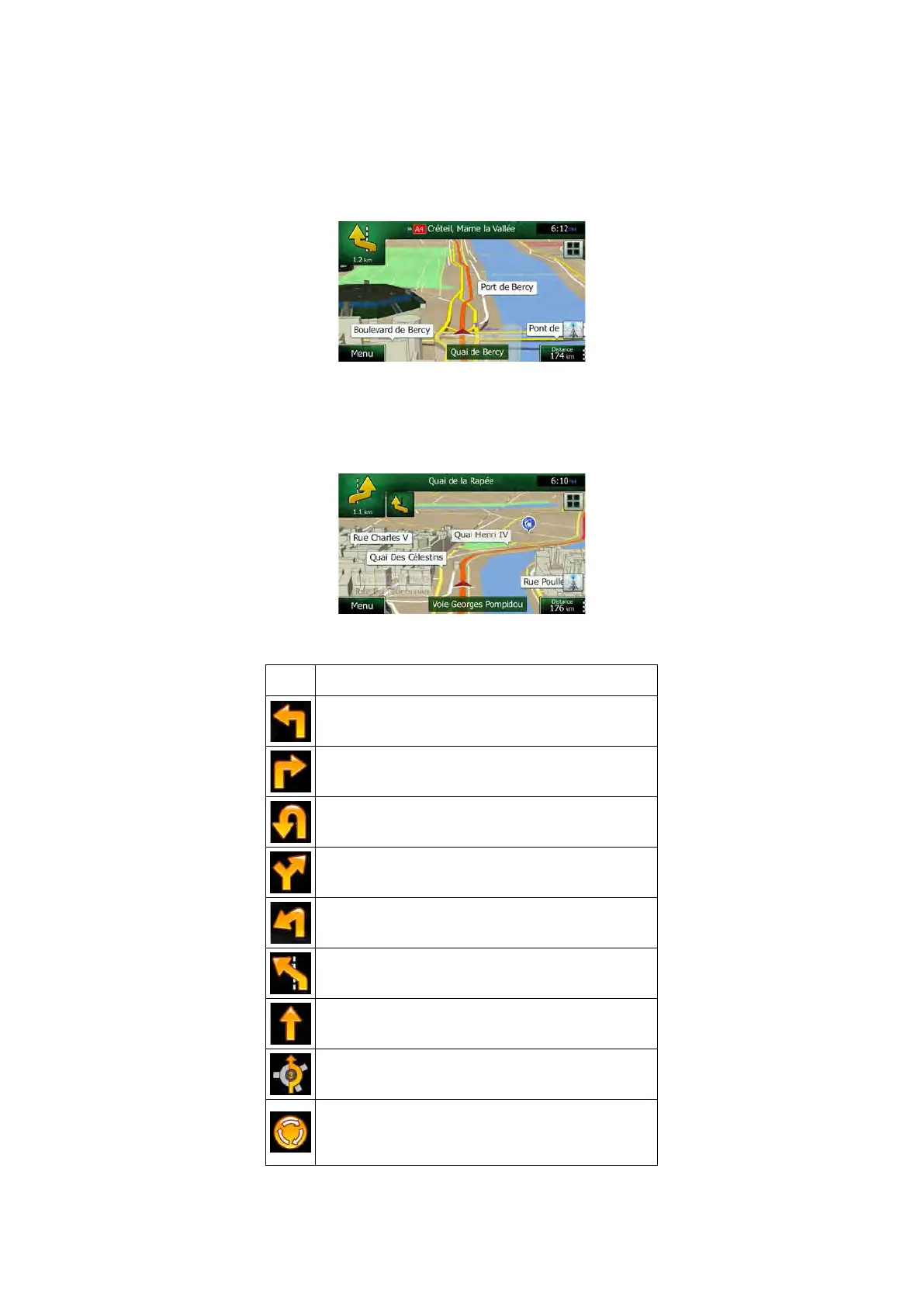

When navigating a route, the top section of the Map screen shows information about the next
route event (manoeuvre) and the next street or the next city/town.
There is a field in the top left corner that displays the next manoeuvre. Both the type of the
event (turn, roundabout, exiting motorway, etc.) and its distance from the current position are
displayed.
A smaller icon shows the type of the second next manoeuvre if it is near the first one.
Otherwise, only the next manoeuvre is displayed.
Most of these icons are very intuitive. The following table lists some of the frequently shown
route events. The same symbols are used in both fields:
Icon
Description
Turn left.
Turn right.
Turn back.
Bear right.
Turn sharp left.
Keep left.
Continue straight in the intersection.
Go left on the roundabout, 3rd exit (next
manoeuvre).
Enter roundabout (second next manoeuvre).
NX505E English 15

Clarion NX505E Specifications

General

Widescreen	-
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, FM
Built-in camera	No
Lifetime map updates	Roads change, but with Lifetime Map Updates your map will always be up to date. Start fresh every few months by downloading a new edition of the industry's most accurate map. New editions are issued four times per year.
Storage media type	Memory card
Compatible memory cards	MicroSD (TransFlash)
Product color	Black

Weight and Dimensions

Depth	157 mm
Width	178 mm
Height	100 mm
Weight	- g
