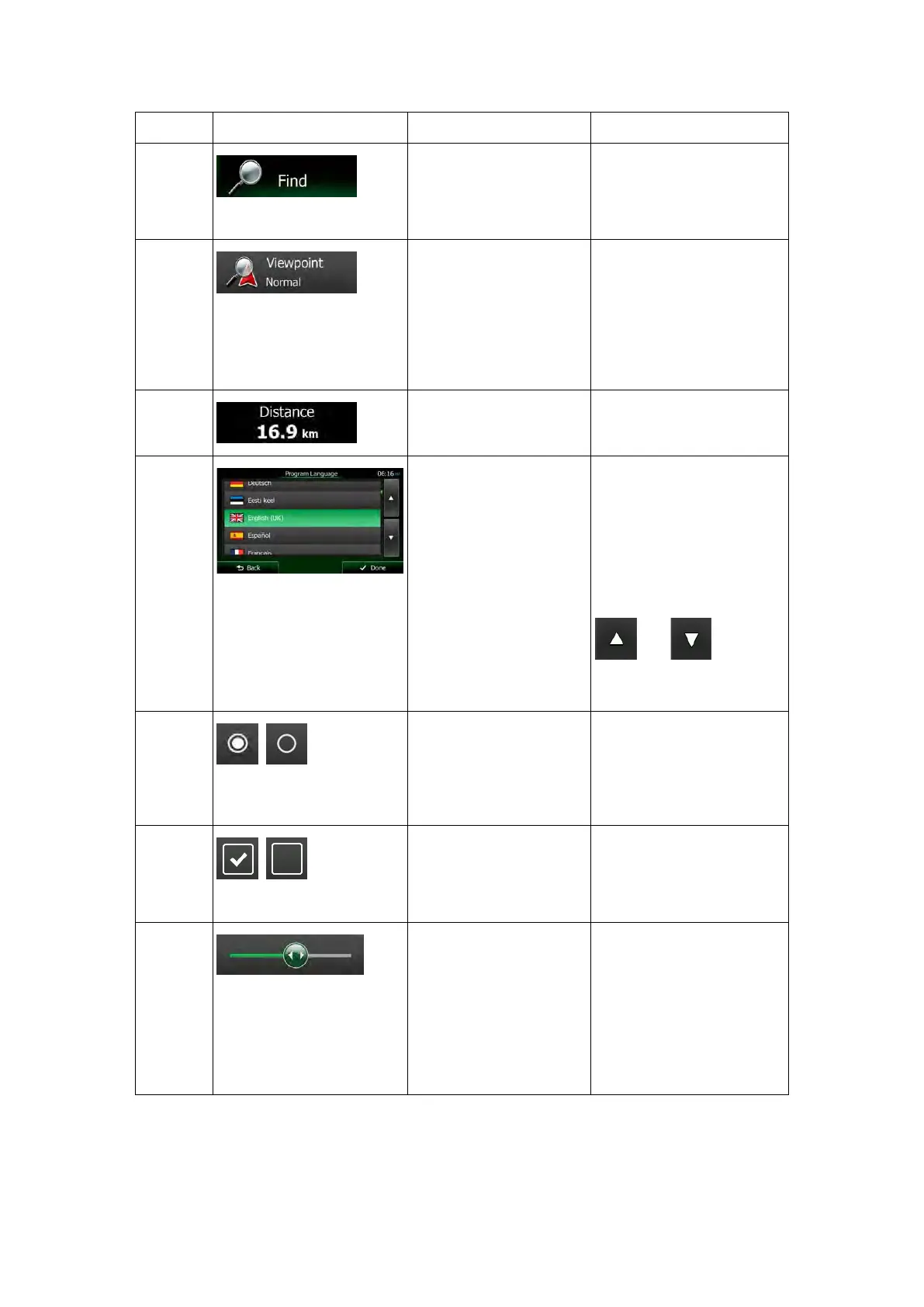

Clarion NX505E User Manual

Type
Example
Description
How to use it
Button
Tap it to initiate a
function, to open a new
screen, or to set a
parameter.
Tap it once.
Button
with
value
Some buttons display the
current value of a field or
setting. Tap the button to
change the value. After
the change, the new
value is shown on the
button.
Tap it once.
Icon
Shows status
information.
Some icons also function
as a button. Tap them
once.
List When you need to select
from several options,
they appear in a list.
Grab the list anywhere and
slide your finger up or
down. Depending on the
speed of the sliding, the list
will scroll fast or slow, only
a bit or till the end.
Alternatively, move
between pages with the
and buttons
and tap the value that you
want.
Radio
button
When there are only a
few choices, radio
buttons may be used
instead of lists. Only one
value can be selected.
Tap one of the buttons to
select a new value.
Switch
When there are only two
choices, a checkmark
shows whether the
feature is enabled.
Tap it to turn the switch on
or off.
Slider
When a feature can be
set to different values in
a range, Clarion Mobile
Map shows an indicator
on a gauge that displays
and sets the value.
• Drag the handle to
move the slider to
its new position.
• Tap the slider where
you want the handle
to appear; the
thumb jumps there.
NX505E English 9

Clarion NX505E Specifications

General

Widescreen	-
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, FM
Built-in camera	No
Lifetime map updates	Roads change, but with Lifetime Map Updates your map will always be up to date. Start fresh every few months by downloading a new edition of the industry's most accurate map. New editions are issued four times per year.
Storage media type	Memory card
Compatible memory cards	MicroSD (TransFlash)
Product color	Black

Weight and Dimensions

Depth	157 mm
Width	178 mm
Height	100 mm
Weight	- g
