Variable Tilt Feature
The ESX truck is equipped with a tilt sensor and upright height limit
switch that sends signals to the truck controls. These inputs are
used to control the variable tilt features. The full and restricted tilt
ranges will differ depending on the Maximum Fork Height (MFH) of
the upright. The maximum restricted back tilt is stamped on the truck
capacity plate.
718067
V
RF
RB

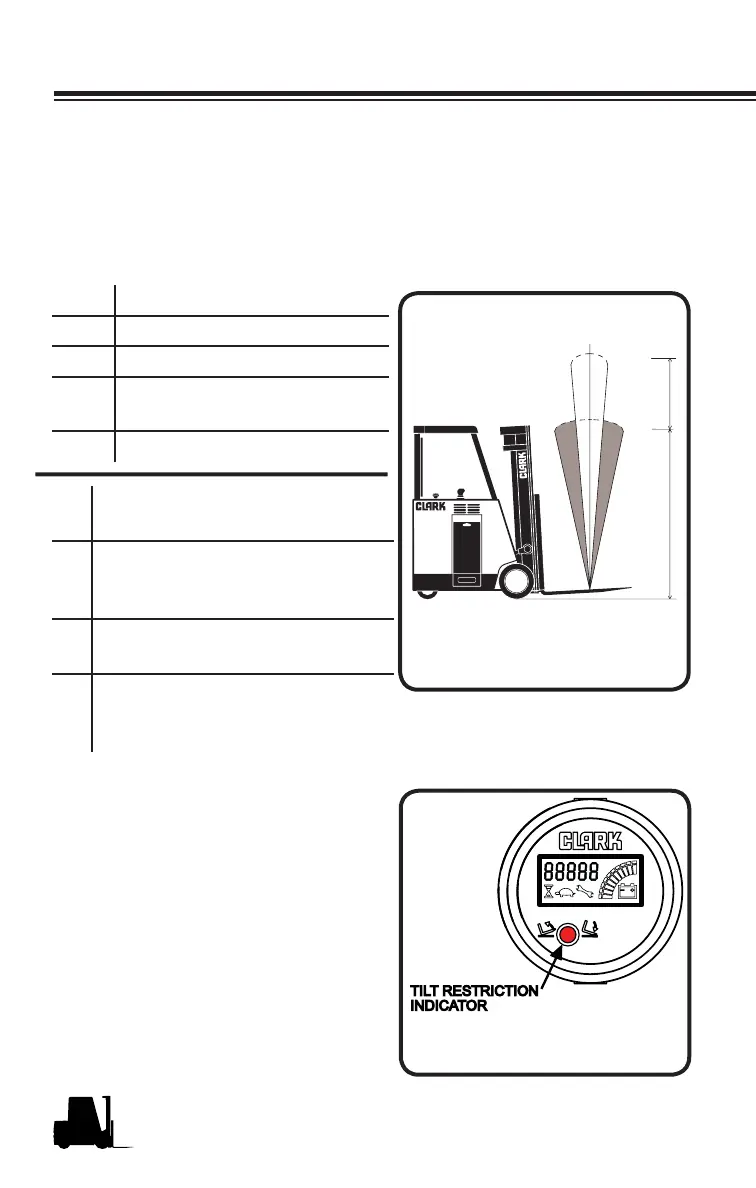

FB FF
Full
Range
Restricted
Range
Forks Low
Forks High
FB= Full Back Tilt Position
RB= Restricted Back Tilt Position
V= Vertical
RF= Restricted Forward Tilt Posi-
tion
FF= Full Forward Tilt Position
1) Fast tilt speeds when forks are
low
2) Full range of tilt when forks
are low and restricted (limited)
range of tilt when forks are high
3) Fork Level - See full description
on following page.
4)
Lift is disabled above free-lift
if tilt is outside of Restricted
Range.
TILT RESTRICTION
INDICATOR
718068
Tilt Restriction Indicator
A red indicator on the dash display
will be illuminated any time the
upright is outside of the tilt restric-
tion area. Tilt the upright forward or
backward, to the vertical position,
to turn the indicator OFF and have
the ability to raise the forks to the
maximum height.
