Section 3. Operator Compartment and Controls
3.11
MADE IN USA For other capacities consult Clark Material Handling Co., Lexington, KY
From the factory this truck meets ASME B56.1
2827170
Capacities are with attachment
or forks with upright in
vertical position.
Capacities are for centered
or shifted loads, as
indicated by dimension D.
Model Type
Attachments
Rearward Tilt
deg
Serial No.
in
mm
in
mm
in
mm
lb
kg
lb
kg
lb
kg
mm
in
in
mm
Truck Weight lb or kg
Max Battery lb or kg
Electric truck is without Battery.
D/Tire Width
in mm
D/Tire Type
Min Battery lb or kg
Volts Battery Type
Max. Amp Hrs.
Operator Safety Warning Decal
1. Truck model num-
ber or registered
name.
2. Truck serial num-
ber—An identi-
fication number
assigned to this
particular truck
and should be
used when re-
questing informa-
tion or ordering
service parts for this truck from your authorized CLARK dealer.
The serial number is also stamped on the frame.
3. Attachment description (if any installed)—The user must see that the
truck is marked to identify the attachment(s), including the weight of
the truck/attachment combination and truck capacity with the attach-
ment.
4. Capacity rating, load center, and lifting height data—Shows the
maximum load capacity of this truck with relation to load centers
and fork heights (see diagram on plate). Personal injury and dam-
age to the truck can occur if these capacities are exceeded. Do
not exceed the maximum capacity specifi ed.
5. Truck weight—The approximate weight of the truck without a load
on the forks. This weight plus the weight of the load must be con-
sidered when operating on elevators, elevated fl oors, etc. to be
sure they are safe.
CAUTION
When attachments are added or if the truck is modifi ed,
the capacity of the truck may be affected. Contact your
authorized CLARK dealer for a new nameplate showing
the revised capacity.
IMPORTANT
OSHA requires prior written approval from the manu-
facturer before any modifi cations affecting capacity or
safety may be made.

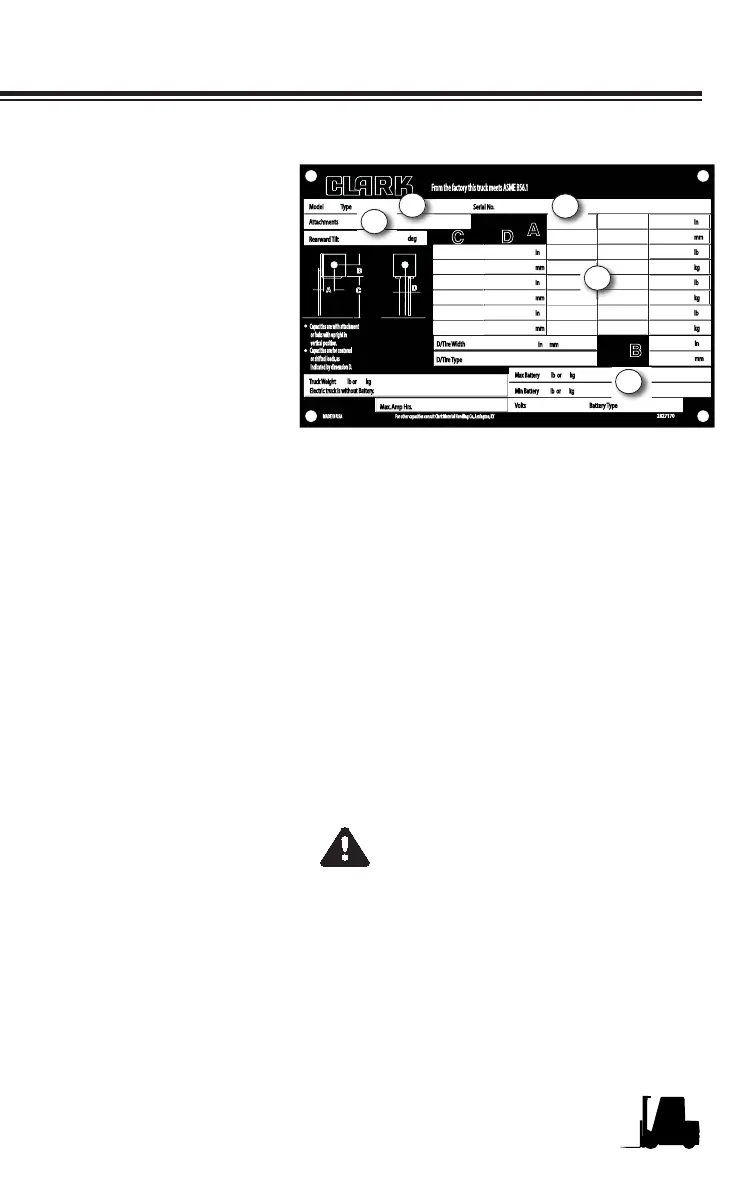

Truck Data and Capacity Plate
2
1
3
4
5
