Clarke
®
Operator's Manual - Encore S17/L17 Page -11-

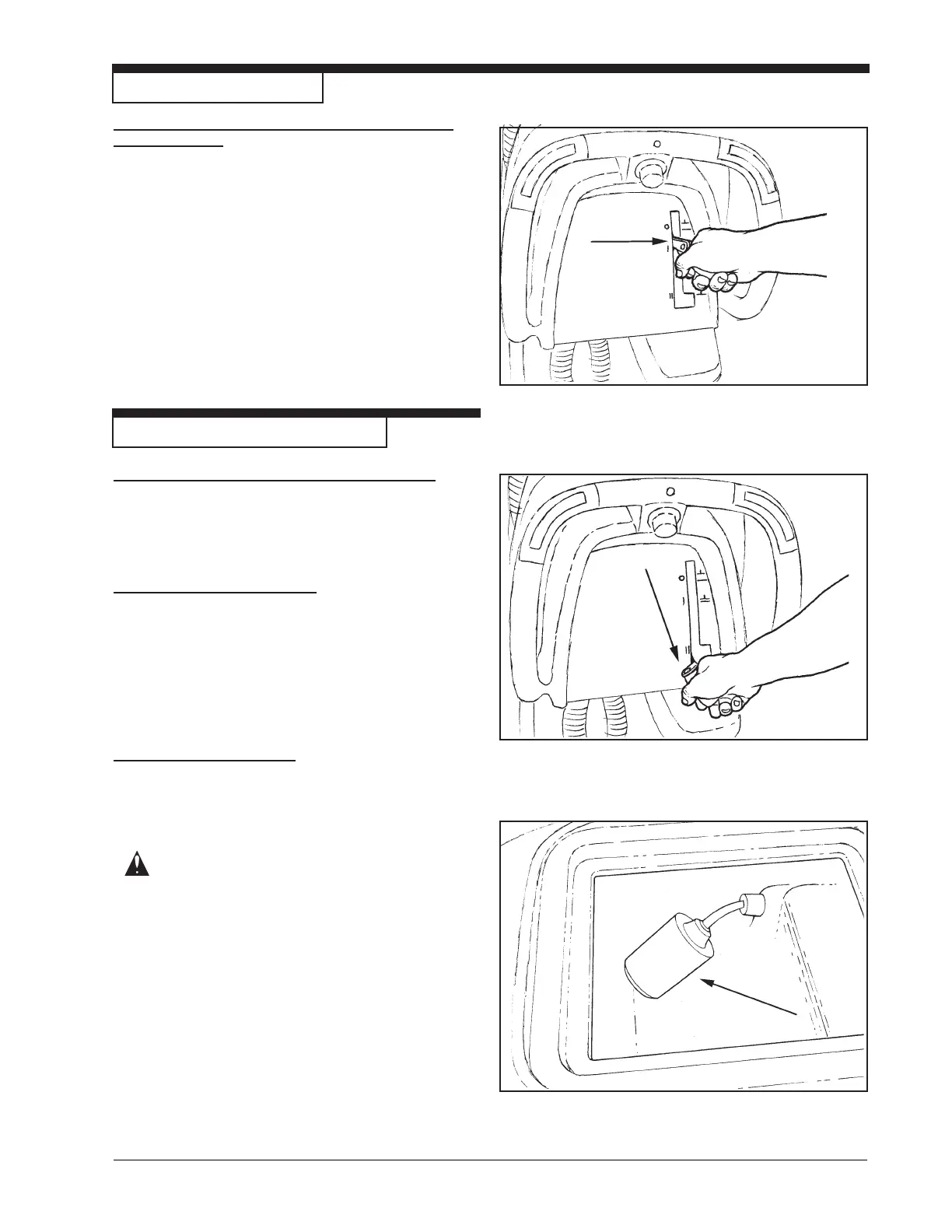

Machine Control Panel
Circuit Breakers (Figure 3, Items "L", "M", "N",
"O", "P" & "Q"
The circuit breaker reset buttons are located on the
lower control handle. The breakers are located as
follows:
Item "L" - Control Circuits (5 amps)
Item "M" - Control Module and Head Actuator (5 amps)
Item "N" - Vacuum Motor (25 amps)
Item "O" - Rotary Brush Motor (40 amps) or
Cylindrical Brush Motor (25 amps)
Item "P" - Cylindrical Brush Motor (25 amps)
Item "Q" - Traverse Motor (25 amps) (L17 Only)
Squeegee Lift Handle, See Figures 4 and 5
The squeegee lift handle is located in the control
handle. It is used to raise or lower the squeegee. The
vacuum motor is turned on when the handle is lowered
to either the center or lowest position.
Float Shut Off, See Figure 6
The shut-off switch for the vacuum motor is located in
the recovery tank. It automatically turns off the
vacuum motor when the recovery tank is full. NOTE: If
excessive foaming occurs in recovery tank,
defoamer must be added. Damage to vacuum
motor could result from foam entering into the
vacuum motor.
Parking Brake (Optional)
NOTE: Parking Brake must be used if operating
machine on surfaces with greater than 2% gradi-
ent.
The parking brake prevents movement of the machine.
CAUTION: Do not activate the parking brake
while the machine is moving.
The brake is located to the right hand rear of the
machine. Press pedal to activate brake and lift pedal
to disengage brake.
Figure 6
Figure 4
Figure 5
Machine Controls and Features
