Clarke ENCORE S17 - Transaxle Repair Parts

Page -52- Clarke
®
Operator's Manual -Encore S17/L17
Clarke
®
Encore S17/L17 & S17/L17 Cylindrical

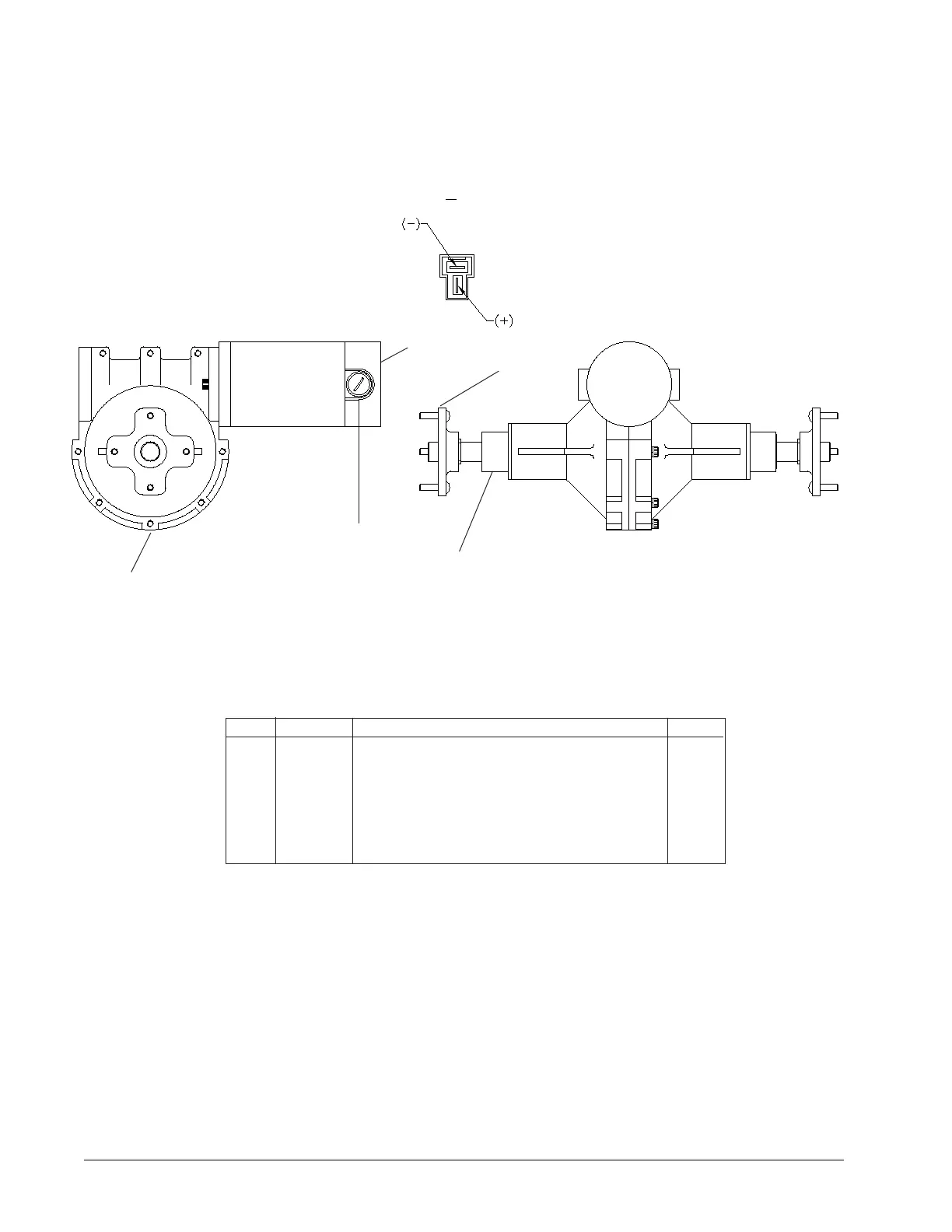

Transaxle Drawing 11/02
BLK
RED
1
2
3
4, 5
6
Item Part No. Description Qty
1 10135A Wheel Flange Kit 2
2 51056A Transaxle Mounting Sleeve 2
3 40593A Motor Brush 2
4 40594A Motor Urethane Sleeve 1
5 40595A Motor 1
6 40596A Transaxle Only 1
Specifications:
- Motor: 24VDC, Permanent Magnet, Tenv
- Transaxle: 30:1 Ratio
- Gear Oil: Mobile SHC634 12 oz.
