CHANGE OF OPERATING PARAMETERS
This function allows you to enter the screen (F, Fig. 7) to customise some parameter values described in the following table of
modiable parameters.
1. Turn the ignition key (41) to “I” by pressing and
holding the push-buttons (A) and (B).
2. Press push-button (C) to increase the value of
the current parameter.
Press push-button (D) to decrease the value of
the current parameter.
3. Press push-button (E) to move to the next
parameter.
4. To return to the main screen, press and hold the
push-button (E) for more than 2 seconds.
D CB
A EF

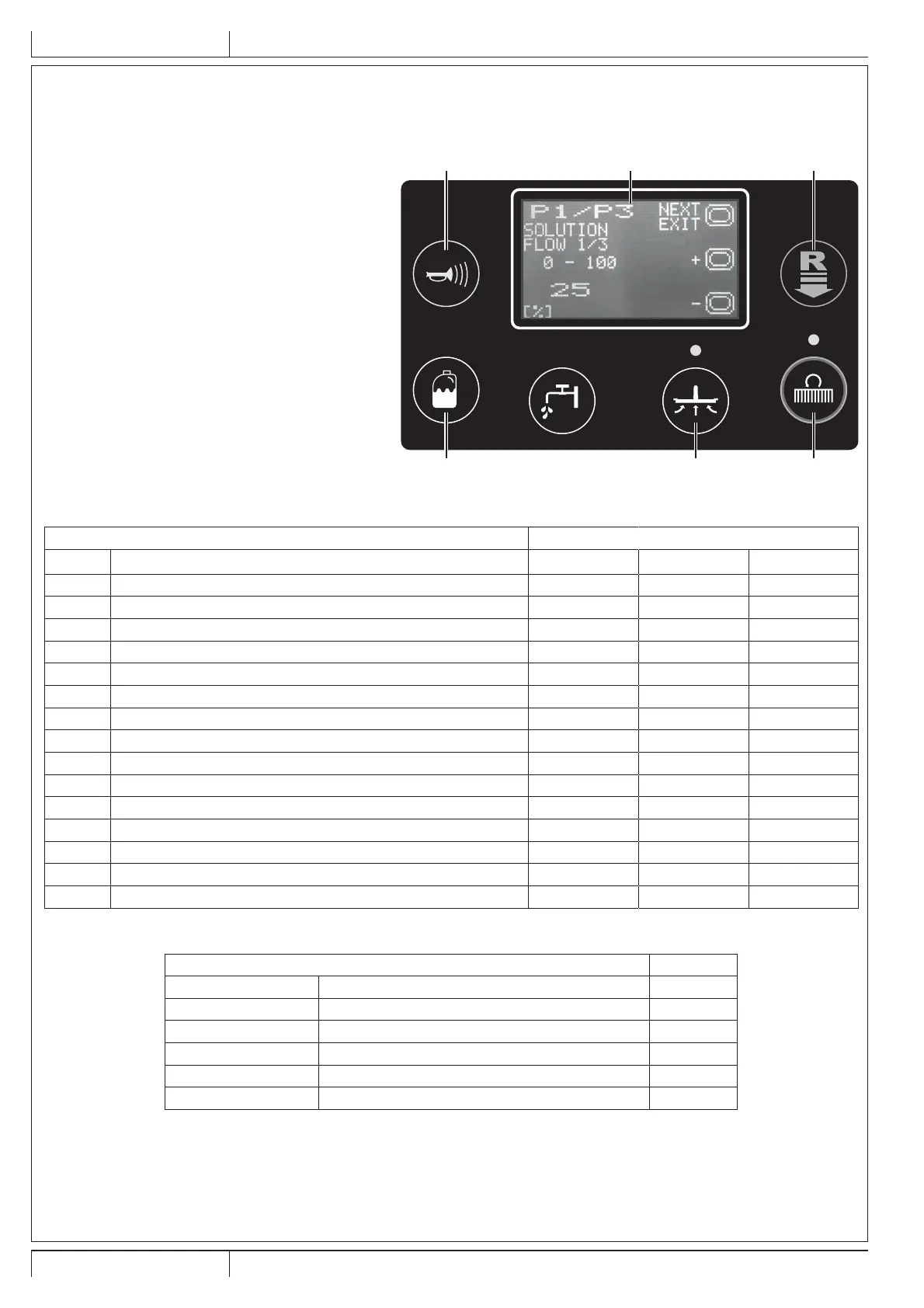

Figure 7
P100879
TABLE OF MODIFIABLE PARAMETERS Values
Code Description Minimum Factory Setting Maximum
P1/P3 Level 1 solution ow rate in relation to level 3 0 % 25 % 100 %
P2/P3 Level 2 solution ow rate in relation to level 3 0 % 50 % 100 %
P3 Level 3 solution ow rate (ow rate as function of speed) 1.0 cl/m 3.0 cl/m 5.0 cl/m
P4 Enablement of level 4 (2.8 l/min regardless of speed) OFF OFF ON
XPRES Brush deck extra pressure enablement OFF ON ON
FVMAX Maximum forward speed 10 % 100 % 100 %
RVMAX Maximum reverse speed 10 % 40 % 50 %
WSMIN Minimum working speed 10 % 25 % 100 %
WSMAX Maximum working speed 10 % 100 % 100 %
BRK Electromagnetic brake activation delay 0 sec. 1 sec. 5 sec.
BAT (*) Installed battery type (see table) 0 1 5
TOFF Automatic shut-off time 0 (disabled) 300 sec. 600 sec.
BRGH Display contrast 5 15 50
RPM (**) Reduced brush rpm activation threshold 5 9 20
RESET Restore factory settings for all parameters OFF OFF ON
(*) As described in the Use chapter, set the machine and the on-board battery charger on the basis of the type of battery to be
installed by modifying the BAT parameter from the table below:
Installed battery type Value
WET Wet cell batteries 0
GEL / AGM Generic GEL or AGM batteries 1
GEL DISCOVER GEL batteries or DISCOVER
®
brand 2
GEL OPTIMA GEL batteries or OPTIMA™ brand 3
GEL EXIDE GEL batteries or EXIDE
®
/SONNENSHINE brand 4
GEL FULLRIVER GEL batteries or FULLRIVER
®
brand 5
(**) Increase the value of this parameter to reduce the brush motor speed in a wider range of applications and vice versa.
