ENGLISH INSTRUCTIONS FOR USE
6 RA40 - 9100000394
01/2015
MACHINE DESCRIPTION

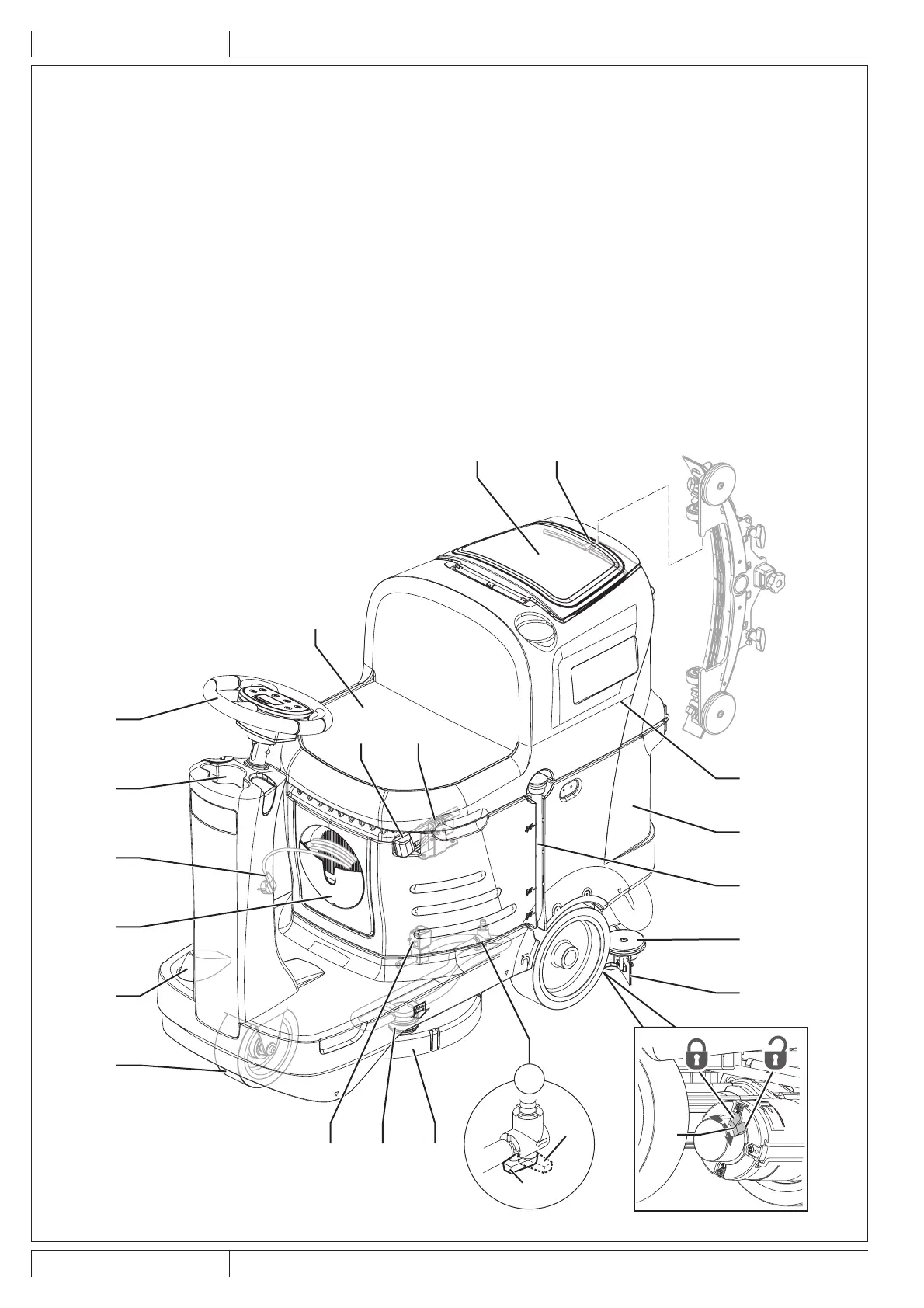

MACHINE STRUCTURE
1. Steering wheel with control panel (see the following
paragraph)
2. Drive pedal
3. Front steering wheel
4. Electromagnetic brake locking/unlocking lever
5. EMERGENCY push-button, to stop immediately all
functions
6. Battery connector
7. Brush deck
8. Solution lter
9. Solution valve
A) Open valve
B) Closed valve
10. Solenoid valve
11. Squeegee hook
12. Seat
13. Squeegee
14. Squeegee bumper wheels
15. Solution tank
16. Solution drain and level check hose
17. Dumping recovery tank assembly
18. Recovery tank cover
19. Can holder
20. Battery charger cable housing and document holder
21. Battery charger cable
B
A
17
15
16
14
13
5 6
12
1
2
3
10 8 7
9
4
P100876
