Clarke Vantage 17 E - Wiring Diagram and Grounding

INSTRUCTIONS FOR USE ENGLISH
9099653000 - VANTAGE 17 E 11

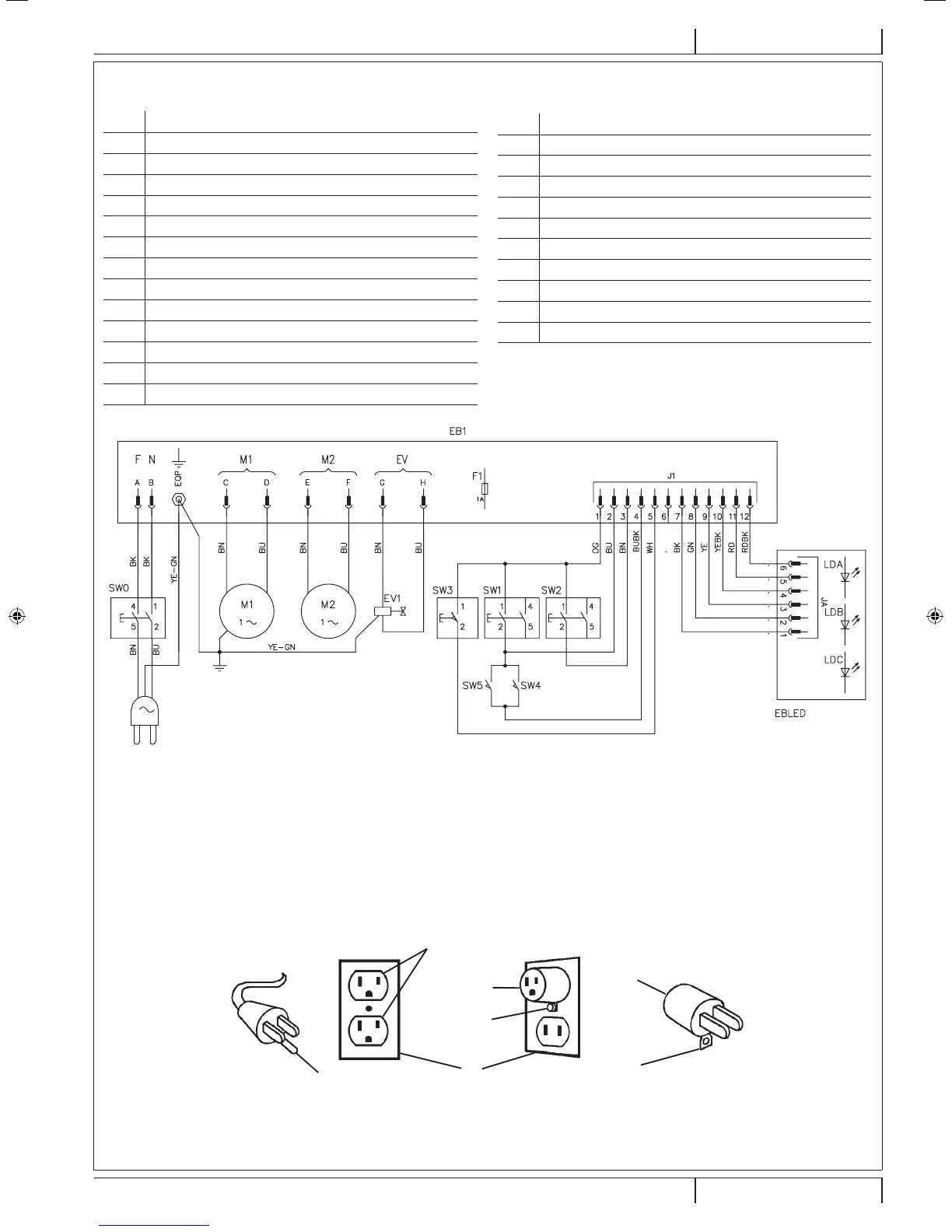

WIRING DIAGRAM
Key
EB1 Control panel electronic board
EBLED LED electronic board
EV1 Detergent solenoid valve
F1 Signal circuit fuse
LDA Green LED
LDB Green/yellow LED
LDC Green/red LED
M1 Brush motor
M2 Vacuum system motor
SW0 Main switch
SW1 Brush switch
SW2 Vacuum system switch
SW3 Detergent rate switch
SW4,5 Brush enabling switch
Color codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
P100657
GROUNDING CONNECTION
(See Fig. 2)
A) Grounding pin
B) Grounded outlet
C) Grounded outlet box
D) Adapter
E) Metal screw
F) Adapter
G) Grounding screw tab
A
B
C
D
E
F
G
Figure 2
S310183B
