SOLUTION FILTER CLEANING
1. Drive the machine on a level oor.
2. Make sure that the power supply cable plug (21) is disconnected from the electrical mains.
3. Close the solution valve (A, Fig. 9) under the machine, in front of the left rear wheel.
The valve (A) is closed when it is in the position (B) and it is open when it is in the position (C).
4. Remove the transparent cover (D) and the gasket (E), then remove the lter strainer (F). Clean and install them on the support (G).
NOTE
Install the gasket (E) and the lter strainer (F) properly on the cover (D) and on the support (G).
5. Open the valve (A) by turning it to position (C).
G
C
A
B
F
E
D

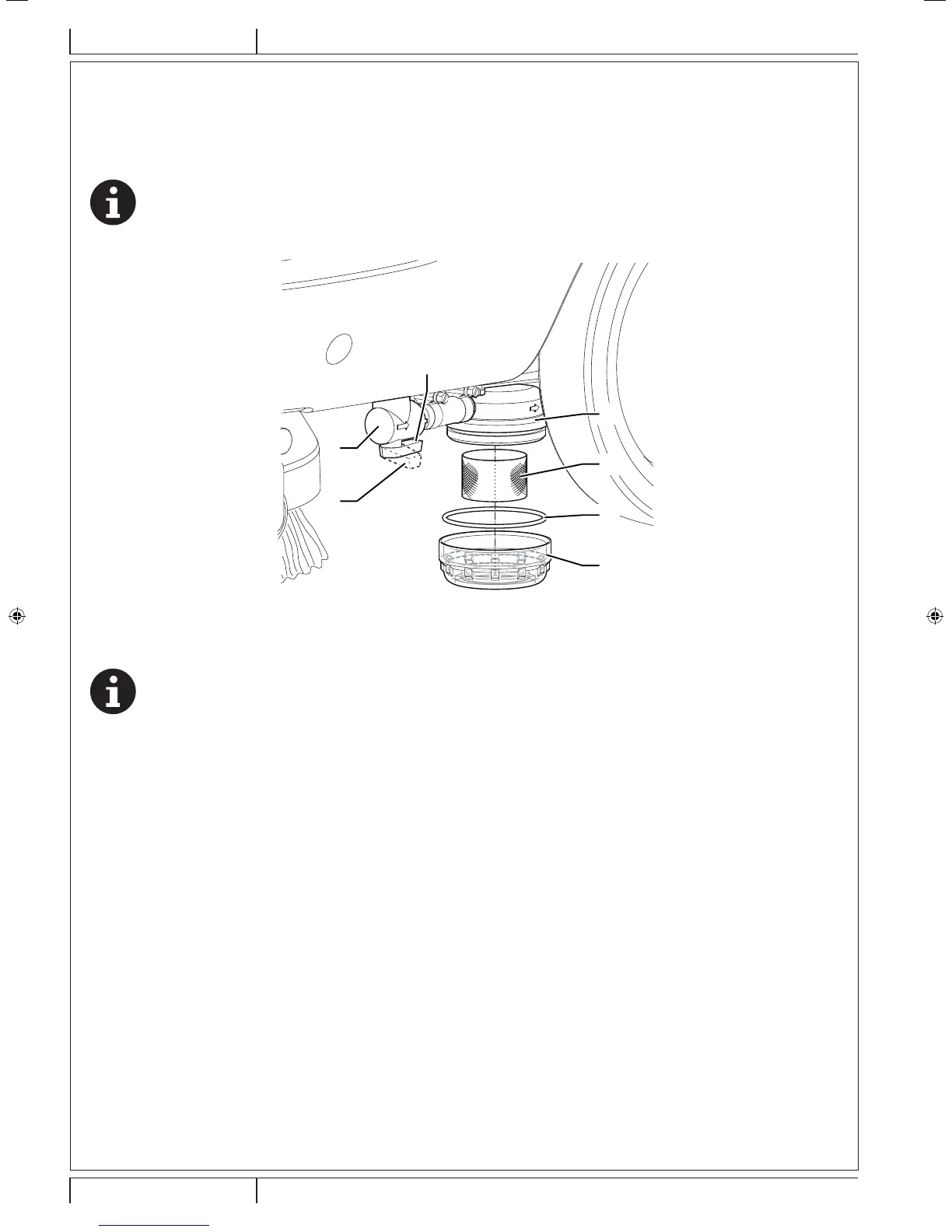

P100646
Figure 9
MACHINE SPEED ADJUSTMENT
NOTE
The machine speed varies according to the type of oor to be cleaned and the choice of using the brush or the pad.
If necessary, perform the following procedure.
1. Adjust the machine speed with the handwheel (41) according to the following procedure:
• Turn it counter-clockwise to increase the machine speed.
• Turn it clockwise to decrease the machine speed.
2. If it is difcult to keep the machine moving straight-forwardly because it deviates to the left or to the right, adjust the handwheel
(40) by turning it clockwise or counter-clockwise.
3. With the machine ready to operate, perform hands-on tests of the machine and other adjustments if necessary.
