Clarke Vantage 17 E - Machine Description and Components; Machine Structure Components

INSTRUCTIONS FOR USE ENGLISH
9099653000 - VANTAGE 17 E 7
13
14
14
15 11
25
17
16
26
21
22
12
1519
4
10
23
24
28
27
9820 13
7
51
6
18
23b23a
11
29
2
3
P100648

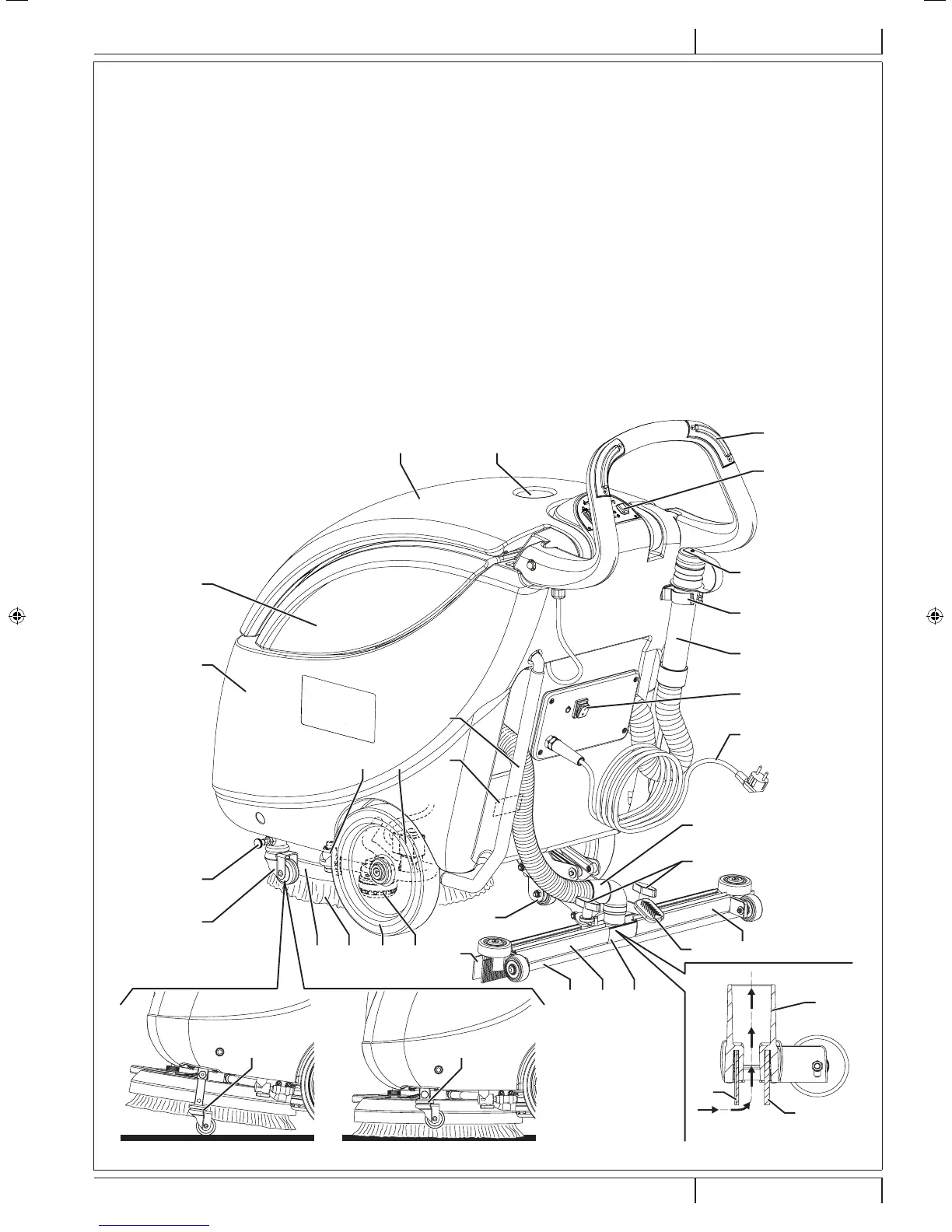

MACHINE DESCRIPTION
MACHINE STRUCTURE
1. Serial number plate/technical data/conformity certication
2. Handlebar
3. Control panel
4. Solution ow opening/closing valve
5. Solution solenoid valve
6. Recovery tank cover
7. Rear support wheel for transport/parking
8. Central wheels on xed axle
9. Brush/pad
10. Brush/pad-holder deck
11. Squeegee
12. Squeegee mounting handwheels
13. Front squeegee blade
14. Rear squeegee blade
15. Squeegee blade mounting springs
16. Recovery water drain hose
17. Recovery water drain hose bracket
18. Solution drain hose with level check marks
19. Squeegee lowering pedal
20. Solution lter
21. Power supply cable
22. Squeegee vacuum hose
23. Transport/parking wheel
23a. Transport/parking wheel (engaged)
23b. Transport/parking wheel (disengaged)
24. Transport/parking device positioning pin
25. Recovery water drain plug
26. Main switch
27. Recovery tank
28. Solution tank
29. Can holder
