3 System description
The system design is determined by the size and quantity of DGD-IS used and always varies depending on
the individual situation. These components can be combined with one another in various sizes.
This chapter includes a brief description of the components. Each respective chapter contains separate
technical details.
Special features of the fastening system mPro400GC-DGD-intelligent-spindle
In the mPro400GC-DGD-intelligent-spindle fastening system, the tightening modules are no longer installed
in a control cabinet, but directly on the built-in nutsetter, see system "m-Pro-400-tm" with single cable solu-
tion.
The intermediate circuit voltage was increased from 320 VDC to 380 VDC compared to the "TM" tightening
modules. This increased the maximum speed of the built-in nutsetter by 20 %.

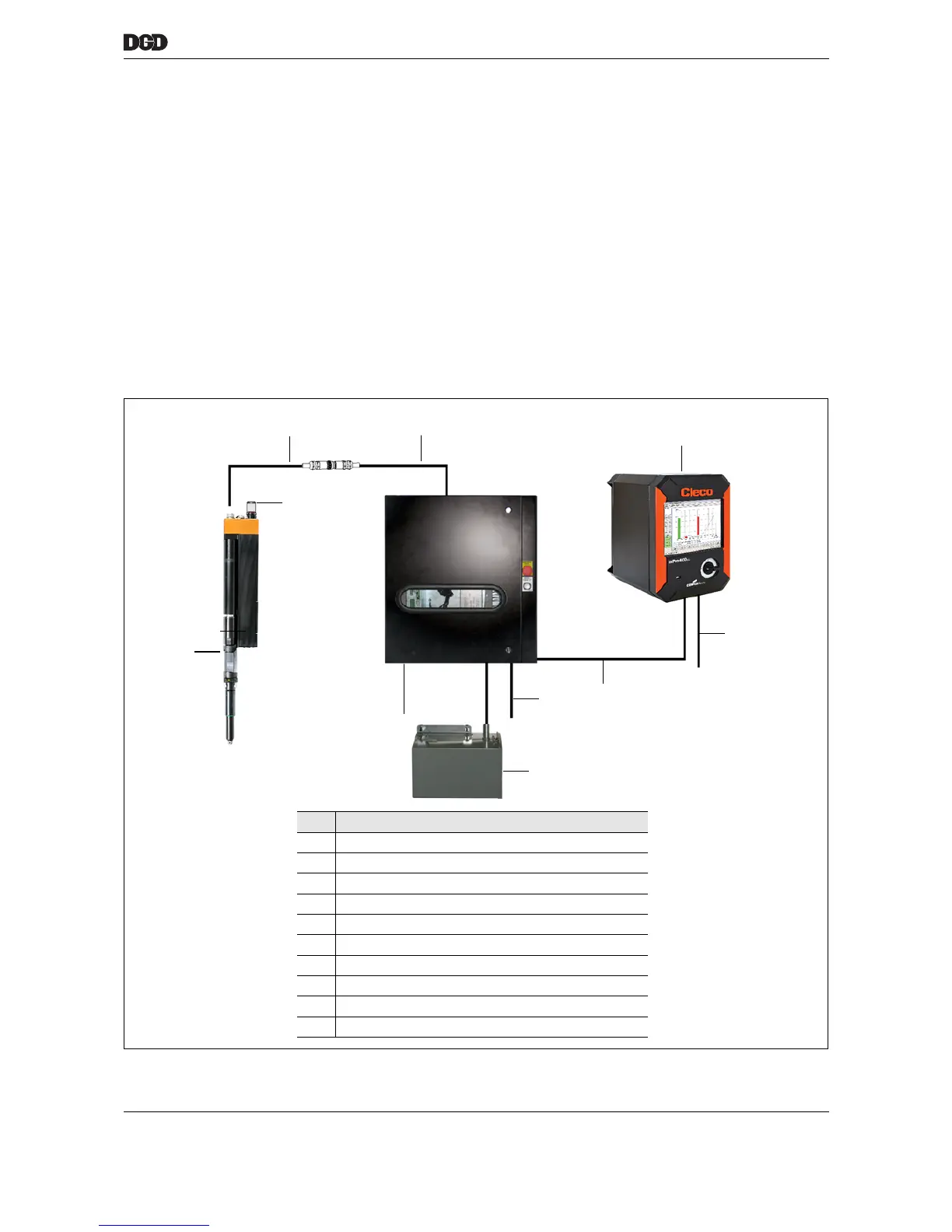

3.1 Components
1
Item Designation
1 Nutsetter control unit mPro400GC-M
2 ARCNET cable Order no. 960950-××× (××× = length in dm)
3 Mains cable, 3×480 VAC
4 Transformer CP3-…JH
5 Power distribution box PDB-CPS…
6 DGD-IS
7 ARCNET terminator
8 System cable, type A
9 System cable, type C
10 Power cable
6
3
5
4
7
9
8
2
10
