77f_Schraubmodul-en.fm, 06.09.2011 P2077SB/EN 2011-09 25
Tightening module TSE/TUSE
6
6.2.3 Logic power supply
The logic power supply in the tightening module generates all supply voltages (24 V from the nutsetter con-
trol unit).
6.3 "Ready" LED
The "Ready" LED indicates that the system is ready for operation:

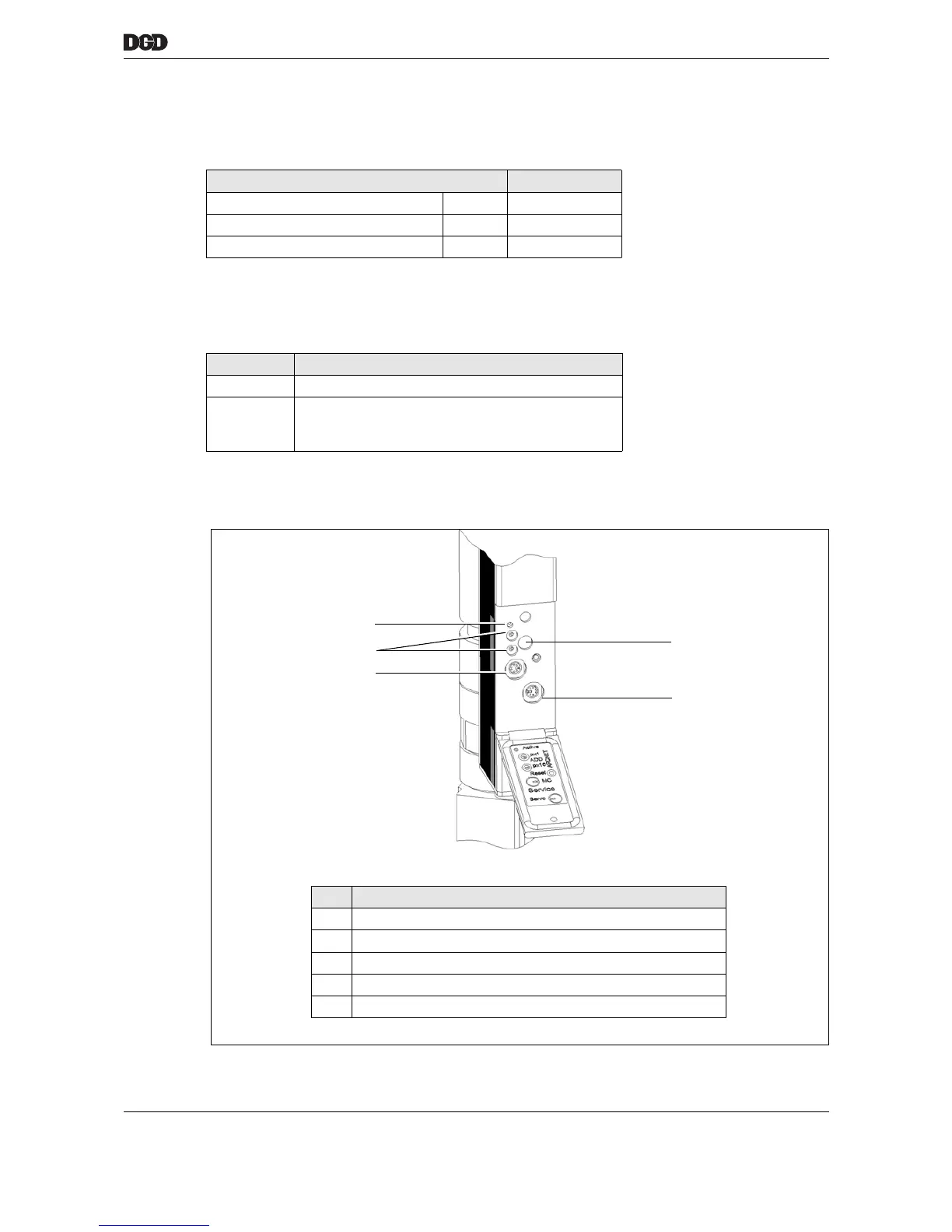

6.4 Service panel
Features Data
Supply voltage V 24 +10 %
Rated supply current A approx. 0.35
Power loss (standby) W 9
Signal Tightening module
Green Ready for operation
Red Not ready for operation,
an error is pending (see 15 Troubleshooting,
page 63)
3
5
4
1
2
a00601.wmf
Item Designation
1 ARCNET address preset
2 "Active" LED
3 <Reset> button
4 DGD service interface (RS232) for measuring board (MC)
5 DGD service interface (RS232) for servo
