Cleco Tools BTSE series User Manual

77g_Komponenten-en.fm, 06.09.2011 P2077SB/EN 2011-09 37
Motor
10

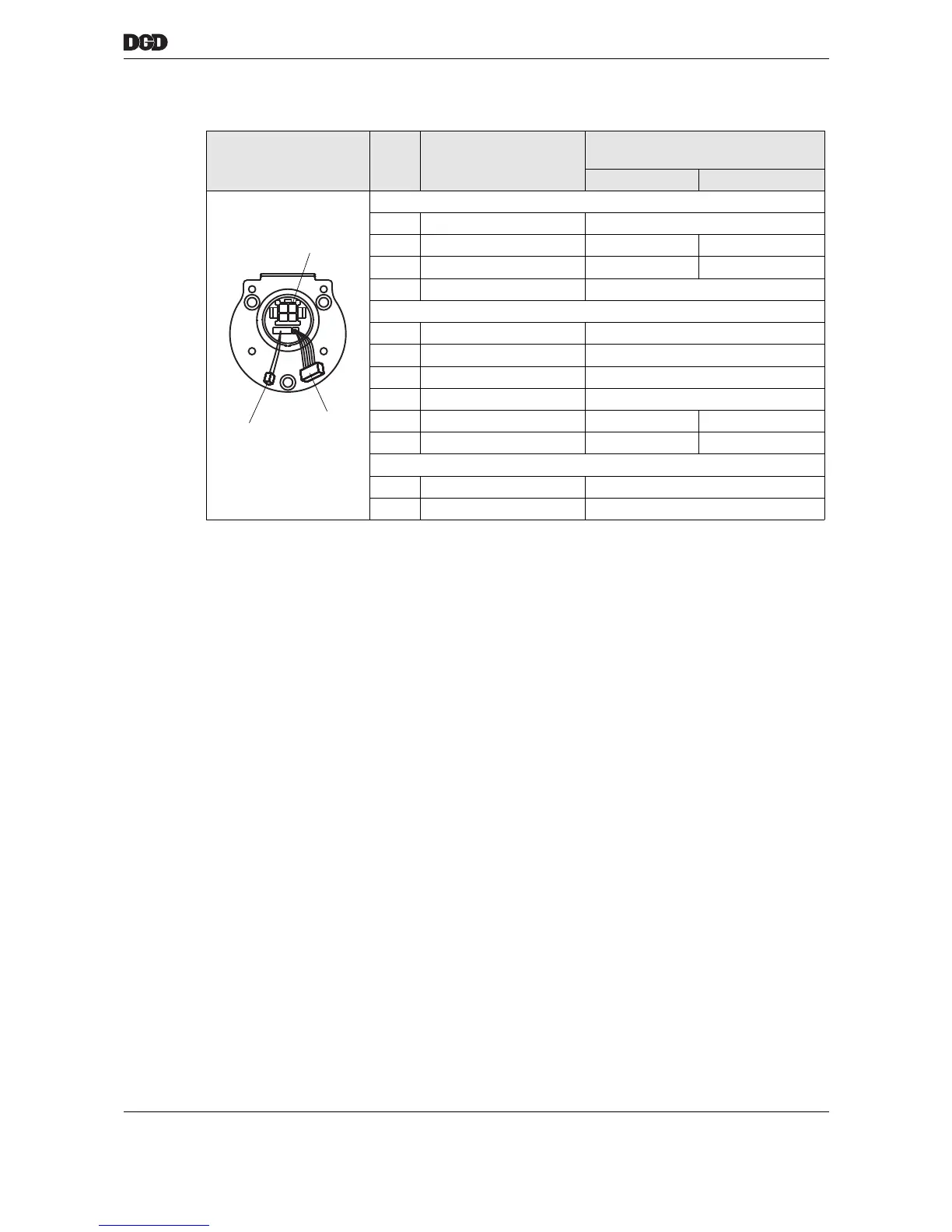

10.4 Pin configuration motor connector
Pin Signal designation Wire colors
(in motor)
Motor type BT Motor type BUT
Motor (1)
4 PE Green/yellow
1 Phase S green green
2 Phase R Black Red
3 Phase T red/black
Resolver (2)
1 Resolver R1 Red/white
2 Resolver R2 Yellow/white
3 Resolver S1 Red
4 Resolver S3 Black
5 Resolver S2 Yellow Blue
6 Resolver S4 Blue Yellow
Temperature sensor (3)
1 0 V Black
2 Signal Red
1
2
3
