85

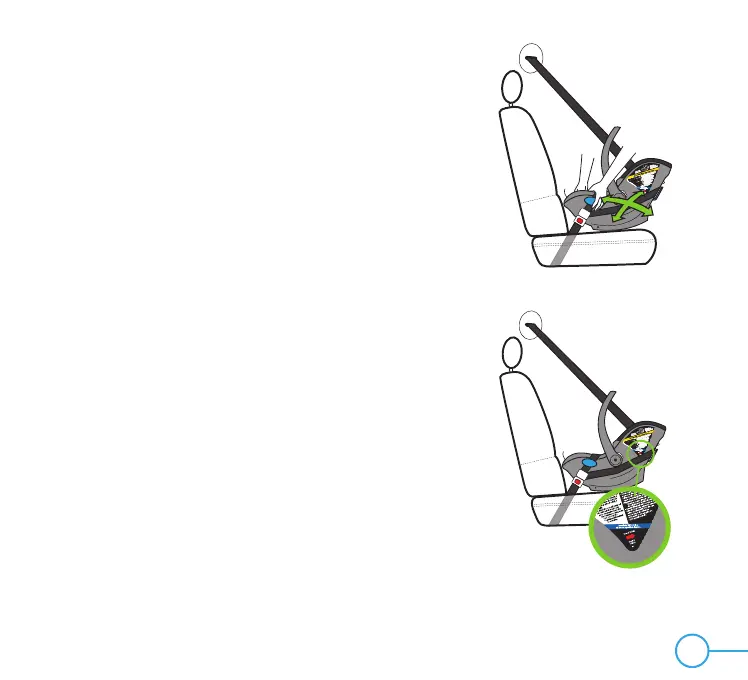

Figure 83
Figure 84
Step 10
Check for secure installation:
• Grip Carrier near blue Vehicle Lap Belt Guides and
pull Carrier side-to-side and front-to-back to check
for secure installation, as shown in Figure 83. The
Carrier should not move more than 1 in. (2.5 cm) at
the belt path. Do not push down on Carrier near the
child’s feet when checking for movement.
NOTE: If vehicle belt does not stay tight or Carrier
cannot be securely installed, try a different vehicle
seating location or install car seat using Car Seat
Base. See “Installing/Removing Car Seat with Base”
on page 51.
St e p 11
Verify that the blue Recline Reference Line on side of
seat is parallel with ground, as shown in Figure 84. If
not, go back to Step 6, adjust the recline of the Carrier,
and install again – being careful during Step 9 to push
the Carrier straight into the back of the vehicle seat
without tilting it more upright, or move the Carrier to a
different vehicle seating position.
NOTE: If needed, a rolled towel or pool noodle may be
placed under the foot end of the Carrier to achieve an
acceptable recline level.
