Revision: 2.1

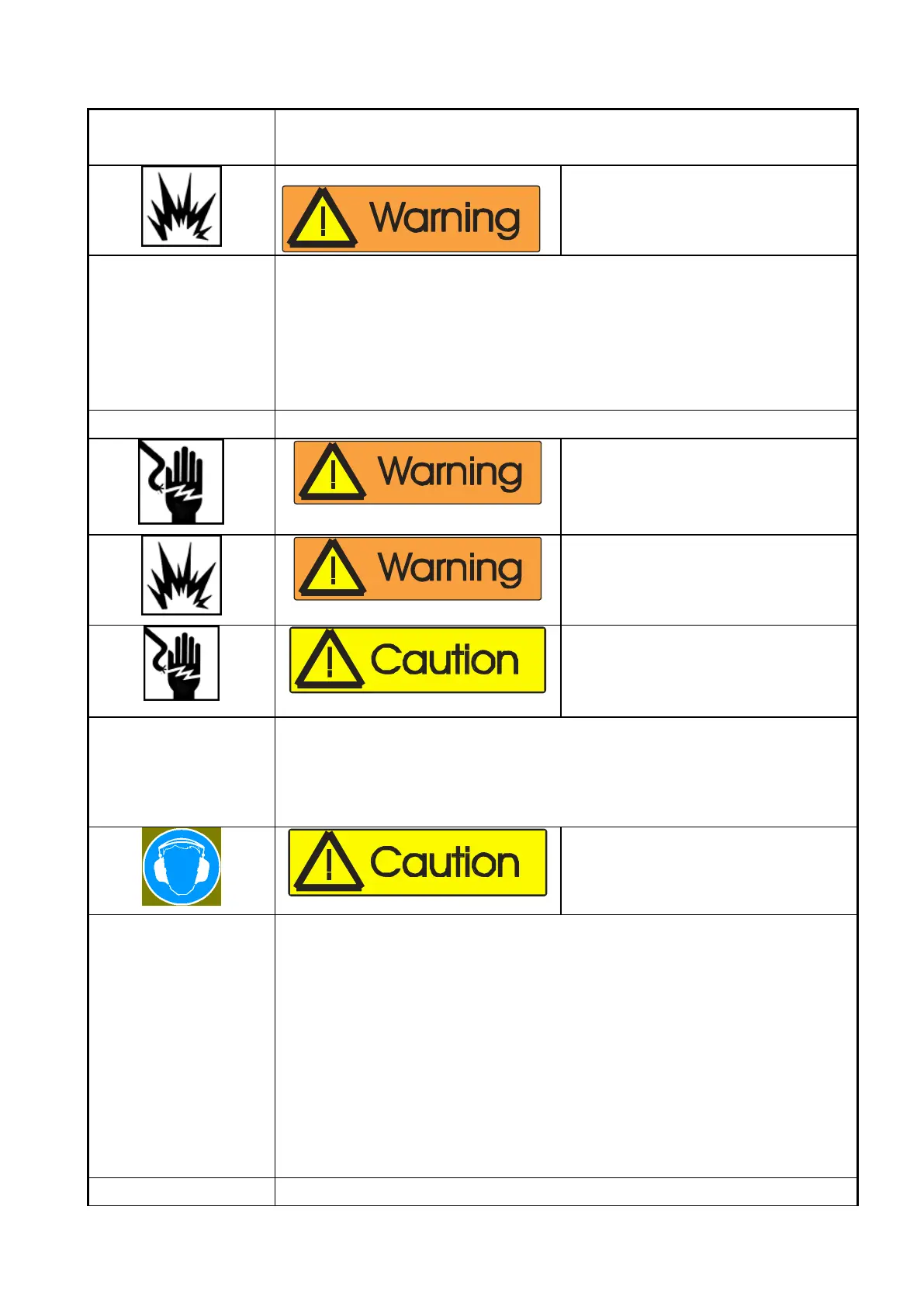

4.6 Installation, assemble and function test
-Requirements: see yellow cover
-Bracing in the floor not necessary
Warning! Explosion hazard!
Connect only max. admitted pressure
- max. 7 bar
- for higher pressures install pressure regulator and safety valve between cabinet
and air supply
- air hose between air supply and cabinet:
+ Inner diameter : min 19 mm
+ Lenght: max. 10m
Filter cartridge dedusting
Adjust pressure regulator for dedusting to 5 bar
Warning! Risk of injuri!
Connect electric circuit points only by
authorized electrician.
Warning! Explosion hazard caused by
dust!
Ground!
Caution! Risk of injuri!
Ground!
Electrical connection and
grounding
- 16A Euro plug connector
- Ground cabinet, cyclone and dust collector
- min 10 mm
2
- earth screw in stock, ground wire etc. no shipment
Caution! Noise > 80dB(A)
Wear ear protection!
Operation checkout
without media
Close the doors.
Switch-on elctricity (green push button). Control the following:.
-Is lighting on?
-Is the fan motor starting? Turns the motor in direction of the arrow? Otherwise
reverse the polarity.
-Is dedusting pulse for cartridge filter activ? ( Interval. ca 40 s)
-Take the nozzle in your hand and press the foot pedal. Is the blast process
starting?
-Step on the foot pedal und open left resp. right door (second. person). Is the
blast process stopping?Test cabinet with media, if no irregularities can be
detected. Otherwise remedy errors. Therefor see section 7.
