Revision: 2.1

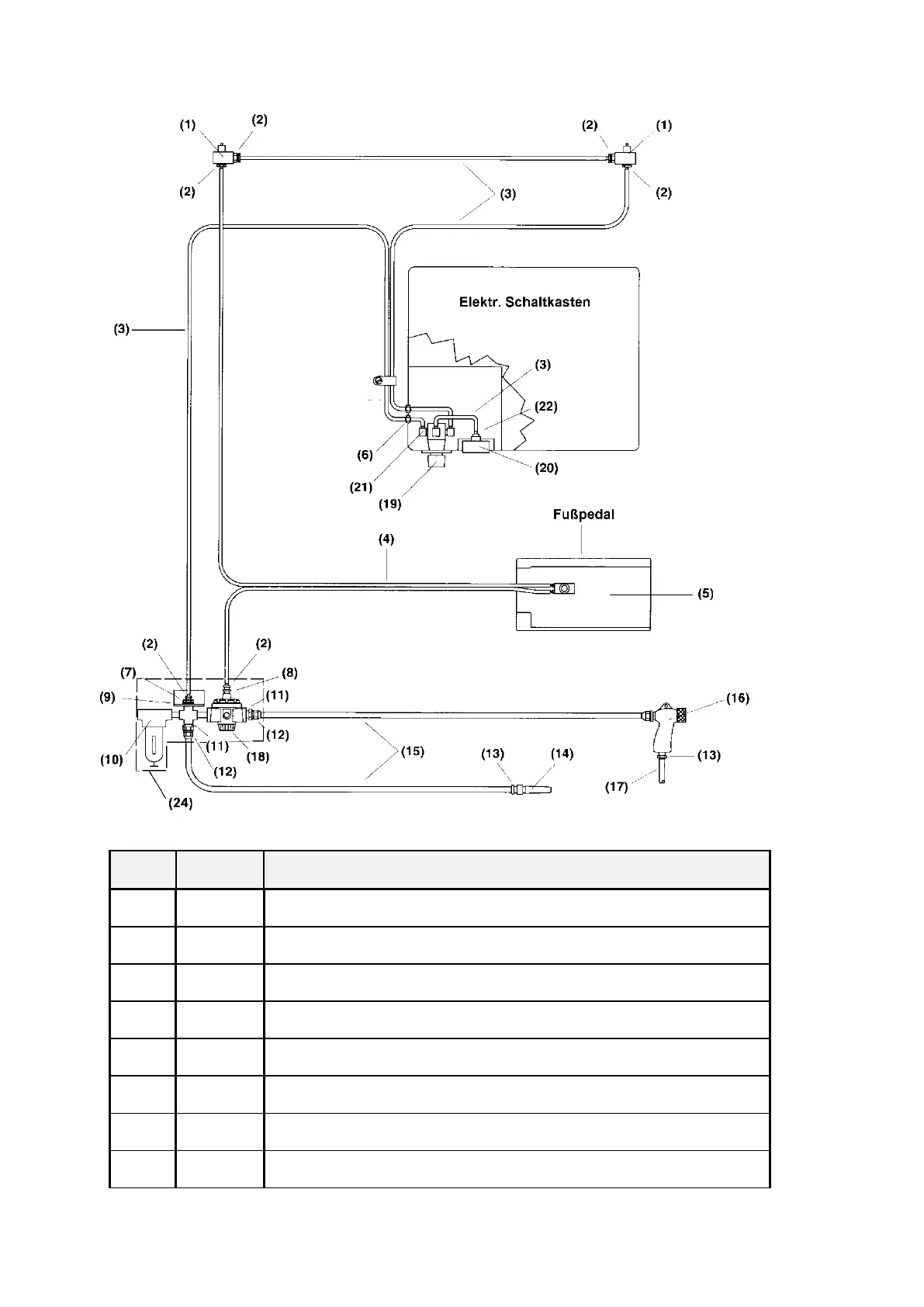

9.3 Pneumatic diagram
Picture 10: Pneumatic diagram
Pos.
Part no.
Description
(1)
12202Z
3 way valve - pneumatic
(2)
11732Z
Screw connection 1/8 "
(3)
12475Z
1/8” Urethan hose per 3m
(5)
06266Z
3-way foot valve
(12)
11723Z
Screw connection
(13)
11724Z
Screw connection
(14)
13116Z
Blow off nozzle cabinet
(15)
12472Z
Air hose ½“
