Clemco BNP Series - Automatic Gun

Revision: 2.1
9.7.2 Automatic gun
Useable only with support (see 9.7.3)

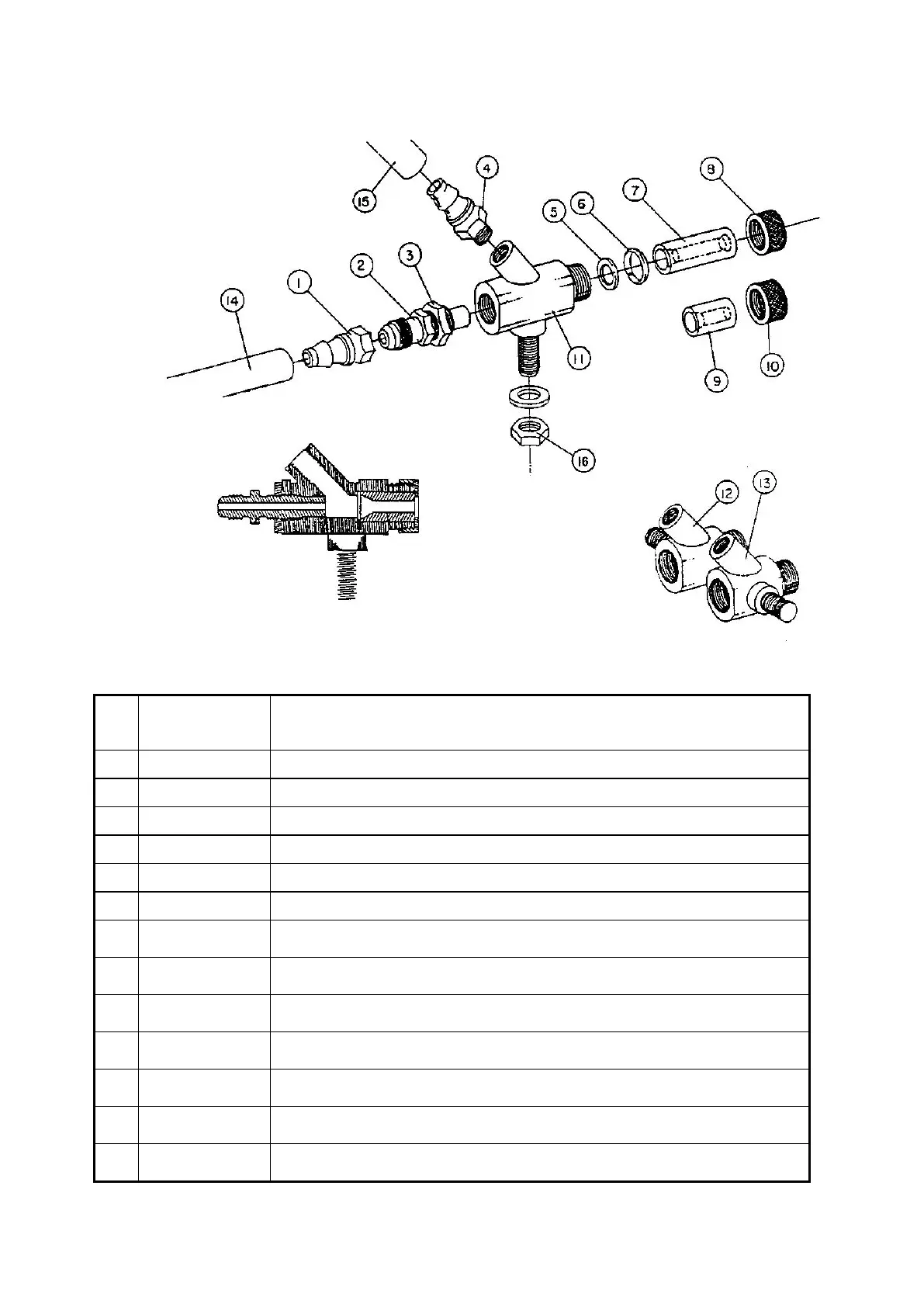

Figure 15: Spare parts autimatic gun
Pos
no.
Part no.
Description
90807Z M*
Autom. gun assy with 6mm nozzle
100099 M*
Autom. gun assy with 8mm nozzle
-
Autom. gun assy with 9,5mm nozzle
99551Z L*
Autom. gun assy with 9,5mm nozzle
99552Z M*
Autom. gun assy with 9,5mm nozzle
99553Z R *
Autom. gun assy with 9,5mm nozzle
1
11723Z
Union ½“
2
11959Z
Orifice no. 4 (3,2 mm) for blast nozzle 6 mm
11960Z
Orifice no. 5 (4,0 mm) for blast nozzle 8 mm
11961Z
Orifice no. 6 (4,8 mm) for blast nozzle 9,5 mm
11962Z
Orifice no. 7 (5,6 mm) for blast nozzle 11 mm
11963Z
Orifice no. 8 for blast nozzle 11 mm (special cases)
3
11918Z
Adjustment nut for orifice
