Clemco BNP Series - Metering Valve for Sputnik

Seite 32 von 38
9.6 Metering valve for Sputnik

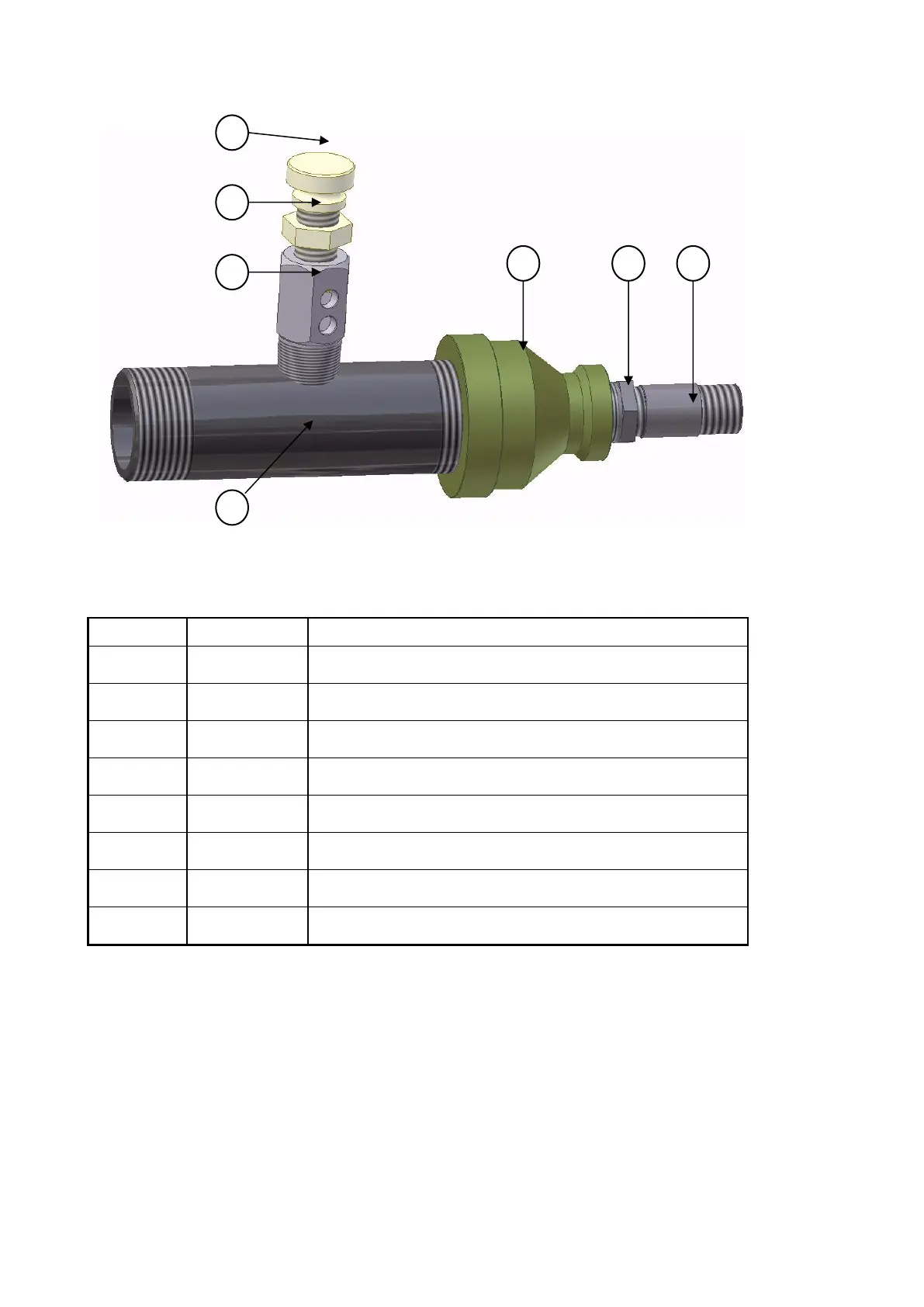

Picture 13:Metering valve for Sputnik
Pos.-no.:
Part no.:
Description
1
100790
Screw adjusting
2
100791
Nut, adjusting stem lock
3
100789
Stem, metering adjusting
4
11534
Body, metering valve
5
12024
Bell reducer
6
12818
Pipe bushing
7
11912
Pipe nipple
1-7
12420
Complete assembly
4
1
2
3
5
6
7
