3.3 Operating mode of the complete system

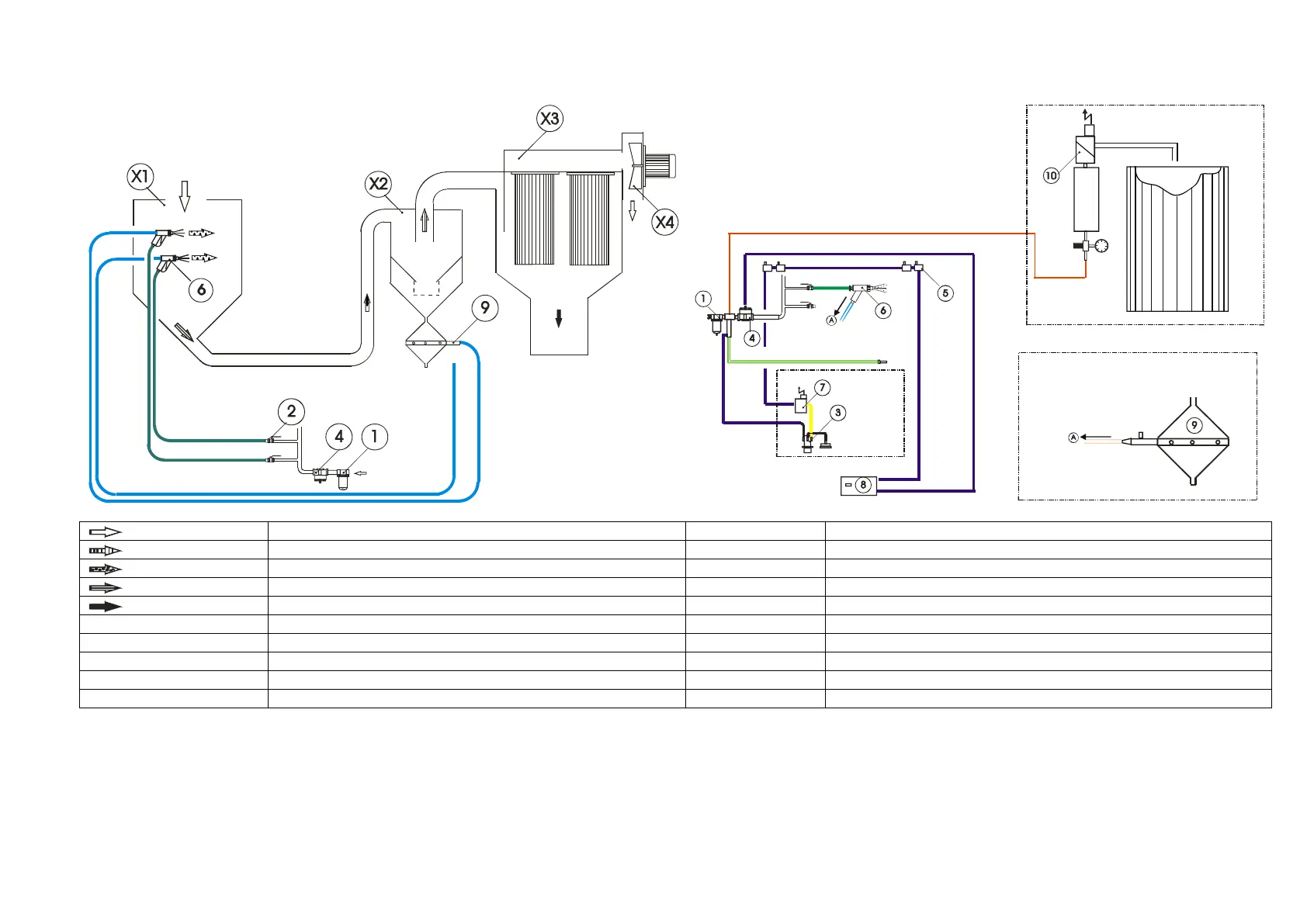

Abrasive circiut flow - Basic principle
Pneumatical flow scheme - colours of pneumatic hoses are not binding
X2
X3
X5
Pure air
6
Blast gun
Abrasive, dust and air
7
3/2-way solenoid valve
Abrasive and air
8
Foot pedal; 3/2-way valve
Dust and air
9
Sputnik + Metering valve
Dust
10
Diaphragm valve /cleaning
1
Moisture separator, dust collector
X1
Blast cabinet
2
Ball valve
X2
Cyclon /Reclaimer
3
¼ “ regulator (pilot)
X3
Cartridge dust collector
4
Pressure regulator (main)
X4
Exhaust muffler
5
Pneumatic door interlock - 3/2-way valve
X5
E-box
Figure 1
