3.4.2 Dust collector cartridge
o Standard: cartridge dust collector MBX
o Automatically cleaning with jet pulse and after running process
o Recommandations for MBX-Filter
o Pulse interval: ca. 40..60 s
o Pulse duration: ca. 500 ms
o Follow up cleaning: ca. 5min
o exchangeable cartridge.
o Dust container
3.4.3 Control elements
where
notes /functiones
Pressure regulation blasting
Control box
2 to 7 bar
Dedusting filter cartridge
Pressure regulator on air balance
vessel – Backside of blast cabinet
Preference pressure: 5 bar
ON/OFF
Control box
Activating:
- Control circuit
-Fan
-Light
-Filter cartridge dedusting
function (After running
process)
Emergency STOP
Control box
Deactivating electrical supply

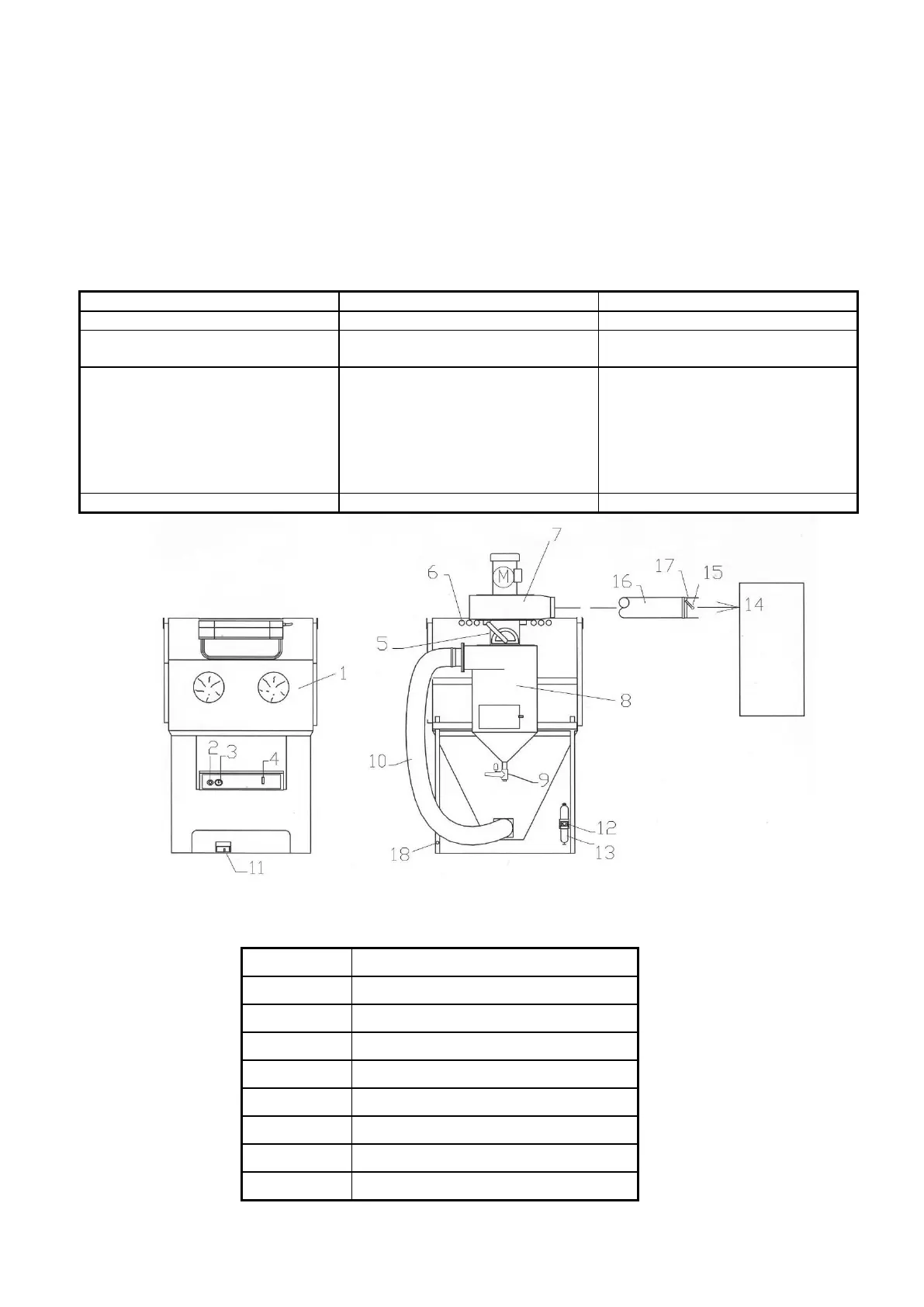

Figure 2: BNP-Suction blast cabinet
Pos. 1
Blast Cabinet
Pos. 2
Pilot regulator
Pos. 3
Manometer
Pos. 4
ON / OFF switch
Pos.5
Adjustable vortex cylinder (optional)
Pos.6
Air inlet
Pos.7
Ventilator
Pos.8
Cyclone
Pos.9
Metering valve
