Clevo 2700T - Mainboard Overview; Key Parts

1 - 10
Service Manual

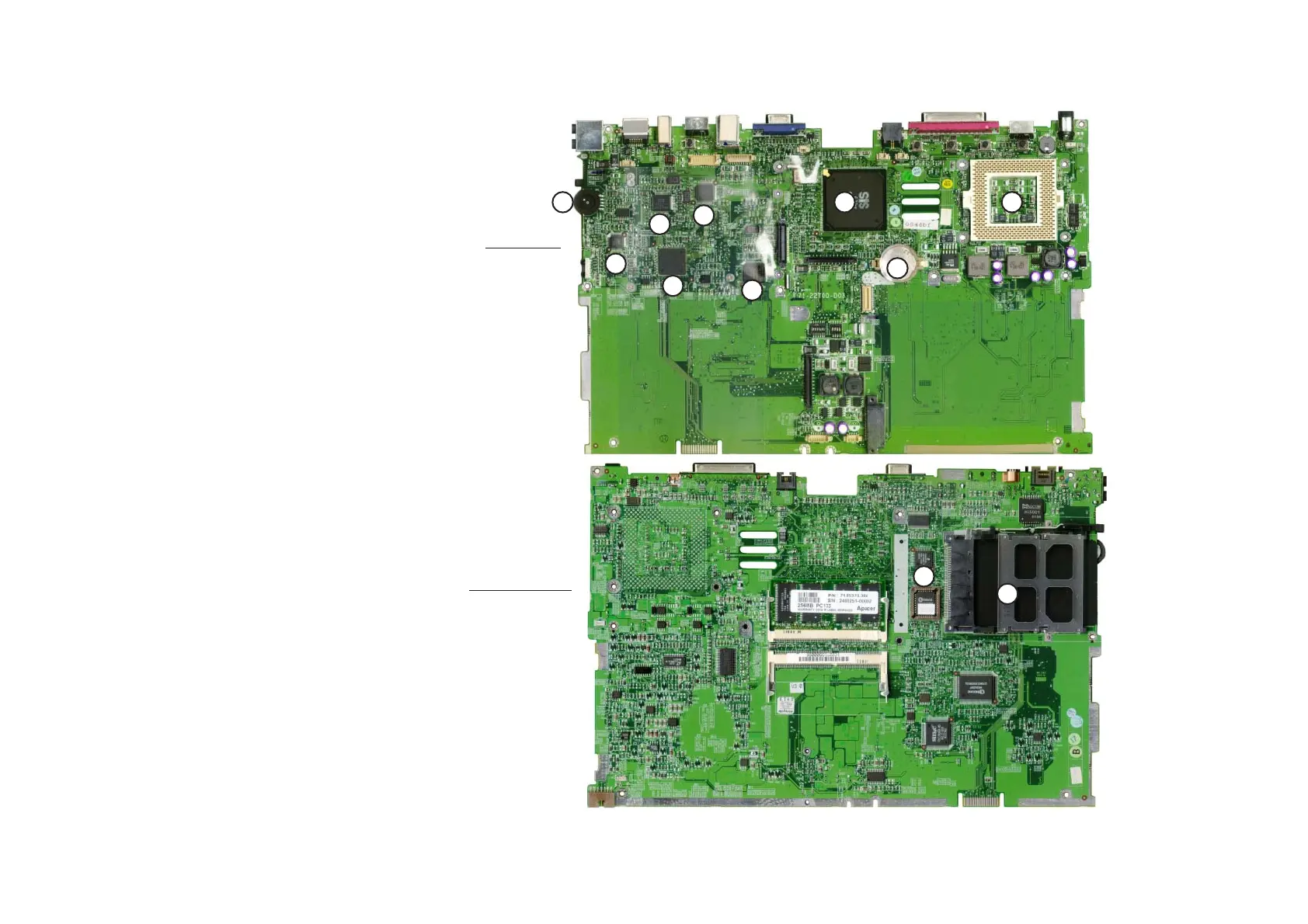

Mainboard overview
Key parts
1) CPU socket (no
CPU installed)
2) Core logic
SiS630st
3) VR
4) ICS1893 Lan
PHY
5) 1394 PHY
6) Audio Codec
7) TI4410
(PCMCIA +
1394
Controller)
8) K/B Controller
M33867
9) CMOS battery
10) Flash BIOS
ROM
11) PCMCIA socket
123
4
Top view
Bottom view
9
8
7
6
5
10
11
