Service Manual
2 - 12
Separate the notebook base in two
With the CPU and heat sink, keyboard, HDD and CD device removed:
1 Philips screw-
driver
1 Hex socket
wrench
Top: 1 Screw
1 Hex nut
Right Side:
1 Screw
Bottom:
7 Screws (2700T)
5 Screws (2200T)
Bottom Rear:
3 Screws
4 Hex nuts
1) microphone
connector
2) LCD panel
cable connec-
tor
3) Inverter cable
connector
4) LCD panel
cable
5) Inverter cable
4
2
3
5
1
I

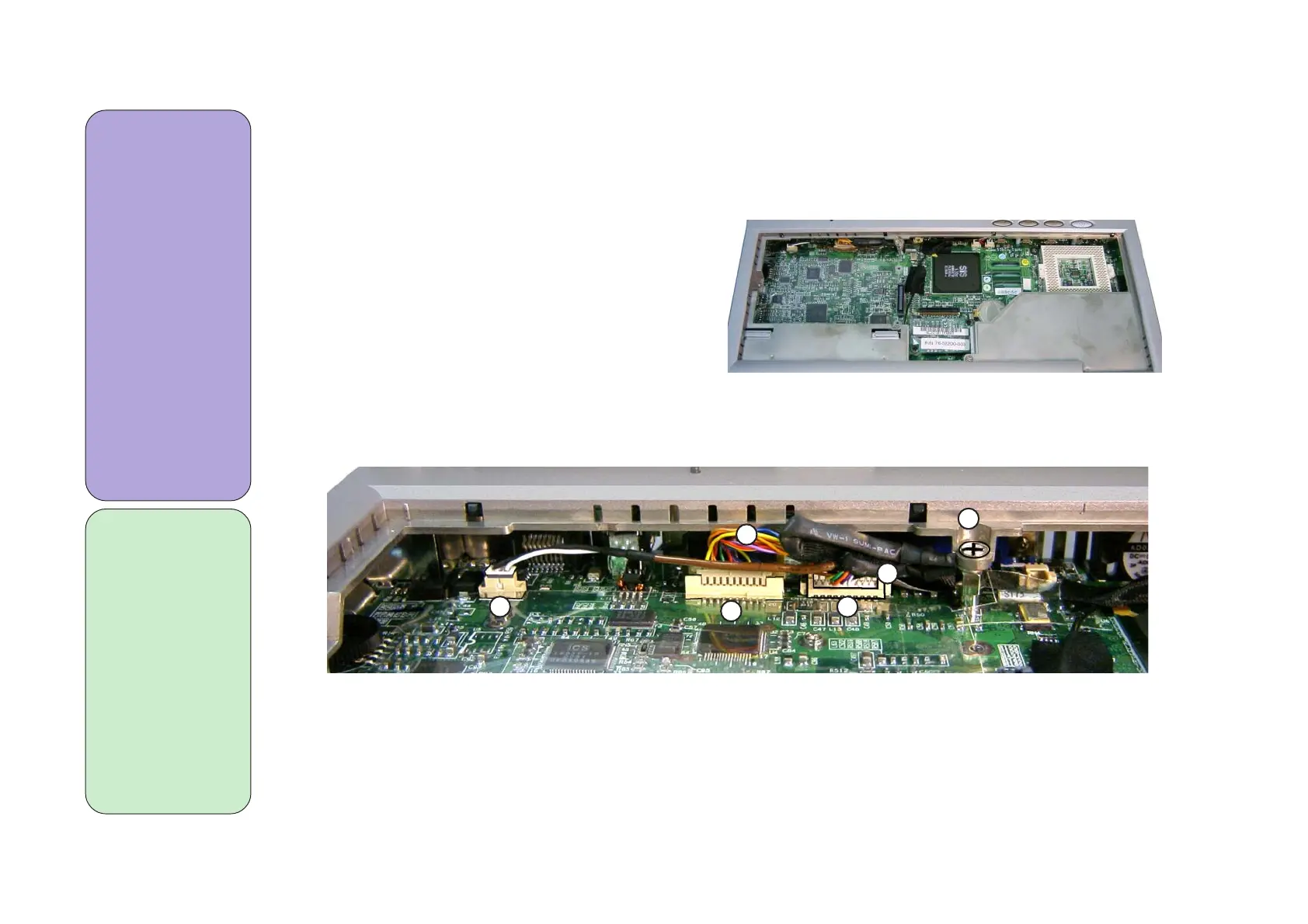

1. Remove screw (I), the LCD panel cable and
the inverter cable. When reinstalling make
sure to place the LCD panel cable on top of
the case and the inverter cable on the inside
of the case just above the hex nut (figure 2-
12).
figure 2-12
To Next Page
