Remove the CPU
1. Remove the CPU lock from
the CLOSE slot of the CPU

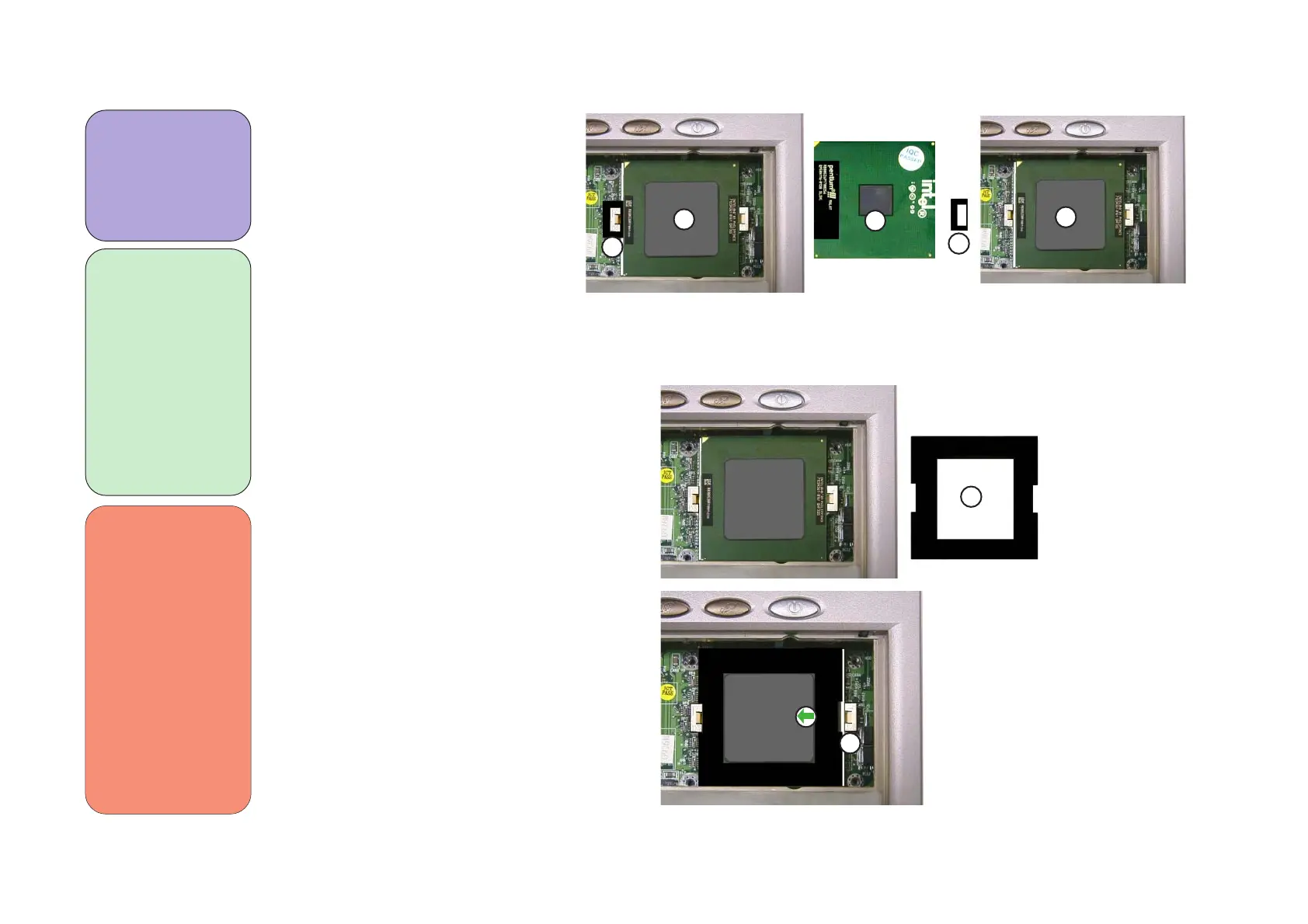

socket (figure 2-10a).
1 Regular
screwdriver
1 CPU tool


1a) FC-PGA2
CPU
1b) FC-PGA
CPU
2) CPU lock
3) CPU Tool
4) Open Slot
1a
2
figure 2-10b
3
2. Place the CPU tool over
the CPU (figure 2-10b).
3. Place a screwdriver in
the OPEN slot of the
CPU socket and move it
to the left (figure 2-10b).
4. The CPU is now un-
locked from the socket
so remove the CPU tool
and lift the CPU out of
the socket.
4
figure 2-10a
1b
**
The removal and
reinstallation/
replacement
procedures for
both FC-PGA
and FC-PGA2
CPUs are the
same. However,
both types of
CPUs go with
different heat
sinks (page 2-9).
