Clevo 2700T - Remove the LCD Panel and Bracket from the LCD Panel Case

Disassembly
2 - 19
Remove the LCD panel and bracket from the LCD panel case *
1. Remove the bracket screws (D) on the side of the LCD panel (figure 2-22).
2. Remove the 4 screws (I) at the bottom of the LCD screen (figure 2-22).
3. Remove screws (D) securing the inverter board (figure 2-22).

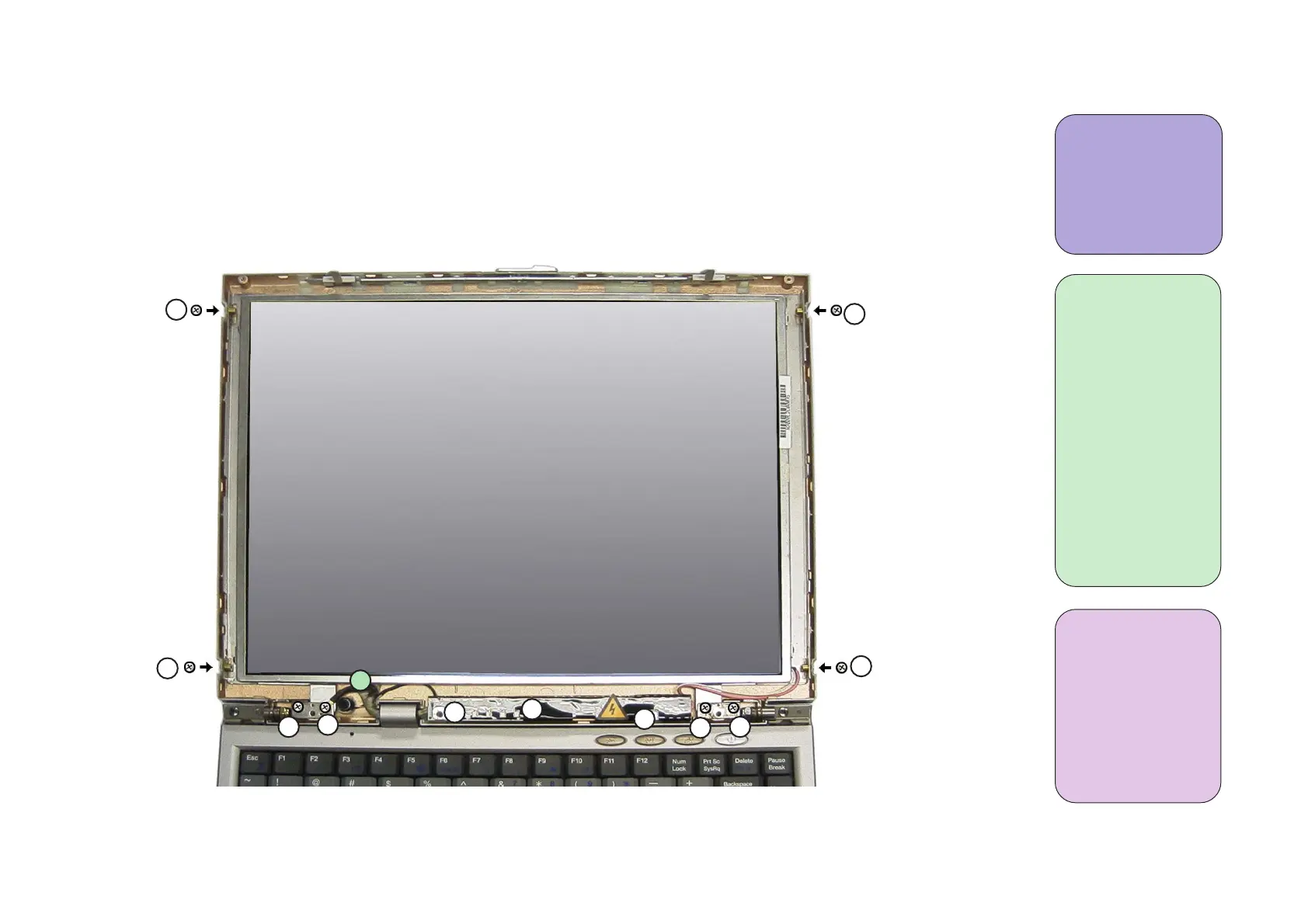

figure 2-22
1
2

1 Philips
screwdriver
10 Screws

1) Ground wire
(for reassem-
bly, please
note where
the ground
wire is at-
tached )
2) Inverter
Board
*
The following
models need to
have the LCD
bracket removed.
2700T - 13.3”
2200T - 13.3”
D
D
D
D
I
I
I
I
D
D
