Clevo 2700T - Page 33

Service Manual
2 - 14

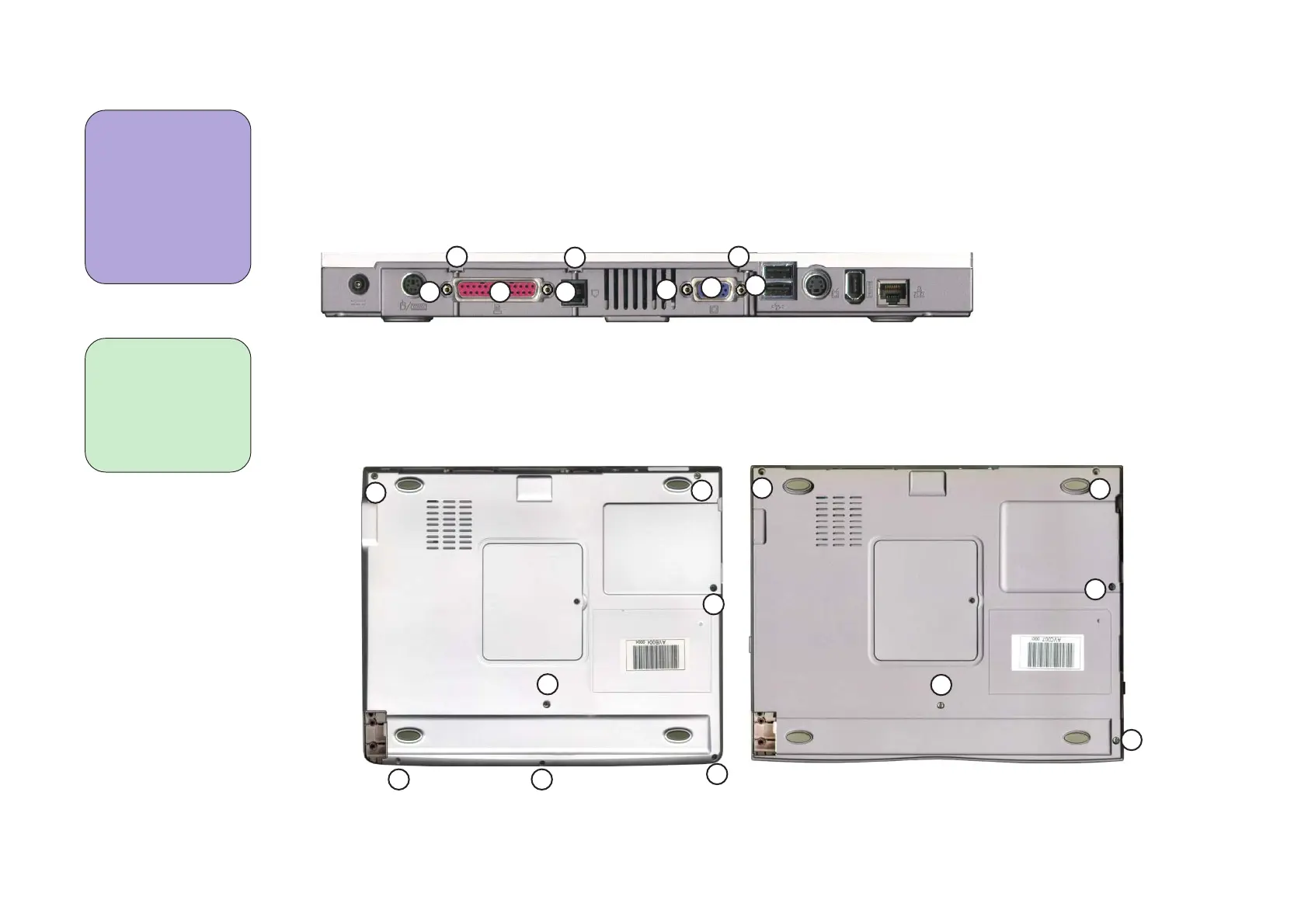

4. Remove the hex nuts (R) on the parallel port (figure 2-15).
5. Remove the hex nuts (R) on the monitor out port (figure 2-15).
6. Remove screws (D) just above the ports (figure 2-15).
figure 2-16afigure 2-16a
figure 2-15
R
R
R
R
D D
D
D
DD
K
K
K
K
J
J
J
J

1 Hex socket
wrench
4 Hex nuts
3 Screws

1) parallel port
2) monitor port
1
2
7. Remove all screws as shown in (figures 2-16).
J
