Recommended Service Clearances
Notes:
1. Allow 36" clearance for electrical panels and 30" clearance for rear service access to modules.
2. Allow a minimum of 18" height clearance for 30, 50 and 70 ton modules. Allow a minimum of 24” height clearance for 85 ton modules.
3. Local building and/or electrical codes may require additional clearance. Consult applicable codes.
CoolLogic
Control Panel
(Wall Mounted)

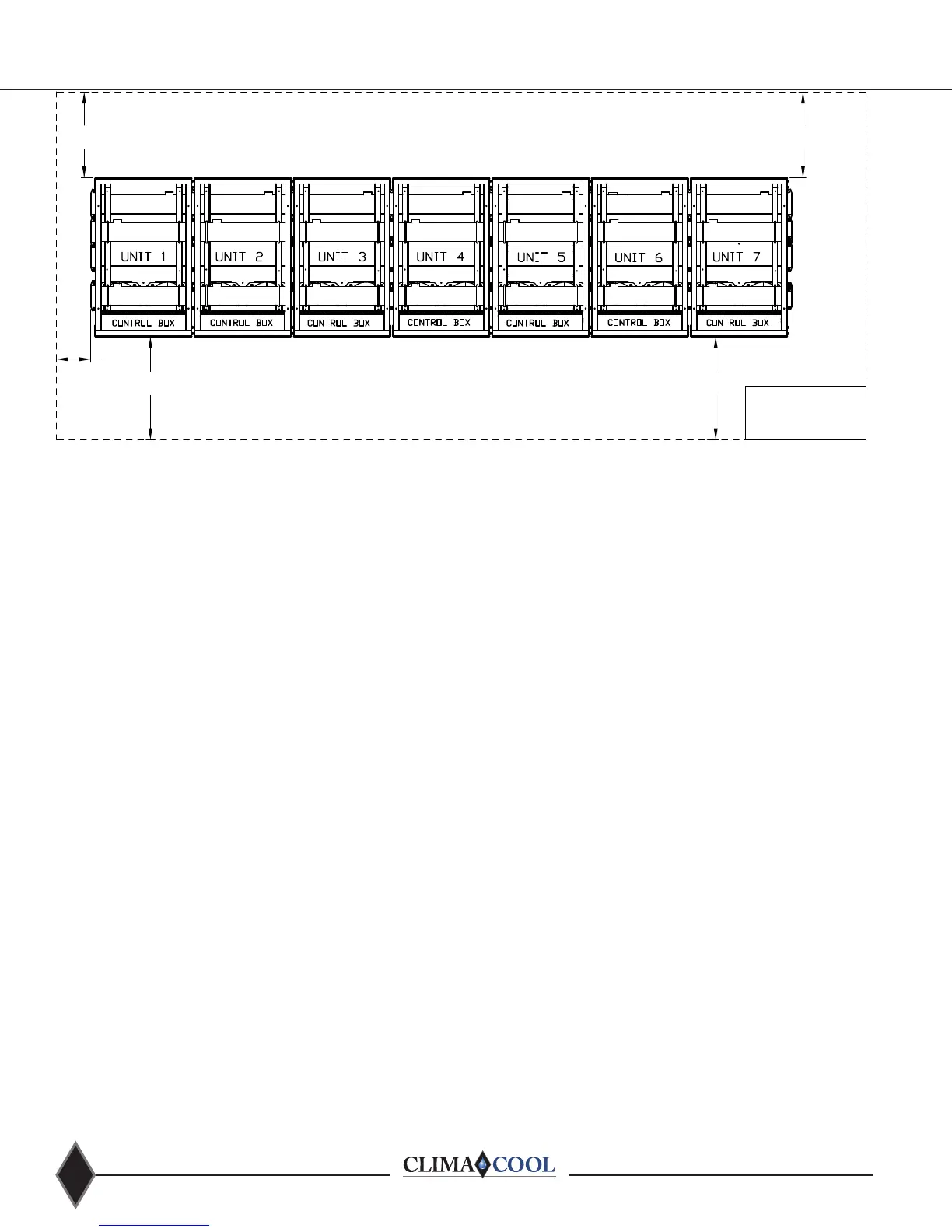

Top View
Rear Service Access
Front Service Access
36” 36”
30” 30”
12”
