ClimaCool UCW 30 - Mounting Holes

7
®
www.climacoolcorp.com
Mounting Holes

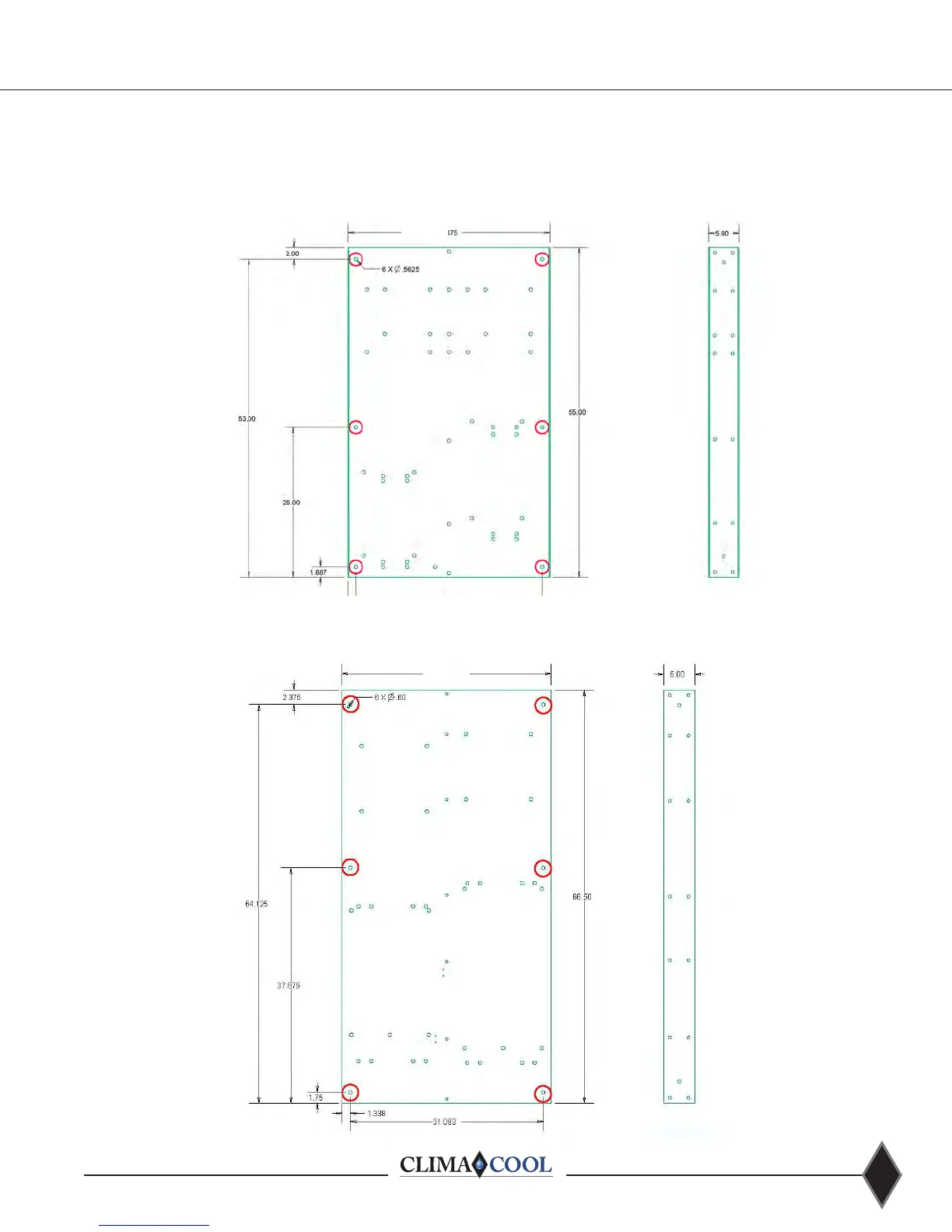

Top View of UC*085 Base Pan Shown —Front of Unit
33.675
The six mounting hole locations are circled in red.
Dimensions are shown in inches.
Top View of UC*030, 050, and 700 Base Pan Shown — Front of Unit
33.675
