Water Piping Congurations
Notes:
1. Figures 19 and 20 are required piping for proper water regulation and distribution through ClimaCool modular chillers.
water circuits.
6. A strainer with a minimum of 60 mesh stainless steel screen is a required safety to protect the brazed plate heat exchangers
on both chilled and
condenser/heating water sides of the system.
in one bank is 1,000 gpm.
bank is 2,400 gpm.
9. Bypass is mandatory for systems utilizing motorized valves.
10. Header bypass valve may be installed at either end of bank.

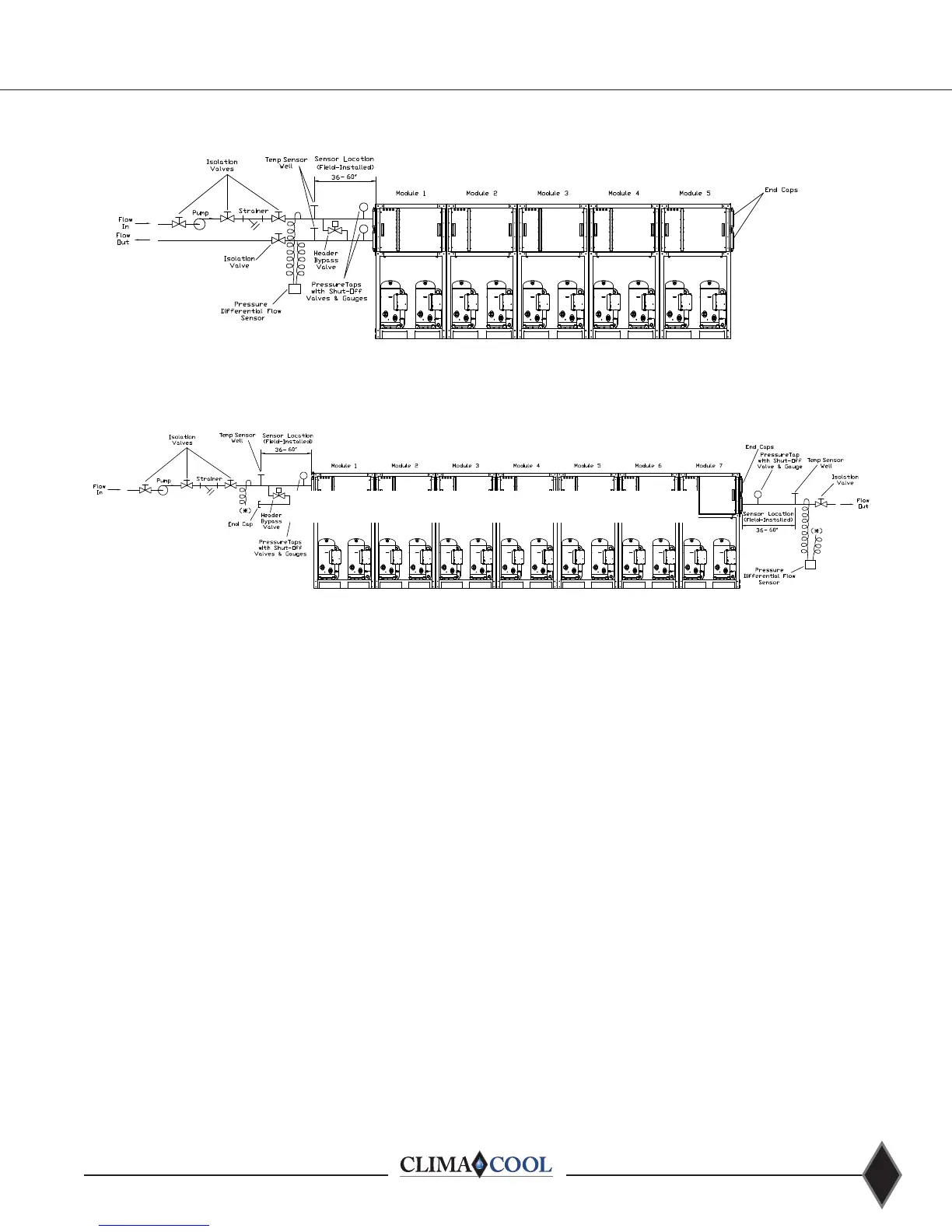

Figure 19 - Field Piping Direct Return
Figure 20 - Field Piping Reverse Return
