bolt holes provided in each base pan. Use bolts with a maximum diameter < 0.6”; length to be dependent on customer
mechanical layout. See Base Pan top view drawing on the next page.
Due to the low vibration of the modules, the application of spring isolators or pads is not required. Should isolators or
pads be desired install in accordance with Figures 4 and 5.

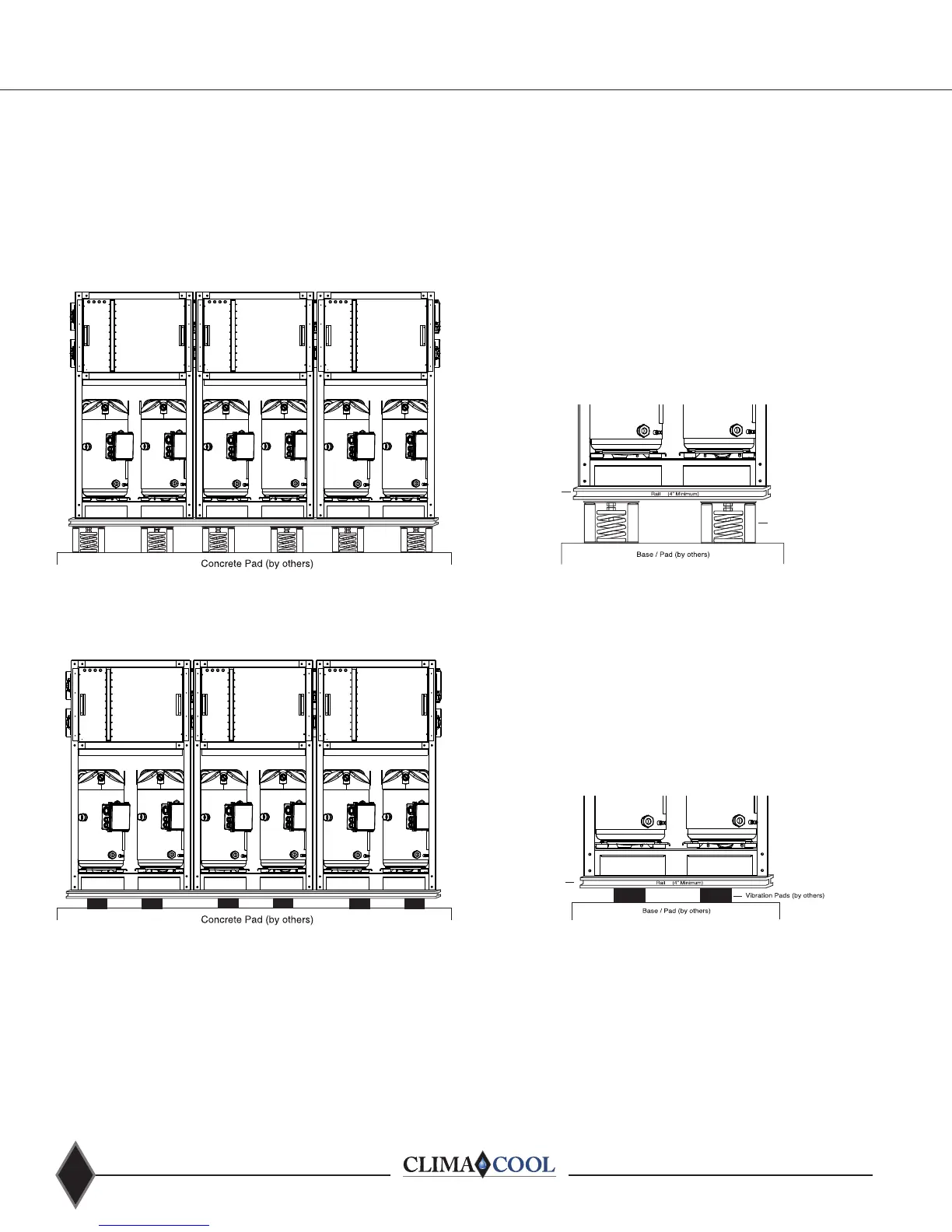

Figure 4 - Spring Vibration Isolators Option
4” Rail Minimum
Recommended
(by others)
Spring Vibration
Isolators (by others)
4” Rail Minimum
Recommended
(by others)
4” Rail Minimum
Recommended
(by others)
Spring Vibration
Isolators (by others)
4” Rail Minimum
Recommended
(by others)
Note:
Figure 5 – Vibration Isolation Pads Option
Mounting Rail and Vibration Isolation
