Rigging

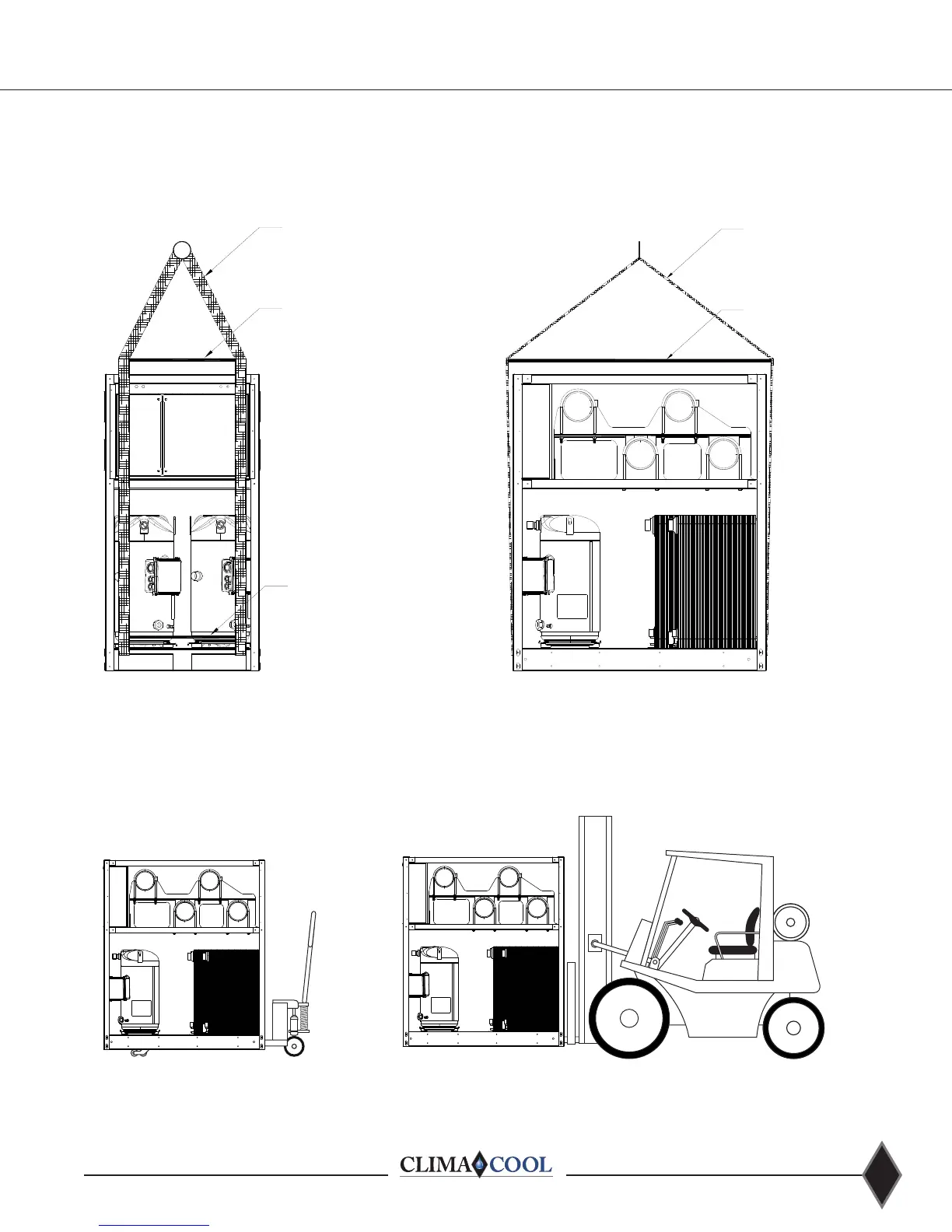

Each module should be lifted using lift straps threaded through the steel base cutouts and a spreader bar.
Note: If no spreader bar is used, damage to the module may occur.
Figure 1 Figure 2
Lifting Strap Lifting Strap
Spreader BarSpreader Bar
Spreader Bar
Figure 1 Figure 2
Figure 3
Lifting and Transporting Modules
Pallet jacks or forklifts are required for lifting and transporting the module. Each module has base cutouts provided for ease
of maneuverability. 60” forks are recommended to prevent damage to chiller base.
