Climate Wizard CW-H10 - Fitting Filters to Inlet Air Filter Frame

INSTALLATION859736-A AU1007
9
SeeleyInternationalPtyLtd
FittingtheInlet AirFilters
Whenservicingthefiltersthefrontplateofthefiltercowlingmustberemovedtoprovideaccess. Tofitthefiltersintothe
AirFilterframe,slidethebottomfilterintopositionintothebaseoftheframe.Slidethesidefilter(s)intotheframeinthe
samemanner. Tofitthefrontfilter,locatethetopedgeofthefilterunderthetopbracketsandlifttoengagethefilterinside
them. Allowthefiltertodrop,toengagethe2bottombracketsatthebottomoftheframe.
The AirFiltersshouldbereplacedassoonasairflowthroughthefiltersisrestrictedbychokingorcloggingwithdustor
contaminants. Thefrequencyofchangingthefilterisdependantontheairqualityinsitu.
ReplacementInlet AirFiltersareavailablefromSIService AgentsandClimateWizarddistributors.

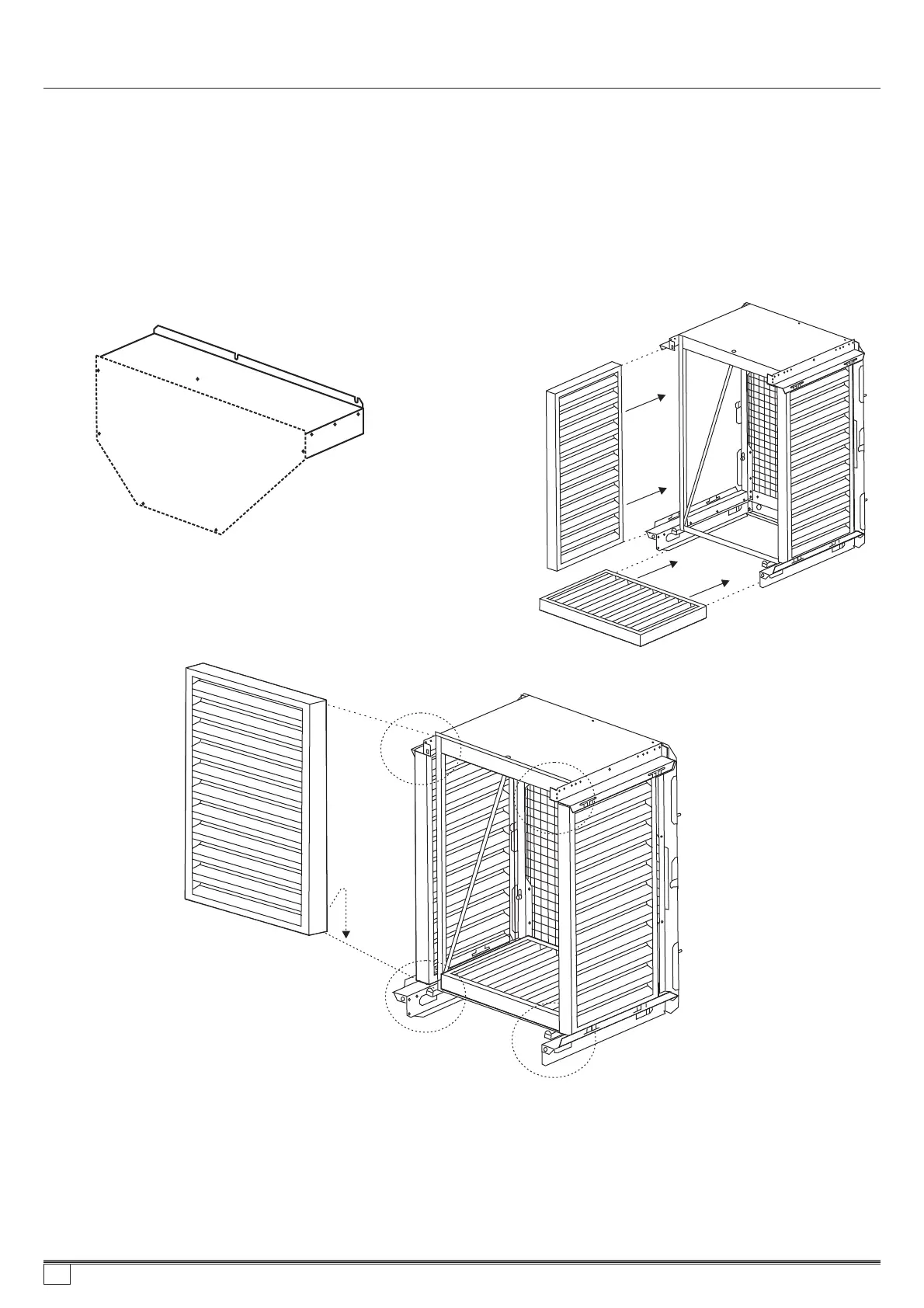

Removescrewstodismantlethe
frontsectionofthefiltercowling,
thelidandsidesofthecowling
remainattachedtothecooler.
Filtersslideintoframechannels
Tofitthefrontfilter,locatethetopedgeofthefilterunderthetopbracketsandlifttoengagethefilter
insidethem. Allowthefiltertodrop,toengagethe2bottombracketsatthebottomoftheframe.
