Climate Wizard CW-H10 - Electrical and Water Supply Installation

10
SeeleyInternationalPtyLtd
INSTALLATION
ElectricalSupplyInstallation
InstallationoftheCoolermustconformtolocalelectricalrules,regulationsandstandards.
*
It is a requirement of Seeley International that all Coolers be wired with a dedicated circuit to the distribution board.
Disconnection from the mains supply may be achieved by incorporating a switch in the fixed wiring in accordance with the local
wiring rules. Specification : 380 - 480V / 50 or 60Hz / 3 Phase / 10Amps
Climate Wizard requires 3-phase electrical power to be supplied. Minimum 10 amp, 4-wire+ ground conductors supplied from
an independent circuit breaker. If required, a main isolation switch is to be furnished by the contractor adjacent to the cooler.
Main power terminals are provided inside the electrical cabinet with glands provided for cable entry.

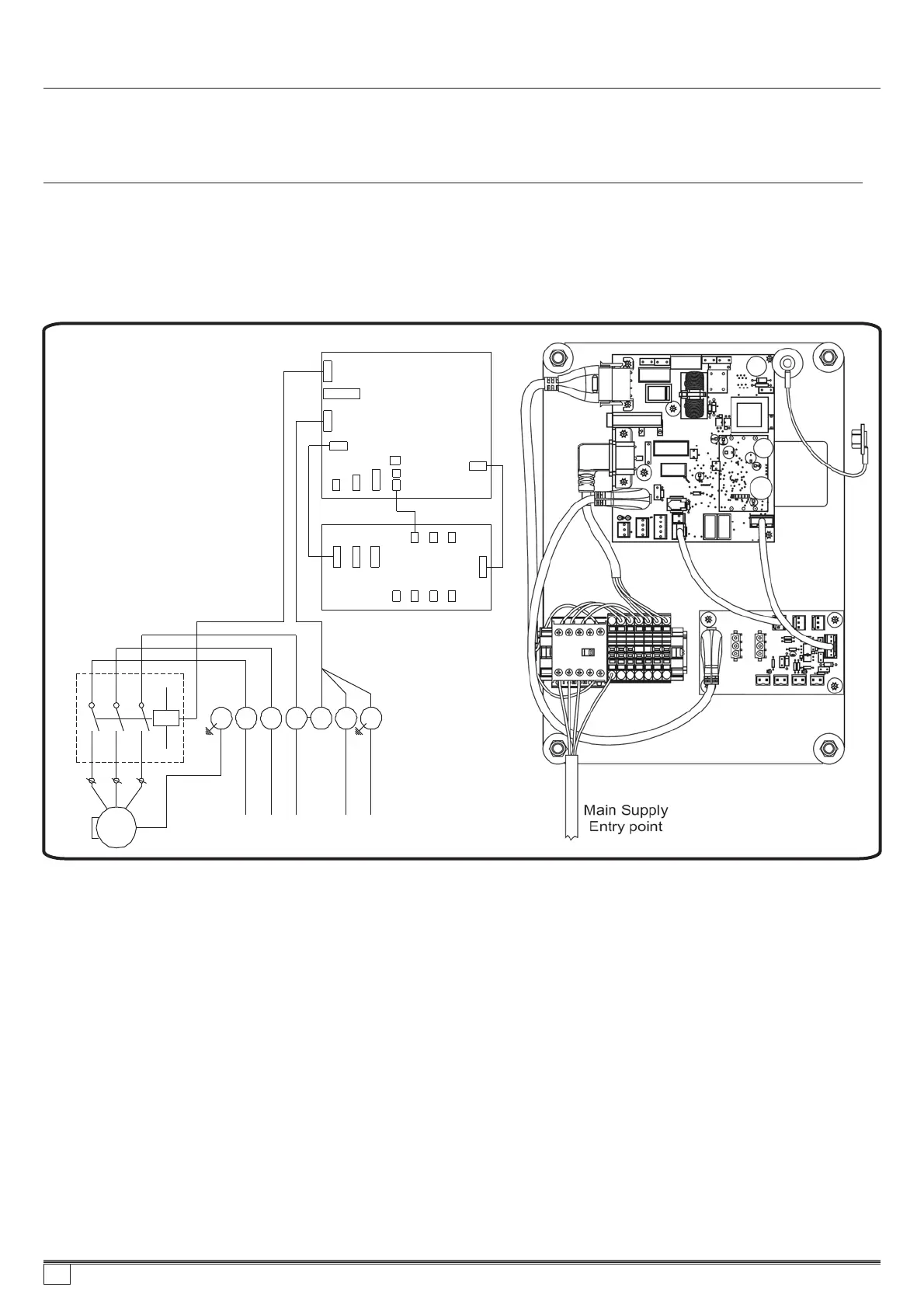

1 2 3 4 5 6
L1 L2 L3 N
MAINSUPPLY
MAINP.C.B.
1
2
3
4
5
6
7
8
9
10
FAN CONTACTOR
INTERFACEP.C.B.
11
4
14 15 16 17
10
11
E
1 3 5 A1
2 4 6 A2
bl
br
FAN
12 12
13 13
br bl
7
*50&60Hzmodelsrequiredifferingcomponentconfigurationsthatvaryaccordingtothesupplyfrequency.
Specifically,thepumpisuniquetothefrequencyofsupply.
3POWERIN
6SALINITY PROBE
7MOTORCONTROL SIGNAL
9WATERINLETSOLENOID
10CHLORINATORLINK
8WALL CONTROL
1MOTORCONTACTORCOIL
4PUMP LINK
2FUSET15A
5DRAINVALVE
11INTERFACEBOARDLINK
12PUMP X2
13CHLORINATORX2
14COOL/VENTINPUT
15ERRORSIGNAL OUTPUT
16REMOTEON/OFFINPUT
17FANSPEEDINPUT0-10Vdc
859736-A AU1007
