Climate Wizard CW-H10 - Water Supply Installation

11
SeeleyInternationalPtyLtd
INSTALLATION
Installation of the water supply to the cooler must conform to local plumbing rules, regulations and standards:
The following specifications for water supply are required:
The installer must provide a manual 1/4 turn ball type shut off valve (do not use a stop cock) in the water supply line adjacent to
the cooler, subject to local plumbing regulations. This allows the water supply to be isolated whenever work needs to be done
on the cooler.
Climate Wizard requires a permanent water supply to be connected. 1/2 inch BSP male connection point provided on the
cooler (see diagram), suitable for compression fitting. Pressure range required - 100 kPa - 800kPa at flow rate of 20 L/min.
Water Connections : ½” BSP Female threaded fitting required
Water Supply :100 - 800 kPa @ 20L/min (115 psi) MAXIMUM
Water Supply Temperature : 40°C MAXIMUM
Important
Important
!
In areas subject to freezing, the water line needs a drain down facility.
!
If the water pressure exceeds this maximum specification then a pressure reducing valve is required and
must be supplied and fitted by the installer.
Flush the water pipe to remove any swarf before final fitting. Swarf can lodge in the solenoid , preventing
it from functioning correctly.

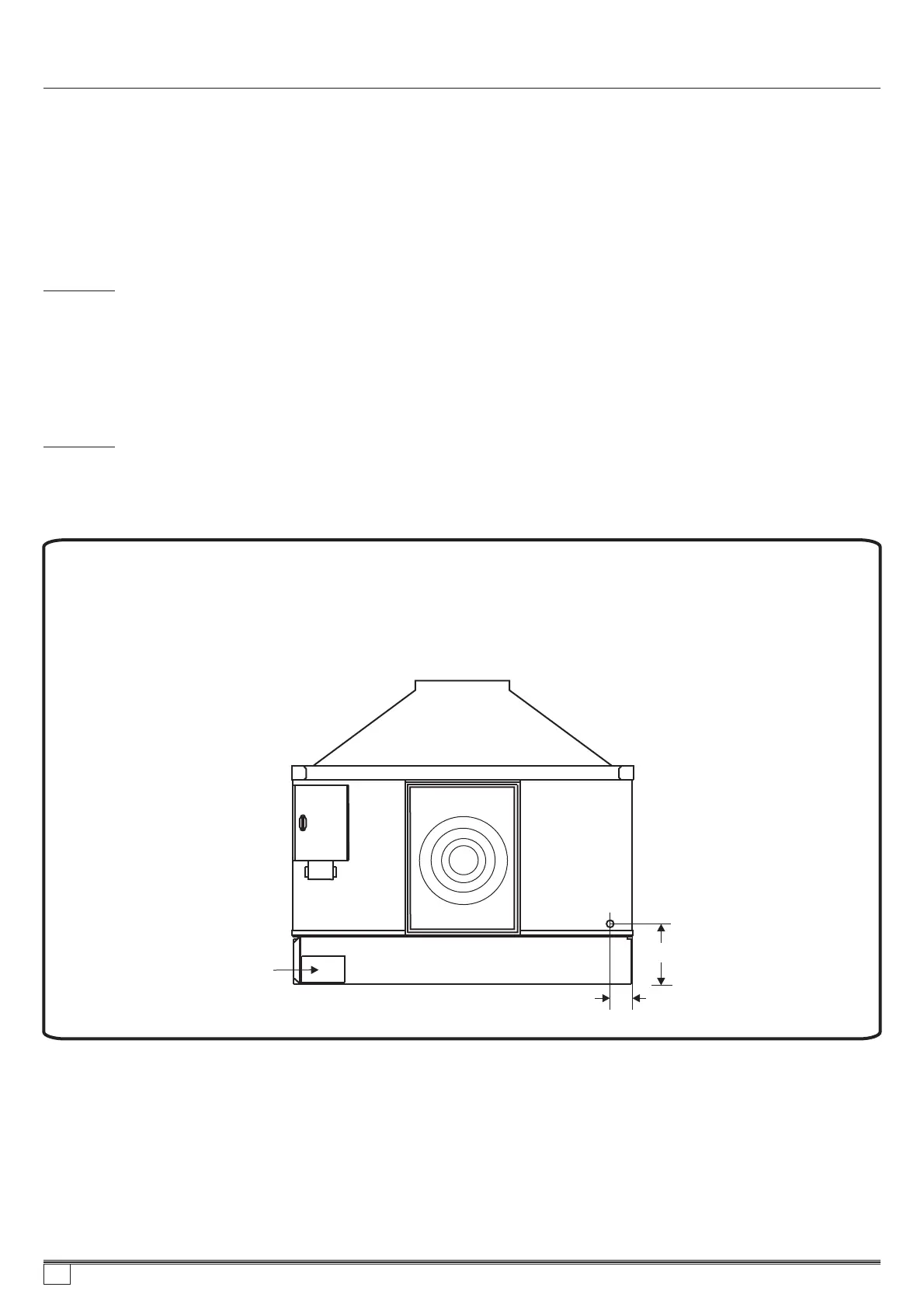

WaterSupplyInstallation
ACCESSCOVER
FORDRAINVALVE
CONNECTION
WATERCONNECTION
1/2”BSP MALENIPPLE
(Waterconnectionmay
requireanadaptorto
suitlocalpipesizes)
319
130
DONOTOVER-TIGHTEN
ORCROSS-THREAD
COMPRESSIONFITTINGS
ONTOTHEPLASTIC
WATERINLETNIPPLE.
REARVIEW
859736-A AU1007
