CLIVET WDAT-SL3 FC Series User Manual

FCI conguration (No-glycol FREE-COOLING)
Size 220.2 - 240.2 - 260.2 - Acoustic conguration: compressor soundproong (SC)
Size 200.2 - 210.2 - 220.2 - Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
220.2 240.2 260.2 200.2 210.2 220.2
H (without Axitop) mm 2484 2484 2484 2510 2510 2510
I mm------
J mm------
K mm------
L mm------
OD (water ttings diameter) 6’’ 6’’ 6’’ 6’’ 6’’ 6’’
A - Length mm 7253 7253 7253 7253 7253 7253
B - Depth mm 2246 2246 2246 2246 2246 2246
C - Height mm 2668 2668 2668 2668 2668 2668
W1 Supporting point kg 1137 1138 1155 1106 1113 1137
W2 Supporting point kg 1323 1324 1332 1301 1305 1323
W3 Supporting point kg 678 678 682 673 675 678
W4 Supporting point kg 1032 1045 1055 1021 1026 1032
W5 Supporting point kg 1088 1089 1119 1059 1070 1088
W6 Supporting point kg 1266 1267 1291 1246 1255 1266
W7 Supporting point kg 658 658 661 652
655 658
W8 Supporting point kg 1001 1014 1023 991 995 1001
Shipping weight kg 7747 7771 7869 7620 7661 7747
Operating weight kg 8183 8213 8318 8049 8094 8183

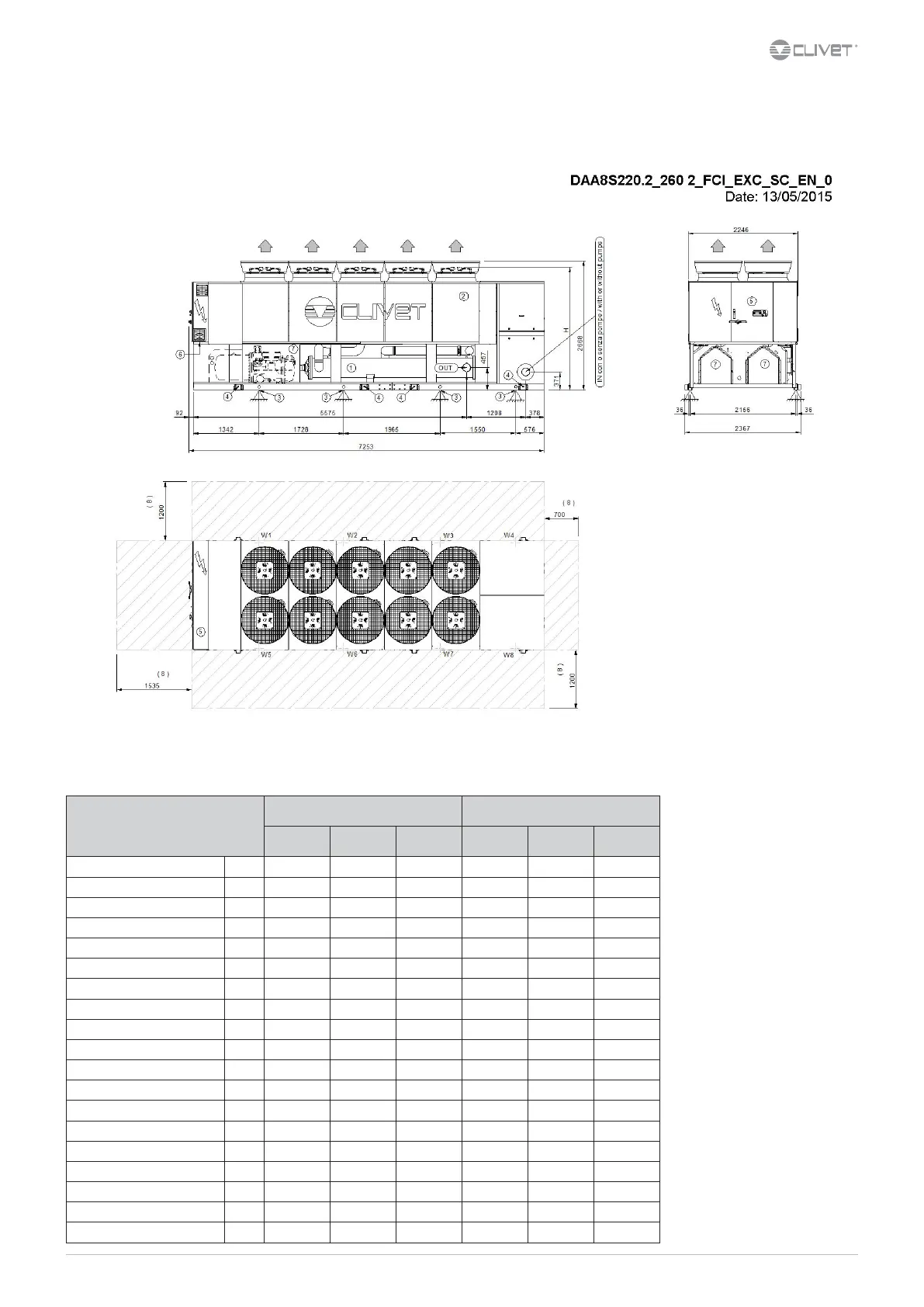

1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Sound proof enclosure ( only in the relevant versions)
8. Clearance access recommended
The presence of optional accessories may
result in a substantial variation of the
weights shown in the table. Fan diusers
are separately supplied.
Shipping weight referred to unit with
glycol solution. For the unit weight
without glycol solution please refer to the
appropriate technical bulletin table.


CLIVET WDAT-SL3 FC Series Specifications
