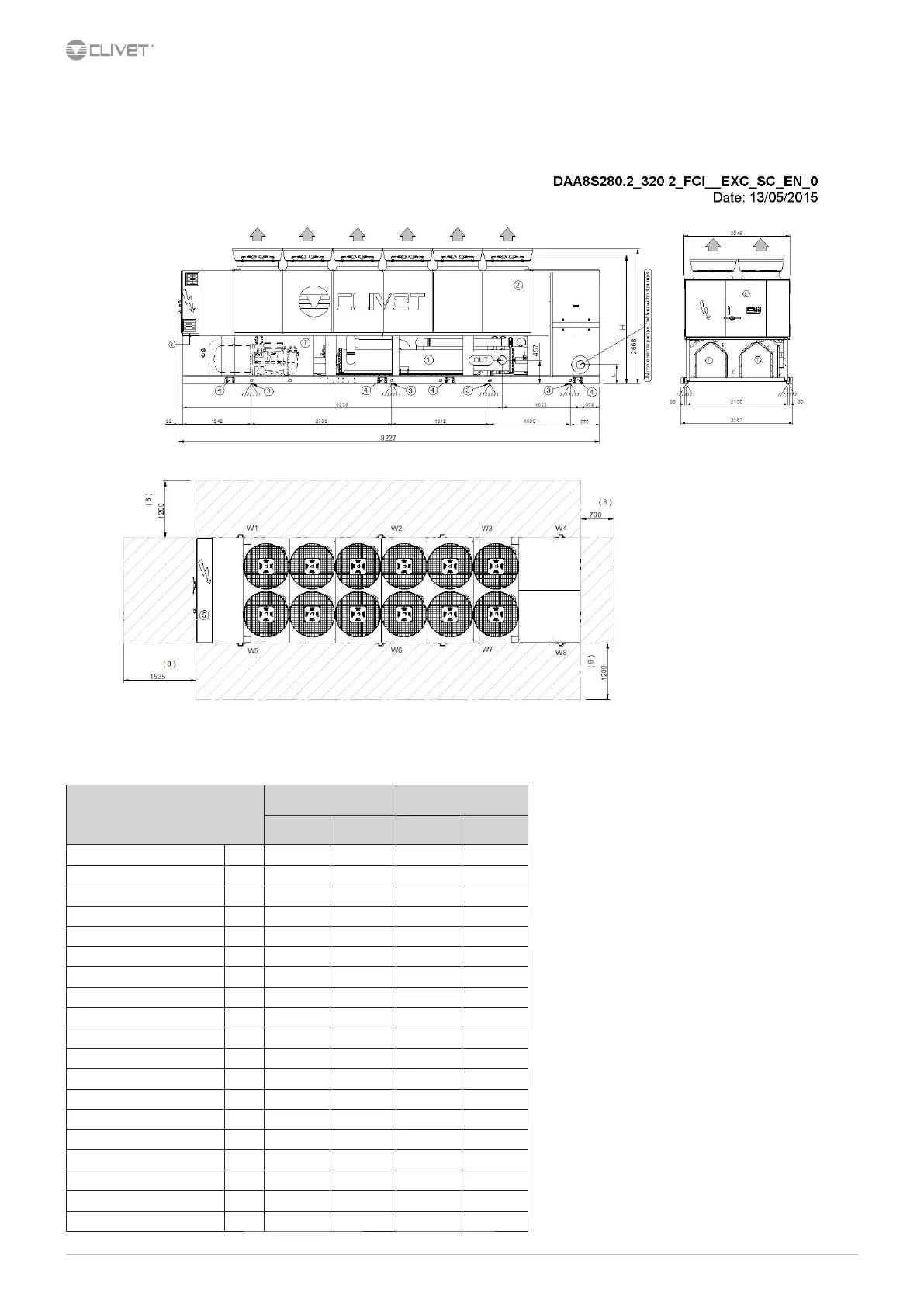

FCI conguration (No-glycol FREE-COOLING)
Size 280.2 - 320.2 Acoustic conguration: compressor soundproong (SC)
Size 240.2 - 260.2
Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
280.2 320.2 240.2 260.2
H (without Axitop) mm 2484 2484 2510 2510
I mm----
J mm----
K mm----
L mm 333 333 371 371
OD (water ttings diameter) mm 6’’ 6’’ 6’’ 6’’
A - Length mm 8227 8227 8227 8227
B - Depth mm 2246 2246 2246 2246
C - Height mm 2668 2668 2668 2668
W1 Supporting point kg 1695 1701 1635 1645
W2 Supporting point kg 961 970 928 942
W3 Supporting point kg 834 835 839 839
W4 Supporting point kg 1241 1258 1171 1182
W5 Supporting point kg 1628 1645 1573 1601
W6 Supporting point kg 923 939 893 917
W7 Supporting point kg 809 811 814 814
W8 Supporting point kg 1205 1222 1136 1147
Shipping weight kg 8826 8906 8520 8613
Operating weight kg 9296 9381 8989 9087
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Sound proof enclosure ( only in the relevant versions)
8. Clearance access recommended
The presence of optional accessories may result in a substantial variation
of the weights shown in the table. Fan diusers are separately supplied.
Shipping weight referred to unit with glycol solution. For the unit
weight without glycol solution please refer to the appropriate technical
bulletin table.
