CLIVET WDAT-SL3 FC Series User Manual

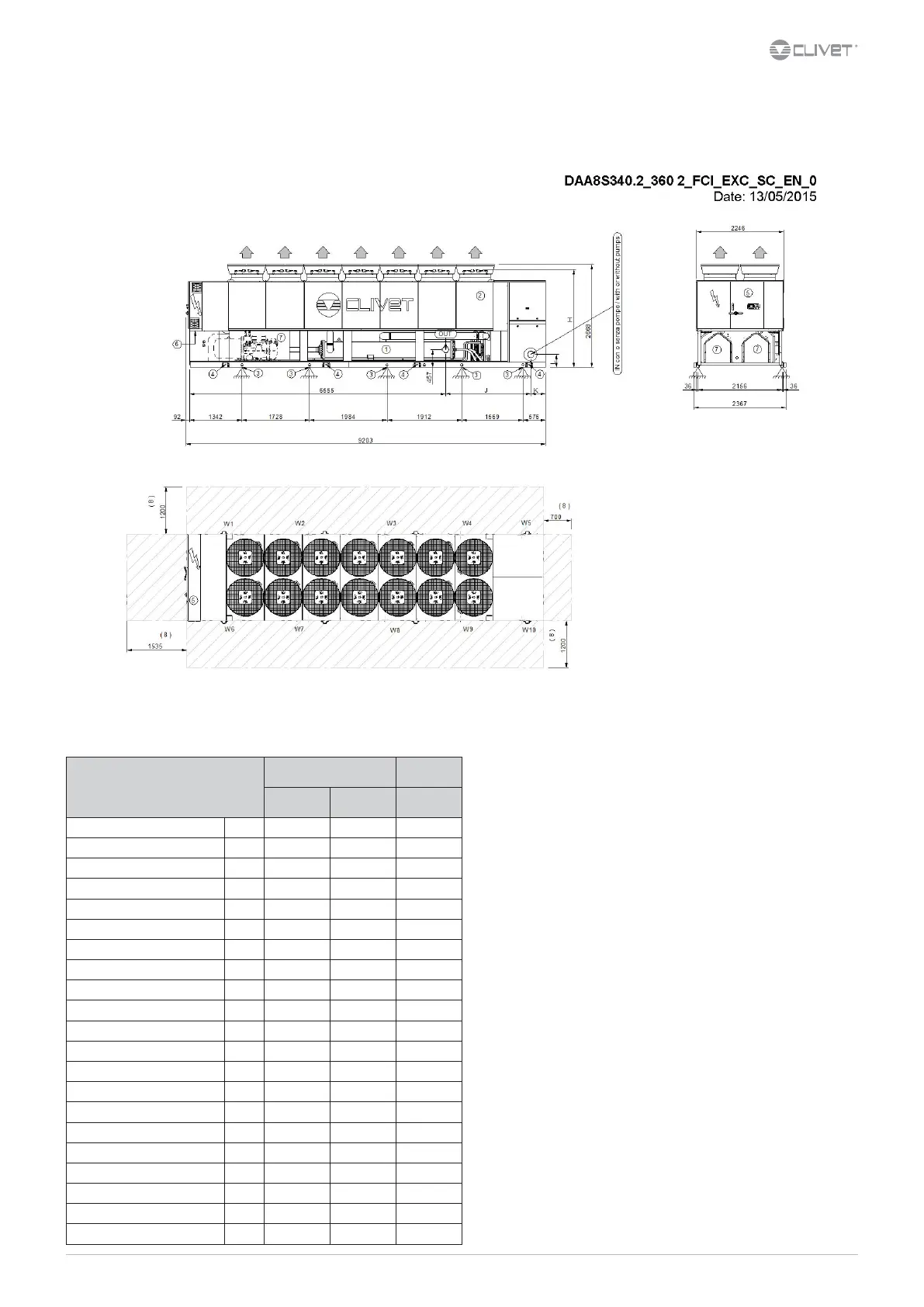

FCI conguration (No-glycol FREE-COOLING)
Size 340.2 - 360.2 Acoustic conguration: compressor soundproong (SC)
Size
280.2 - Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
340.2 360.2 280.2
H (without Axitop) mm 2484 2484 2510
I mm---
J mm 1977 1977 2178
K mm 579 579 378
L mm 351 351 333
OD (water ttings diameter) 6’’ 6’’ 6’’
A - Length mm 9203 9203 9203
B - Depth mm 2246 2246 2246
C - Height mm 2668 2668 2668
W1 Supporting point kg 2072 2272 2029
W2 Supporting point kg 545 605 531
W3 Supporting point kg 1186 1181 1181
W4 Supporting point kg 609 618 602
W5 Supporting point kg 1157 1179 1050
W6 Supporting point kg 2001 2184 1961
W7 Supporting point kg 524 579 511
W8 Supporting point kg 1191 1186 1185
W9 Supporting point kg 607 617 601
W10 Supporting point kg 1157 1179 1050
Shipping weight kg 10508 11049 10212
Operating weight kg 11049 11600 10701
.
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brack
ets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Sound proof enclosure ( only in the relevant versions)
8. Clearanc
e access recommended
The presence of optional accessories may result in a substantial variation of the weights
shown in the table. Fan diusers are separately supplied.
Shipping weight referred to unit with glycol solution. For the unit weight without
glycol solution please refer to the appropriate technical bulletin table.

