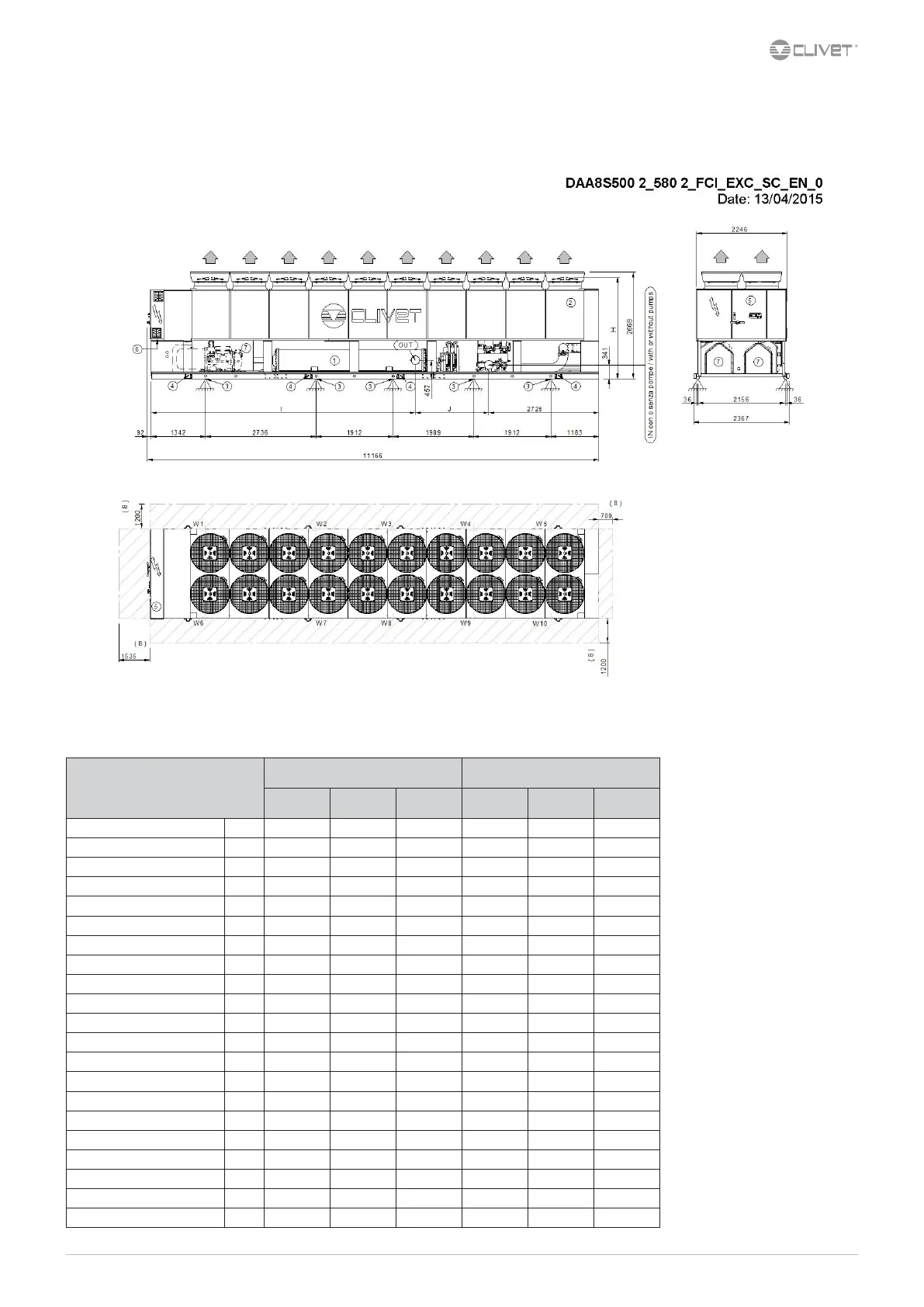

CLIVET WDAT-SL3 FC Series User Manual

FCI conguration (No-glycol FREE-COOLING)
Size 500.2 - 540.2 - 580.2 Acoustic conguration: compressor soundproong (SC)
Size 400.2 - 440.2 - 500.2 Acoustic conguration: super-silenced (EN)
Size
SC-EXC EN-EXC
500.2 540.2 580.2 400.2 440.2 500.2
H (without Axitop) mm 2484 2484 2484 2510 2510 2510
I mm 6537 6537 6537 6237 6237 6537
J mm 1812 1812 1812 2112 2112 1812
K mm------
L mm------
OD (water ttings diameter) 8’’ 8’’ 8’’ 8’’ 8’’ 8’’
A - Length mm 11166 11166 11166 11166 11166 11166
B - Depth mm 2246 2246 2246 2246 2246 2246
C - Height mm 2668 2668 2668 2668 2668 2668
W1 Supporting point kg 2530 2585 2612 2484 2502 2530
W2 Supporting point kg 1390 1403 1411 1115 1125 1390
W3 Supporting point kg 1089 1084 1079 1272 1275 1089
W4 Supporting point kg 947 968 993 894 920 947
W5 Supporting point kg 1220 1226 1231 1196 1208 1220
W6 Supporting point kg 2431 2481 2506 2389 2406 2431
W7 Supporting point kg 1369 1382 1389 1095
1105 1369
W8 Supporting point kg 1097 1092 1088 1280 1282 1097
W9 Supporting point kg 945 966 991 893 918 945
W10 Supporting point kg 1220 1226 1232 1196 1208 1220
Shipping weight kg 13353 13519 13627 12993 13117 13353
Operating weight kg 14238 14413 14532 13814 13949 14238
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after the unit positioning)
5. Electrical panel
6. Power input
7. Sound proof enclosure ( only in the relevant versions)
8. Clearance access recommended
The presence of optional accessories may
result in a substantial variation of the
weights shown in the table. Fan diusers
are separately supplied.
Shipping weight referred to unit with
glycol solution. For the unit weight
without glycol solution please refer to the
appropriate technical bulletin table.

