Compact controller ER 2022S and ER 2022SA
www.clori uscontrols.com
24 of 69

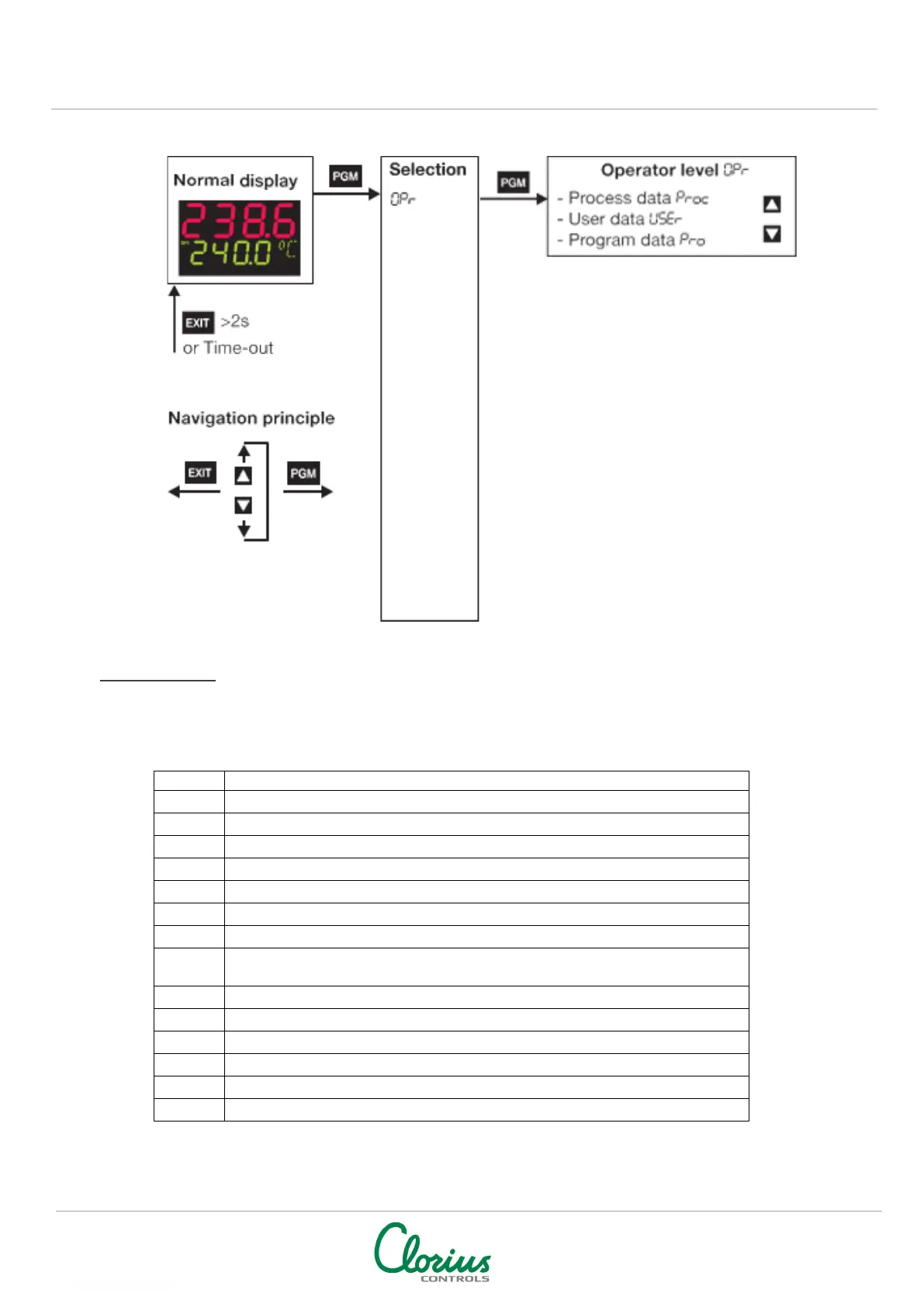

Access
Process data
The four setpoints displayed and edited according to below information.
and additional process variables are shown in accordance with the configuration.
Symbol
Meaning
SP 1
Setpoint 1 (editable)
SP 2
Setpoint 2 (editable)
SP 3
Setpoint 3 (editable)
SP 4
Setpoint 4 (editable)
SPr
Ramp setpoint (only if configured)
InP1
Measurement of analog input 1
InP2
Measurement of analog input 2 (only if available)
F1
Calculated result of math formula 1
(and for difference, ratio and humidity controller)
F2
Calculated result of math formula 2 (only if available)
y
Controller output
trun
Program run time (only with program controller/generator)
trES
Residual program time (only with program controller/generator)
t1
Timer run time 1 (only if configured)
t2
Timer run time 2 (only if configured)
