Compact controller ER 2022S and ER 2022SA
www.clori uscontrols.com
25 of 69
Access

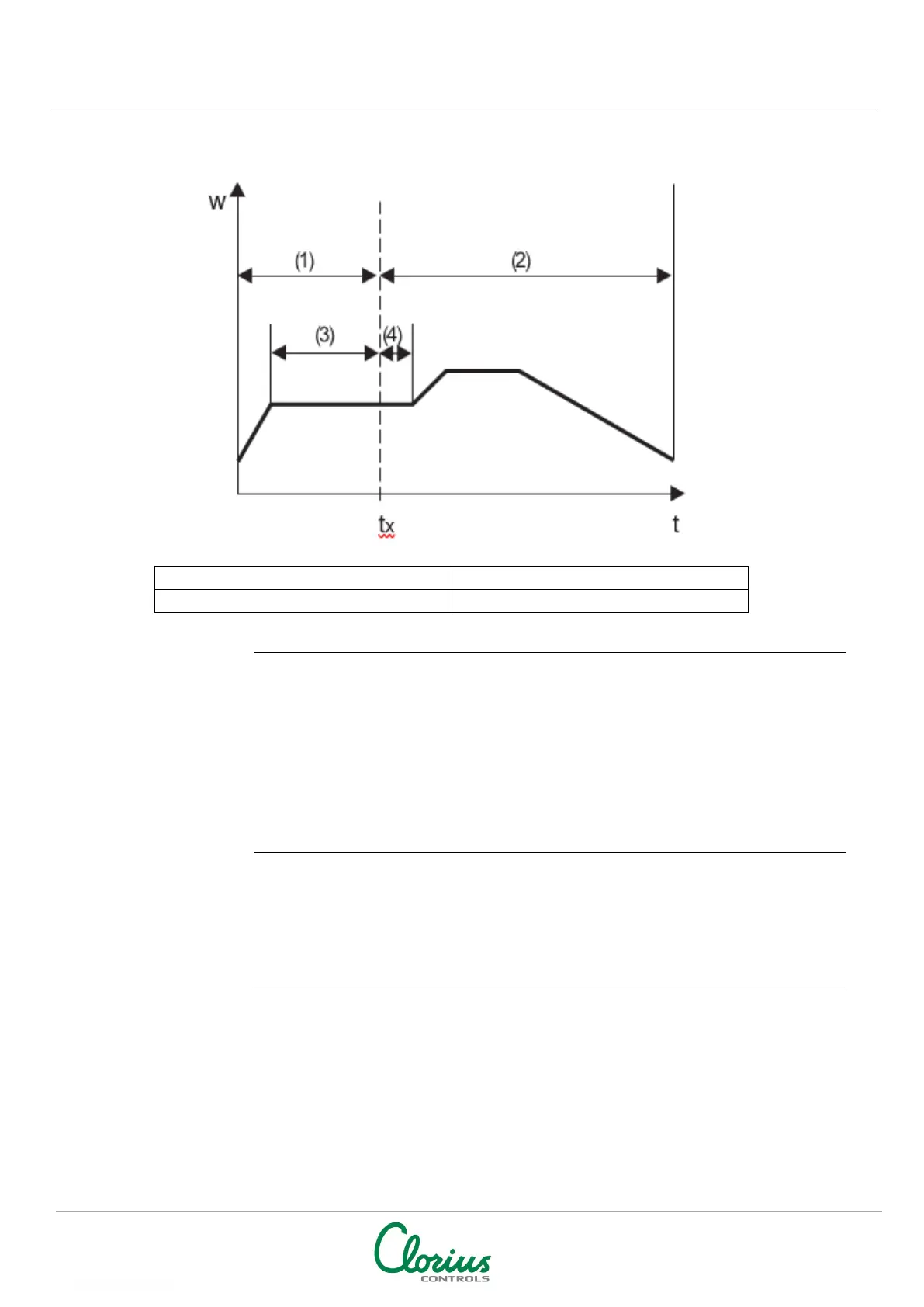

(1) Program run time
(3) Segment run time
(2) Residual program time
(4) Residual segment time
User data
“USER”
Any numbers of parameters (up to eight) can be displayed and edited here
using the setup program.
v Setup/Configuration Leve/Display – Operation/ User data
The user himself can assign the symbol that is to be displayed for each
parameter.
otherwise the standard symbol is used. Any letter and numbers are
permitted that can be displayed in a 7-segment display
Program data
“Pro”
A program with up to eight segments is defined here, via the segments set
points SSP1…. And SSP8 and segments tP 1….tP8
This can only be accessed when the instrument is configured as a program
controller generator
