Clorius Controls ER 2022S - Page 26

Compact controller ER 2022S and ER 2022SA
www.clori uscontrols.com
26 of 69
General Two parameter sets (PAr1 and PAr2) can be stored.

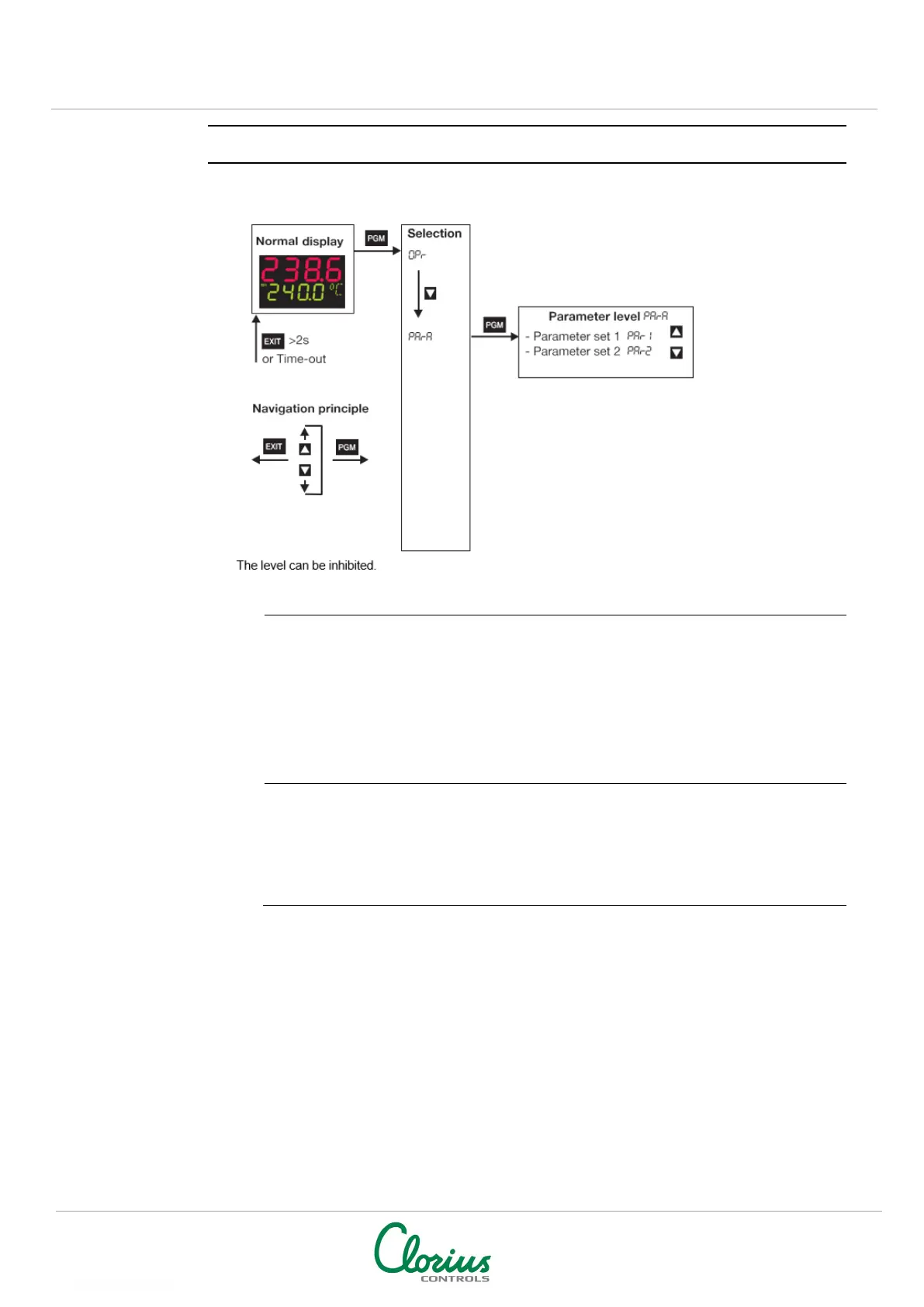

Access
Applications
-Parameter set switching via binary function
Chapter 8.6 Binary functions “binF”
Allocating parameter sets to program segments (only through the setup
program)
v Program editor/Program
Example
Setting a 2-state controller with
Pb1=12°C (proportional band)
rt=160sec (reset time; I
component) dt=0sec
(derivative time, D component)
