Compact controller ER 2022S and ER 2022SA
www.clori uscontrols.com
32 of 69
8. Configuration
8.1 Analog inputs ”Inp”
Analog inputs (general (In 12 →)
Symbol
Value/selection
Description
Temperature
unit
UNIT
0
1
deg. Celsius
deg. Fahrenheit
Unit for temperature valves
Sampling
cycle unit
CycL
0
1
2
3
50msec
90msec
150msec
250msec
Supply
frequency
(set up)
50 Hz
60 Hz
Adaptation of the conversion time of the
input circuitry to the supply frequency
NOTE: Factory settings shown with BOLD text

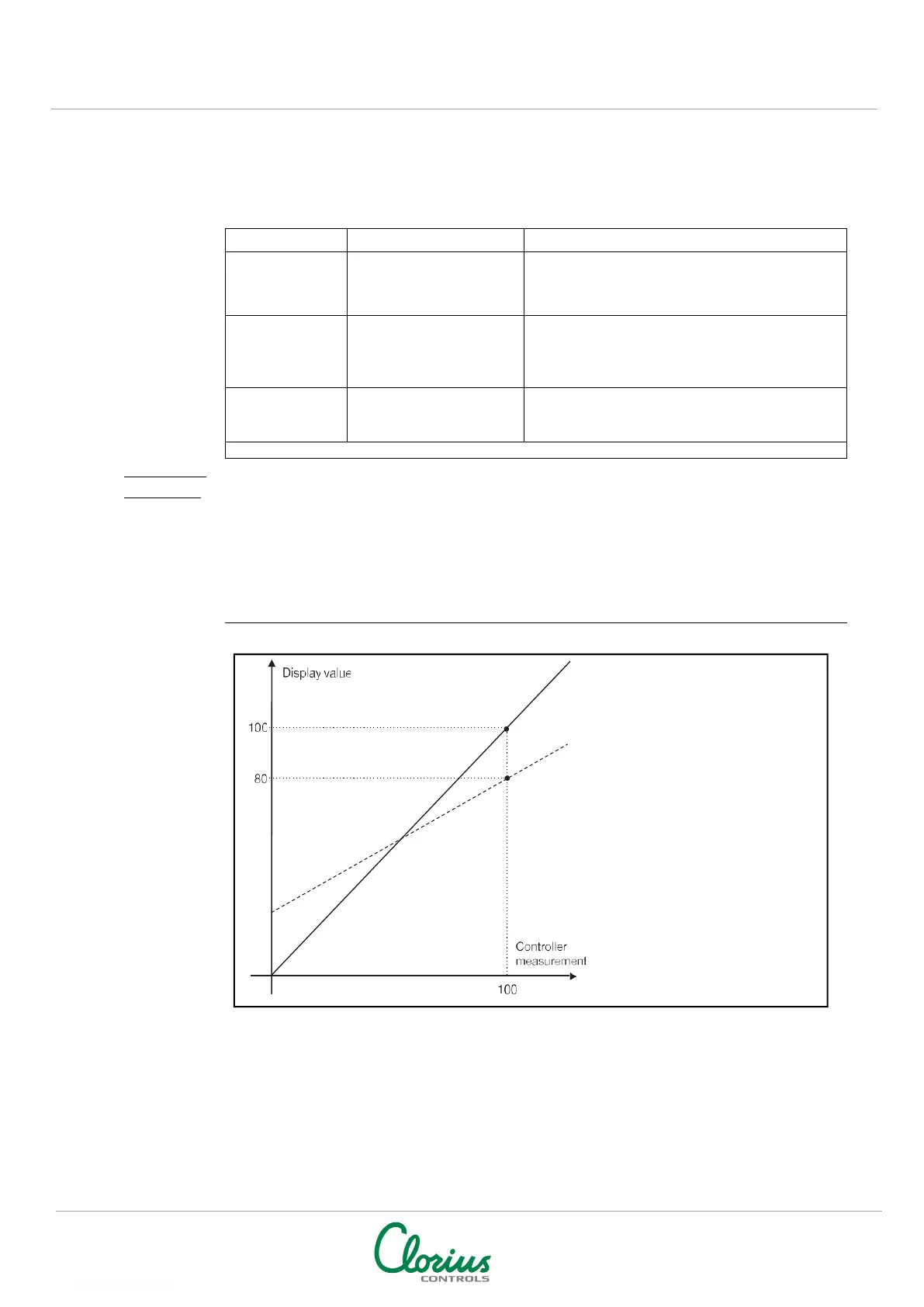

Customized
fine tuning
A signal is processed electronically (conversion, linearization …) to produce a measured
value via the analog inputs of the controller. This measured value enters into the
calculations of the controller and can be visualized in the displays (measured value =
displayed value).
This fixed relationship can be modified if required, i.e., the position and the slope of
the measurement characteristic can be altered.
